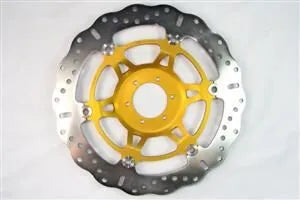

EBC Contour X Series Front Brake Rotor - 310mm - Floating - MD1120XC
Product info
- Item number
- 17102561
- Manufacturer number
- MD1120XC
- Position
The EBC Contour X Series Brake Rotor is an ultra-lightweight, high-performance upgrade for modern sport bikes. Featuring a patented S-Drive button system, this floating front rotor offers exceptional braking performance and reliability.
Description
EBC Brakes' X series floating front rotors have earned a reputation as some of the best-selling, lightest, and highest-performing discs available. These rotors utilize EBC's patented S-Drive button system, which employs square-sided rivets in square drive pockets on both the rotor and hub. This innovative design allows the outer rotor blade to expand and contract freely under intense braking heat, preventing rivet lock and maintaining consistent performance. Each rotor is hand-built and meticulously inspected to ensure the highest quality. The weight-reducing, contoured profile of the XC discs further enhances performance. Upgrade your braking system with the EBC Contour X Series for improved stopping power and control.
Features & highlights
- Experience superior braking performance with the ultra-lightweight EBC X series floating front rotor.
- Enjoy consistent braking power thanks to the patented S-Drive button system that prevents rivet lock.
- Benefit from the durability and reliability of hand-built and inspected rotors.
- Improve your bike's handling with the weight-reducing contoured profile.
- Upgrade from OEM with these high-performance XC series brake rotors.
Technical specifications
- Fits Front
- Brand: EBC
- Product Name: Brake Rotor
- Type: Two Piece (Floating)
- Shape: Contour
- Outside Diameter: 310 mm
- Inside Diameter: 58.20 mm (2.29")
- Thickness: 5.0 mm
- Bolt Pattern: 6 Hole
- Bolt Hole Circle: 74.0 mm
- Braking Surface: Dimpled, Slotted
- Material: Aluminum Alloy, Stainless Steel
- Color/Finish: Gold, Silver
Important to know
No specific requirements or limitations were provided for this product.
- Brand
- EBC
- Vendor part number
- MD1120XC
- Color finish
- Gold, Silver
- Product name
- Brake Rotor
- Shape
- Contour
- Thickness
- 5,0 mm
- Outside diameter
- 310 mm
- Inside diameter
- 58,20 mm (2,29")
- Material
- Aluminum Alloy, Stainless Steel
- Type
- Two Piece (Floating)
- Units
- Each
- Braking surface
- Dimpled, Slotted
- Bolt hole circle
- 74,0 mm
- Bolt pattern
- 6 Hole
