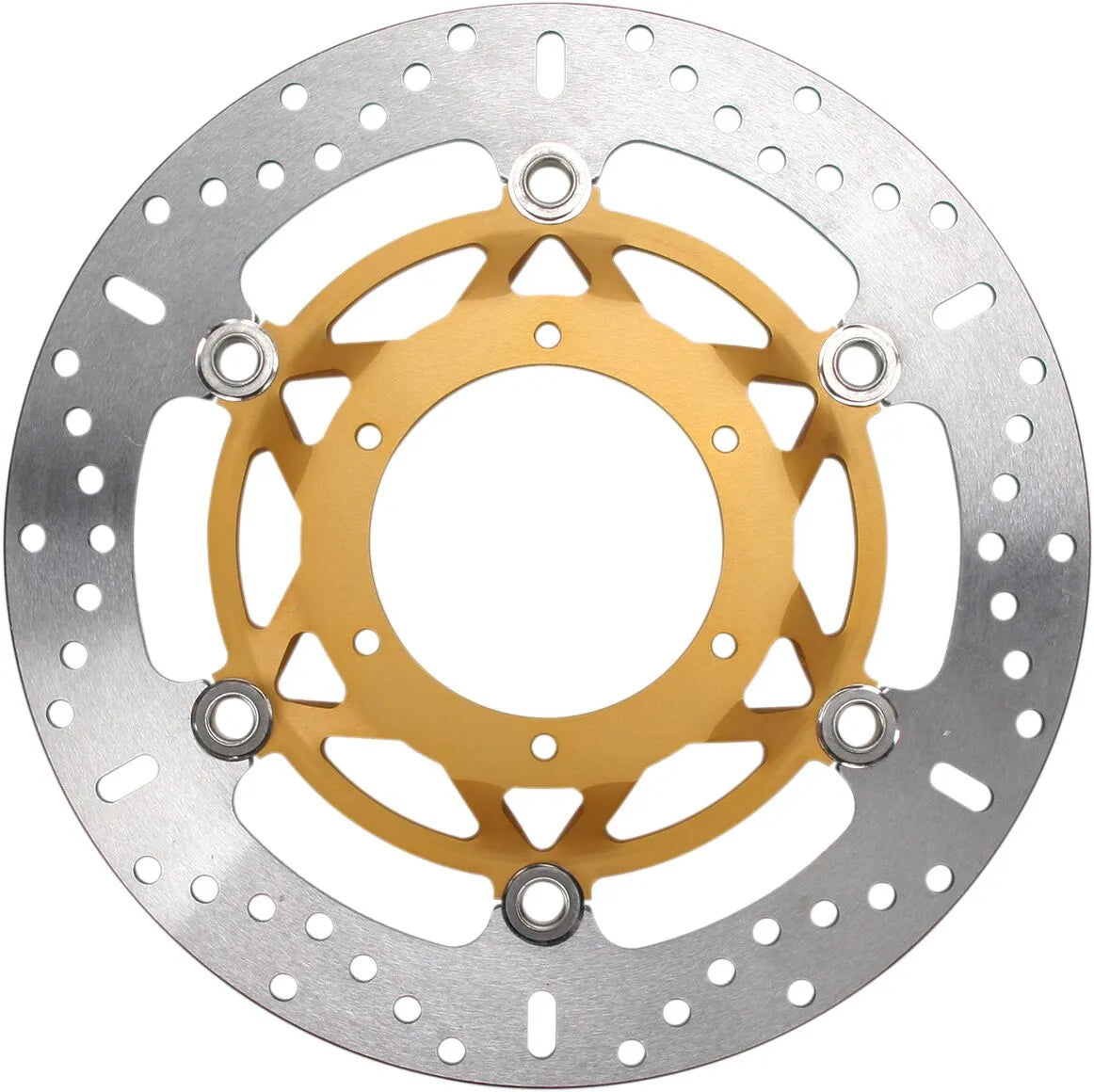

EBC X-Series Front Brake Rotor - 310mm - Floating - Gold - MD1120X

Upgrade your sport bike's braking performance with the EBC X-Series Brake Rotor. This ultra-lightweight, floating front rotor provides superior stopping power and heat dissipation, making it a top choice for modern sport bikes. Experience enhanced control and confidence on the road or track.

Description

The EBC Brakes X-Series floating front brake rotors have become renowned for their exceptional performance and lightweight design. These rotors feature EBC's patented S-Drive button system, which utilizes square-sided rivets in square drive pockets on the rotor and hub. This innovative design allows the outer rotor blade to expand and contract freely under braking heat, preventing rivet lock and maintaining consistent performance. Each rotor is hand-built and meticulously inspected to ensure the highest quality and reliability. Designed as a direct OEM improvement, the X-Series rotors offer enhanced braking feel, reduced weight, and improved heat management for optimal performance in demanding riding conditions. The drilled and slotted braking surface further enhances heat dissipation and wet-weather performance.

Features & highlights

• Experience superior braking performance with the ultra-lightweight design.
• Enjoy consistent braking feel thanks to the patented S-Drive button system that prevents rivet lock.
• Benefit from improved heat dissipation with the drilled and slotted braking surface.
• Rest assured with hand-built and inspected quality.
• Upgrade from OEM with a direct replacement design.
• Enhance your sport bike's aesthetics with the gold finish.

Technical specifications

• Fits Front
• Brand: EBC
• Product Name: Brake Rotor
• Type: Two Piece (Floating)
• Material: Stainless Steel
• Outside Diameter: 310 mm
• Inside Diameter: 58.20 mm (2.29")
• Thickness: 5.0 mm
• Bolt Pattern: 6 Hole
• Bolt Hole Circle: 74.0 mm
• Braking Surface: Drilled, Slotted
• Color/Finish: Gold

Important to know

Always consult your motorcycle's service manual for specific torque specifications and installation instructions. Professional installation is recommended.
