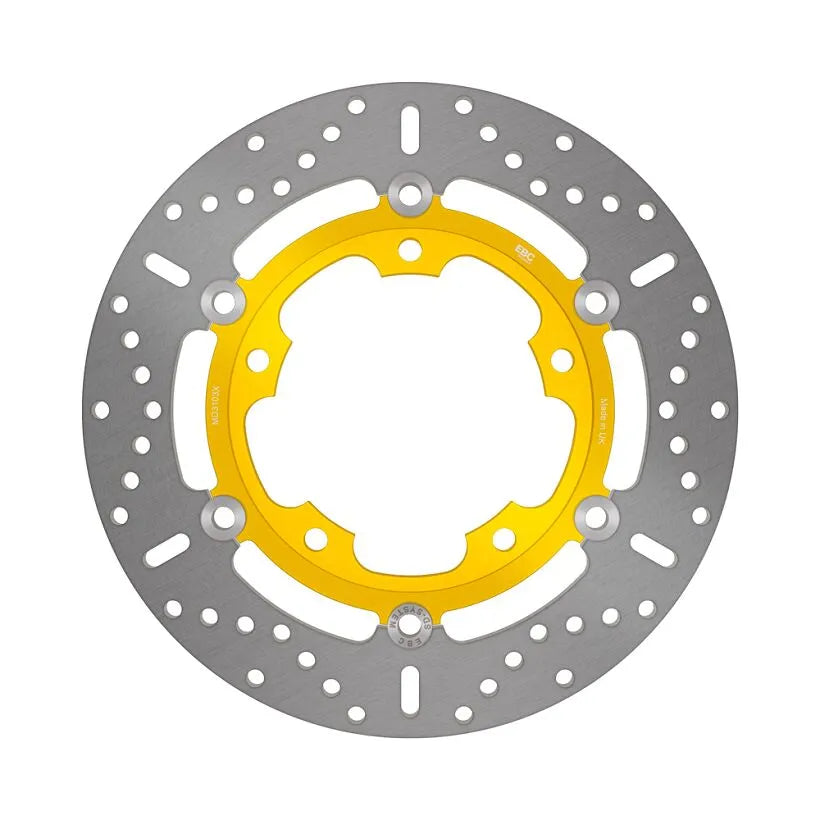

EBC X-Series Front Brake Rotor - 290mm - Floating - Gold - MD3103X
Product info
- Item number
- 17102754
- Manufacturer number
- MD3103X
- Position
The EBC X-Series Brake Rotor is an ultra-lightweight, high-performance disc designed for modern sport bikes. Since its introduction, it has become one of the world's best-selling rotors, offering exceptional braking power and reliability on the road or track.
Description
EBC Brakes' X-Series floating front MC rotors are engineered for superior performance. These rotors feature EBC Brakes' patented S-Drive button system, which uses square-sided rivets in square drive pockets on the rotor and hub. This innovative design allows the outer rotor blade to expand and contract freely under intense braking heat, preventing rivet lock and ensuring consistent braking performance. Each rotor is meticulously hand-built and inspected to guarantee the highest quality and performance. With its ultra-lightweight design and robust construction, the EBC X-Series brake rotor provides enhanced stopping power and improved handling for your sport bike. Designed as a direct OEM improvement, these rotors offer a significant upgrade in both performance and aesthetics.
Features & highlights
- Experience superior braking performance with the ultra-lightweight design.
- Enjoy consistent braking power thanks to the patented S-Drive button system, preventing rivet lock.
- Benefit from enhanced heat dissipation provided by the drilled and slotted braking surface.
- Upgrade your bike with a rotor designed as an OEM improvement for a perfect fit and enhanced performance.
- Trust in the quality of hand-built and inspected rotors for maximum reliability and safety.
- Enhance your bike's aesthetics with the stylish gold finish.
Technical specifications
- Fits Front
- Brand: EBC
- Product Name: Brake Rotor
- Type: Two Piece (Floating)
- Material: Aluminum, Stainless Steel
- Color/Finish: Gold
- Outside Diameter: 290 mm
- Thickness: 4.5 mm
- Braking Surface: Drilled, Slotted
- Bolt Pattern: 5 Hole
- Bolt Hole Circle: 142.0 mm
Important to know
No specific requirements or limitations are listed for this product.
- Brand
- EBC
- Vendor part number
- MD3103X
- Color finish
- Gold
- Product name
- Brake Rotor
- Shape
- Round
- Thickness
- 4,5 mm
- Outside diameter
- 290 mm
- Material
- Aluminum, Stainless Steel
- Type
- Two Piece (Floating)
- Units
- Each
- Braking surface
- Drilled, Slotted
- Bolt hole circle
- 142,0 mm
- Bolt pattern
- 5 Hole
