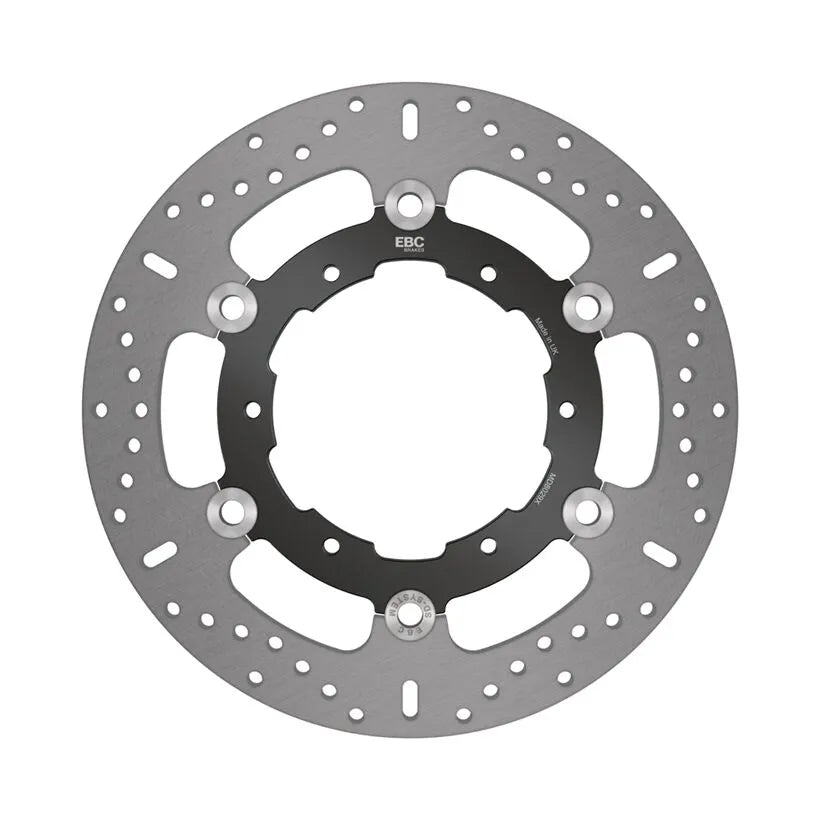

EBC X-Series Brake Rotor - 260mm - Floating - Black/Silver - MD8029X
Product info
- Item number
- 17104696
- Manufacturer number
- MD8029X
- Position
The EBC Brakes X-Series floating front brake rotors are renowned for their ultra-lightweight design and exceptional performance, making them a top choice for modern sport bikes. These rotors provide superior stopping power and heat dissipation, enhancing your riding experience and safety.
Description
EBC's X-Series brake rotors feature a patented S-Drive button system, utilizing square-sided rivets in square drive pockets on both the rotor and hub. This innovative design allows the outer rotor blade to expand and contract freely under intense braking heat, preventing rivet lock and maintaining consistent performance. Each rotor is meticulously hand-built and inspected to ensure the highest quality and reliability. Designed as a direct OEM improvement, these two-piece floating rotors are a simple and effective upgrade. Experience enhanced braking performance and confidence with EBC X-Series brake rotors. The drilled braking surface further enhances heat dissipation and improves wet-weather braking.
Features & highlights
- Experience superior braking performance with these ultra-lightweight rotors.
- Hand-built and inspected for the highest quality and reliability.
- Patented S-Drive button system prevents rivet lock, ensuring consistent braking.
- Designed as a direct OEM improvement for easy installation.
- Floating design allows for optimal thermal expansion and contraction.
- Drilled braking surface improves heat dissipation and wet-weather performance.
Technical specifications
- Fits Rear
- Brand: EBC
- Product Name: Brake Rotor
- Type: Two Piece (Floating)
- Material: Stainless Steel
- Color/Finish: Black, Silver
- Outside Diameter: 260 mm (10-1/4")
- Inside Diameter: 110.2 mm
- Bolt Hole Circle: 125.0 mm
- Bolt Pattern: 6 Hole
- Braking Surface: Drilled
Important to know
No specific requirements or limitations are noted for this product.
- Brand
- EBC
- Vendor part number
- MD8029X
- Color finish
- Black, Silver
- Product name
- Brake Rotor
- Shape
- Round
- Outside diameter
- 260 mm (10-1/4")
- Inside diameter
- 110,2 mm
- Material
- Stainless Steel
- Type
- Two Piece (Floating)
- Units
- Each
- Braking surface
- Drilled
- Bolt hole circle
- 125,0 mm
- Bolt pattern
- 6 Hole
