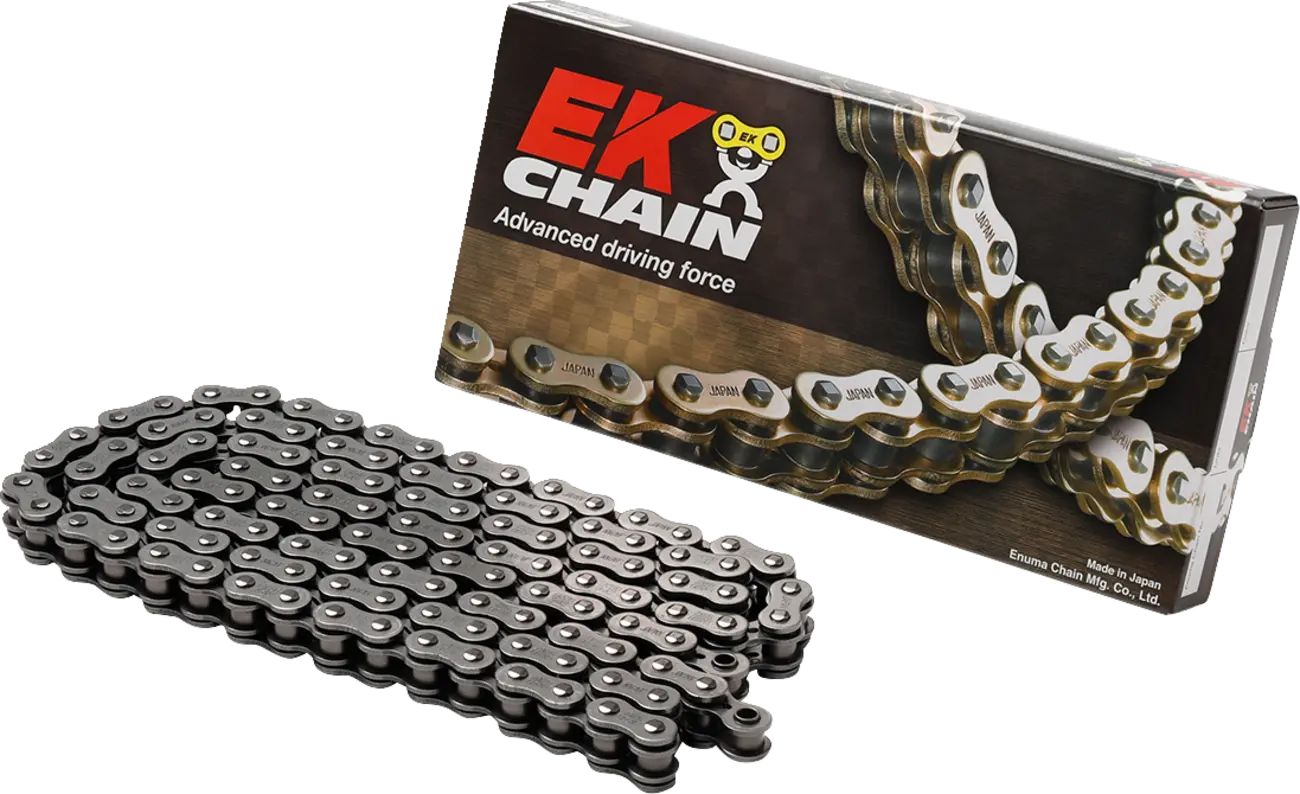

EK 520 SRX2 QX-Ring Chain - 100 Links - Natural - 520SRX2-100
Product info
- Item number
- 12230622
- Manufacturer number
- 520SRX2-100
- Position
- Chain size
- 520
- Links
- 100
- Seal type
- QX-Ring
- Tensile strength
- 37.8 kN
- Max. engine (street)
- 750 cc
- Max. engine (off-road)
- 650 cc
Upgrade your motorcycle's performance with the EK 520 SRX2 chain. Designed for both competition and OEM replacement, this high-performance drive chain delivers superior strength and longevity. Experience enhanced power transfer and reliability, whether you're on the street or off-road.
Description

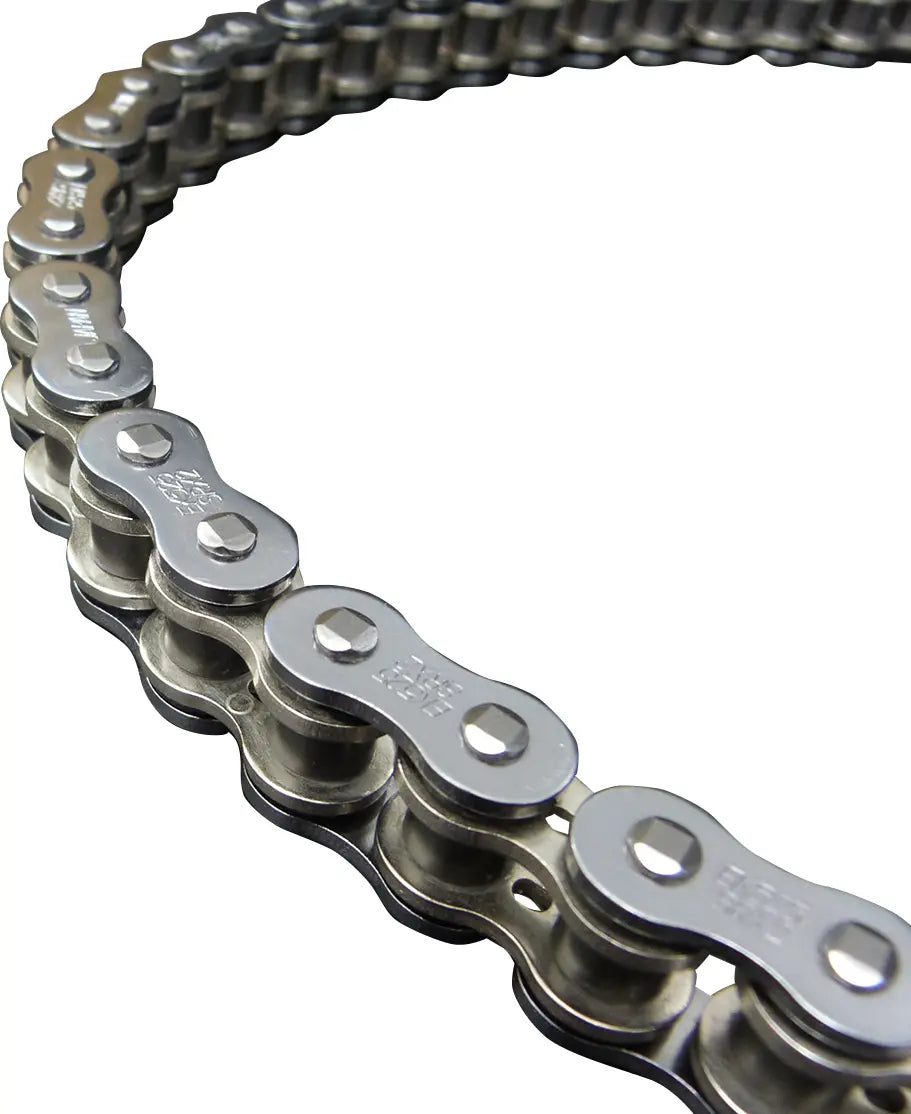

The EK 520 SRX2 chain is engineered for demanding applications, featuring lightening holes to reduce weight and enhance performance. Its innovative Quadra X-Ring design significantly reduces friction, extending the chain's lifespan by 1.5 to 2 times compared to standard O-ring chains. This robust steel chain is suitable for motorcycles with engine displacements up to 750 cc (street) and 650 cc (off-road), ensuring optimal performance and durability. The EK 520 SRX2 provides a tensile strength of 37.8 kN (8500 lb), offering exceptional resistance to stretching and breakage. Installation is straightforward, with both clip-type and rivet-type master links included for your convenience.
Features & highlights
- Extended Chain Life: Quadra X-Ring design provides 1.5-2 times longer life than standard O-ring chains.
- Optimized Performance: Lightening holes reduce weight for improved acceleration and handling.
- Superior Strength: Boasts a tensile strength of 37.8 kN (8500 lb) for reliable power transfer.
- Versatile Application: Suitable for both street bikes (up to 750cc) and off-road motorcycles (up to 650cc).
- Reduced Friction: Advanced design minimizes friction, enhancing efficiency and reducing wear.
- Complete Kit: Includes both clip-type and rivet-type (hollow) master links for easy installation.
Technical specifications
- Brand: EK
- Chain Size: 520
- Chain Type: 520 SRX2
- Color/Finish: Natural
- Material: Steel
- Seal Type: QX-Ring
- Maximum Engine Displacement (Street): 750 cc
- Maximum Engine Displacement (Offroad): 650 cc
- Tensile Strength: 37.8 kN (8500 lb)
- Number of Links: 100
- Weight: 1.57 kg/100 Links
- Master Link Connector Type: Rivet
Important to know
This drive chain comes with both clip-type and rivet-type master links included for installation flexibility.
- Brand
- EK
- Vendor part number
- 520SRX2-100
- Color finish
- Natural
- Product name
- Drive Chain
- Weight
- 1,57 kg/100 Links
- Tensile strength
- 37,8 kN (8500 lb)
- Seal type
- QX-Ring
- Number of links
- 100
- Maximum engine displacement street
- 750 cc
- Material
- Steel
- Master link connector type
- Rivet
- Chain type
- 520 SRX2
- Chain size
- 520
- Units
- Each
