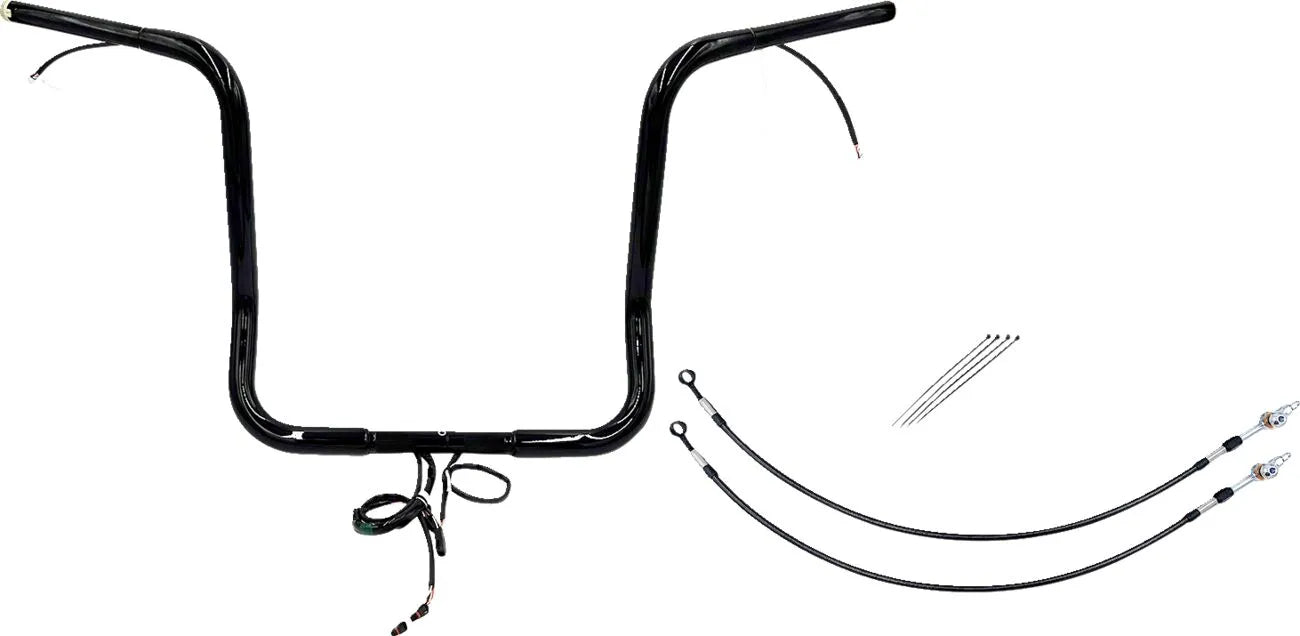

Fat Baggers Inc Pointed Top Handlebar Kit - 1-1/4" - Black - 902216-B
Product info
- Item number
- 06016145
- Manufacturer number
- 902216-B
- Position
- Bar diameter
- 1-1/4" (32 mm)
- Clamp diameter
- 1" (25.4 mm)
- Rise
- 16" (40.5 cm)
- Width
- 36" (91.5 cm)
- Pullback
- 9" (23 cm)
- Features
- Notched for throttle-by-wire · Pre-drilled for internal wiring · Accepts heated grips
Upgrade your ride with the Fat Baggers Inc. Ez Install Wired Handlebar Kit. This kit provides a simplified installation process and a clean, custom look for your motorcycle. Experience the ease of pre-wired handlebars, designed for quick and effortless integration with your existing controls.
Description
The Fat Baggers Inc. Ez Install Handlebar Kit is engineered for riders who demand both style and convenience. These ape hanger handlebars feature pre-installed wiring, including a throttle-by-wire sensor, allowing you to plug them directly into your motorcycle. The non-welded top corner, machined from billet steel, includes a smooth internal wire cavity to prevent damage to your wiring. CNC mandrel bending ensures consistent 1-1/4" diameter tubing with a .120" wall for strength and a clean look. The bolt-together, two-piece design saves space, while the extended lines and cables ensure compatibility. These handlebars not only enhance the aesthetics of your bike but also simplify the installation process, saving you time and effort. Proudly made in the U.S.A.
Features & highlights
- Pre-wired for handlebar controls, including throttle-by-wire, for easy installation.
- Non-welded billet steel top corner with smooth internal wire cavity protects wiring.
- CNC mandrel bent 1-1/4" diameter steel tubing for strength and a flawless finish.
- Bolt-together, 2-piece design simplifies handling and installation.
- Accepts OEM heated grips for added comfort in cold weather.
- Includes black brake lines and black clutch extensions (for '21-'23 models).
- Made in the U.S.A. for superior quality and craftsmanship.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Handlebar Diameter: 1-1/4" (32 mm)
- Clamping Diameter: 1" (25.4 mm)
- Controls Diameter: 1" (25.4 mm)
- Type/Bend: Ape Hanger
- Width: 36" (91.5 cm)
- Rise: 16" (40.5 cm)
- End Rise: 16" (40.5 cm)
- Pullback/Sweep: 9" (23 cm)
- Center Width: 15-1/2" (39.5 cm)
- Material: Steel
- Color/Finish: Black
- Features: Pre-Wired, Accepts Heated Grips, Internal Wiring
- Units: Kit
Important to know
- Does not replace existing lines and cables, but extends them.
- Heated Grip Extension sold separately.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 902216-B
- Color finish
- Black
- Product name
- Handlebar
- Center width
- 39,5 cm (15-1/2")
- Rise
- 40,5 cm (16")
- Handlebar diameter
- 32 mm (1-1/4")
- End rise
- 40,5 cm (16")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 25,4 mm (1")
- Width
- 91,5 cm (36")
- Material
- Steel
- Features
- Pre-Wired, Accepts Heated Grips, Internal Wiring
- Base color
- Black
- Units
- Kit
