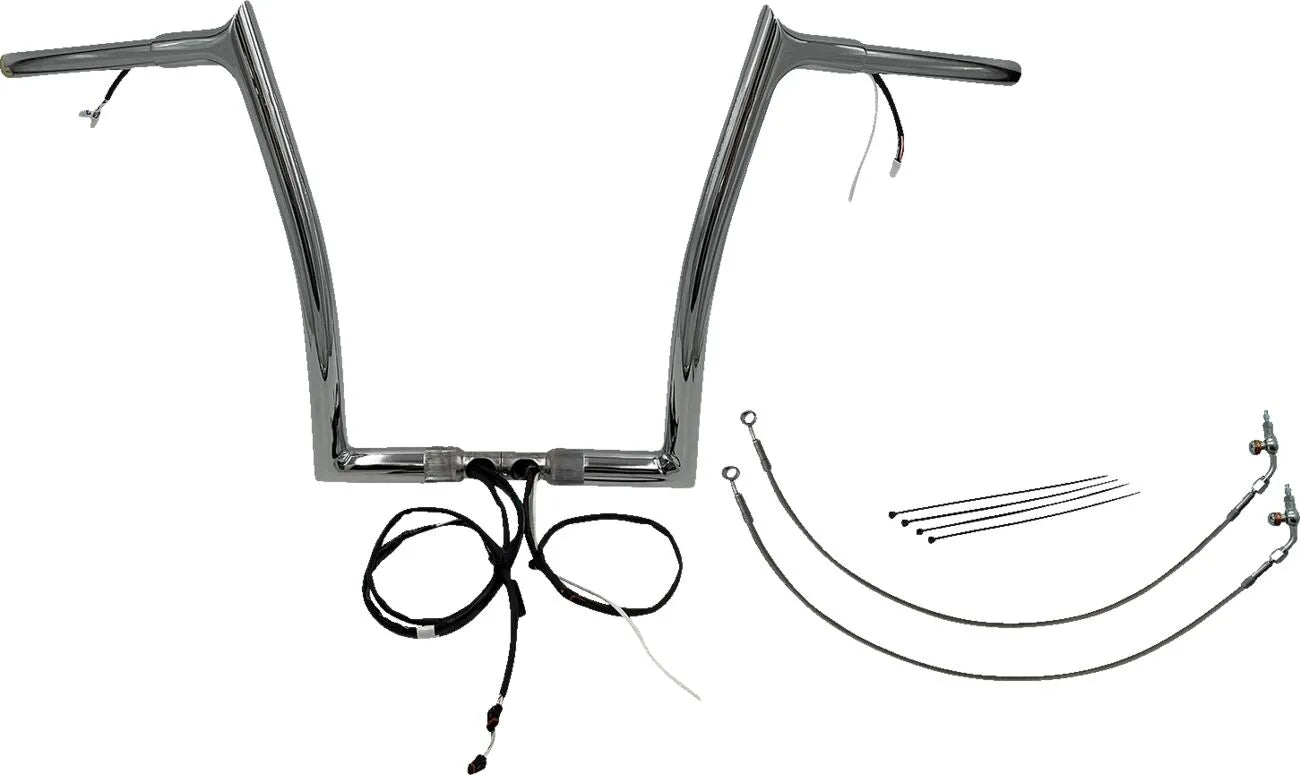

Fat Baggers Inc Pointed Top Handlebar Kit - 1-1/4" - 14" Rise - 901914
Product info
- Item number
- 06016154
- Manufacturer number
- 901914
- Position
- Bar diameter
- 1-1/4" (32 mm)
- Rise
- 14" (35.5 cm)
- Width
- 35" (89 cm)
- Pullback
- 8" (20.5 cm)
- Features
- Notched for throttle-by-wire · Pre-drilled for internal wiring · Accepts heated grips
Upgrade your ride with the Fat Baggers Inc. 1-1/4" Pointed Top Handlebar Kit. This pre-wired handlebar kit is designed for easy installation and superior performance. Enjoy enhanced comfort and style with these high-quality, chrome-finished ape hanger handlebars.
Description
Experience hassle-free installation with the Fat Baggers Inc. Ez Install Wired Handlebar Kit. These 1-1/4" diameter handlebars come pre-wired for your handlebar controls, including a pre-installed throttle-by-wire sensor. No more struggling with internal wiring – simply remove the bars from the box and plug them into your motorcycle. The non-welded top corner is meticulously machined from billet steel, featuring a smooth internal wire cavity that prevents damage to internal wiring. CNC mandrel bending ensures precise shaping from heavy-duty 1-1/4" diameter x .120" wall tubing. The bolt-together, two-piece design minimizes shelf space requirements. These handlebars are proudly made in the U.S.A. Designed to extend, not replace, existing lines and cables. Compatible with OEM heated grips. Note that '21-'23 kits include black brake lines and black clutch extensions.
Features & highlights
- Pre-wired for handlebar controls, including throttle-by-wire sensor for effortless installation.
- Non-welded billet steel top corner with smooth internal wire cavity protects wiring.
- CNC mandrel bent from robust 1-1/4" diameter steel tubing for superior strength.
- Bolt-together, 2-piece design saves space and simplifies handling.
- Extends existing lines and cables; accepts OEM heated grips for added convenience.
- Includes black brake lines and clutch extensions for '21-'23 models.
- Proudly made in the U.S.A. ensuring top-notch quality and craftsmanship.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Type/Bend: Ape Hanger
- Material: Steel
- Handlebar Diameter: 1-1/4" (32 mm)
- Controls Diameter: 1" (25.4 mm)
- Width: 35" (89 cm)
- Center Width: 10-1/4" (26 cm)
- Rise: 14" (35.5 cm)
- End Rise: 14" (35.5 cm)
- Pullback/Sweep: 8" (20.5 cm)
- Finish: Chrome
- Base Color: Silver
- Features: Accepts Heated Grips, Internal Wiring, Pre-Wired
- Units: Kit
Important to know
This handlebar kit extends existing lines and cables but does not replace them. A heated grip extension is sold separately.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 901914
- Color finish
- Chrome
- Product name
- Handlebar
- Center width
- 26 cm (10-1/4")
- Rise
- 35,5 cm (14")
- Handlebar diameter
- 32 mm (1-1/4")
- End rise
- 35,5 cm (14")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 32 mm (1-1/4")
- Width
- 89 cm (35")
- Finish
- Chrome
- Material
- Steel
- Features
- Accepts Heated Grips, Internal Wiring, Pre-Wired
- Base color
- Silver
- Units
- Kit
