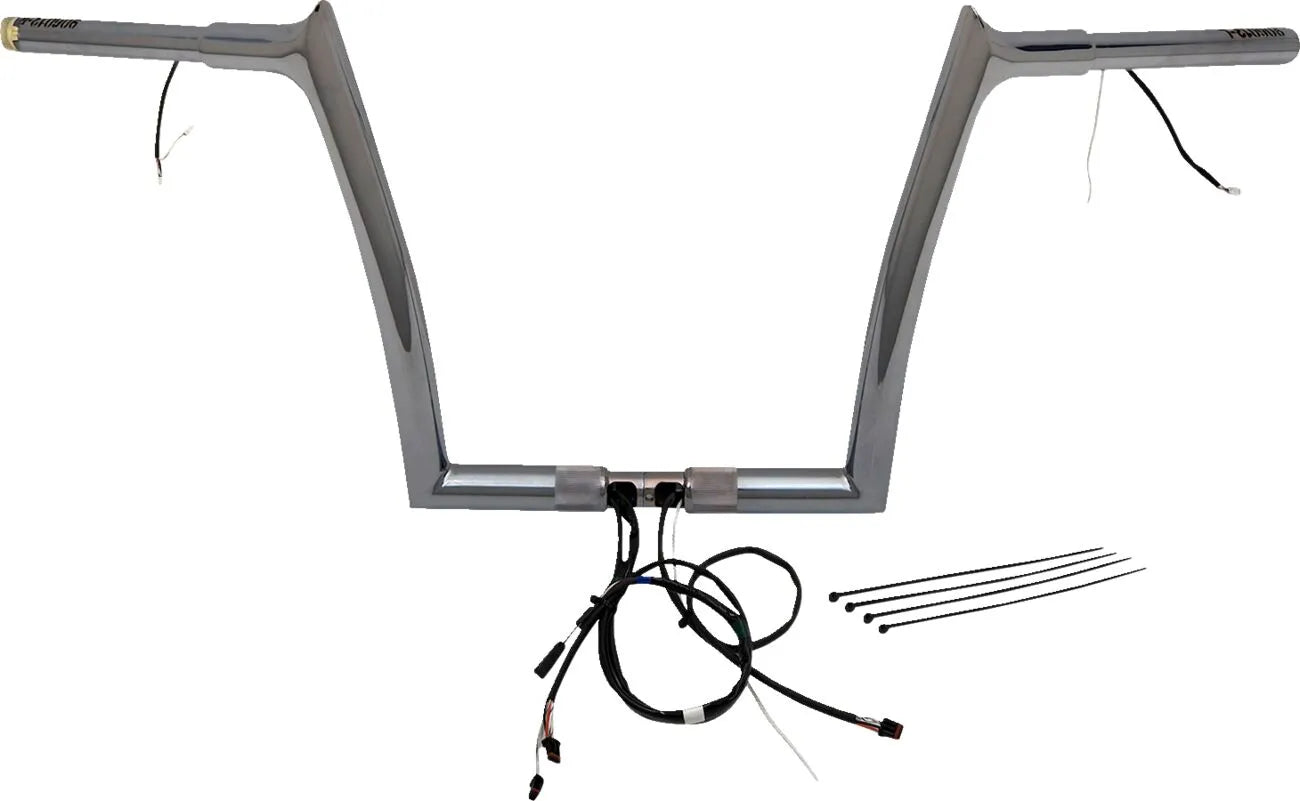

Fat Baggers Inc Pointed Top Handlebar Kit - 1-1/4" - 12" Rise - 901912
Product info
- Item number
- 06016152
- Manufacturer number
- 901912
- Position
- Bar diameter
- 1-1/4" (32 mm)
- Rise
- 12" (30.5 cm)
- Width
- 35" (89 cm)
- Pullback
- 8" (20.5 cm)
- Features
- Notched for throttle-by-wire · Pre-drilled for internal wiring · Accepts heated grips
Upgrade your ride with the Fat Baggers Inc. Ez Install Wired Handlebar Kit. This kit offers a simplified installation process and enhanced comfort, ensuring a superior riding experience. These ape hanger handlebars combine top-notch manufacturing with rider-centric design.
Description
The Fat Baggers Inc. 1-1/4" Wired Handlebar Kit is engineered for a hassle-free installation. Pre-wired for your handlebar controls, including a throttle-by-wire sensor, these handlebars eliminate the struggle with internal wiring. Simply remove the bars from the box and plug them into your motorcycle. The non-welded top corner, machined from billet steel, features a smooth internal wire cavity to protect your wiring. CNC mandrel bending from 1-1/4" diameter x .120" wall heavy tube ensures durability and a clean look. The bolt-together, 2-piece design saves shelf space and simplifies handling. Proudly made in the U.S.A., this kit is designed to extend your existing lines and cables, and it also accepts OEM heated grips for added comfort. For '21-'23 models, the kit includes black brake lines and black clutch extensions for a cohesive appearance. These handlebars are 35" wide with a 12" rise and 8" of pullback.
Features & highlights
- Pre-wired for handlebar controls, including throttle-by-wire, for quick installation.
- Non-welded top corner machined from billet steel protects internal wiring.
- CNC mandrel bent from heavy-duty 1-1/4" diameter steel for strength and style.
- Bolt-together, 2-piece design simplifies handling and storage.
- Accepts OEM heated grips for added comfort in cold weather.
- Extends existing lines and cables, minimizing additional purchases.
- Includes black brake lines and clutch extensions for '21-'23 models.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Type/Bend: Ape Hanger
- Material: Steel
- Handlebar Diameter: 1-1/4" (32 mm)
- Controls Diameter: 1" (25.4 mm)
- Width: 35" (89 cm)
- Rise: 12" (30.5 cm)
- End Rise: 12" (30,5 cm)
- Pullback/Sweep: 8" (20.5 cm)
- Center Width: 10-1/4" (26 cm)
- Clamping Diameter: 1-1/4" (32 mm)
- Finish: Chrome
- Color/Finish: Chrome
- Features: Accepts Heated Grips, Internal Wiring, Pre-Wired
- Units: Kit
Important to know
- Heated Grip Extension sold separately.
- Does not replace existing lines and cables, but extends them.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 901912
- Color finish
- Chrome
- Product name
- Handlebar
- Center width
- 26 cm (10-1/4")
- Rise
- 30,5 cm (12")
- Handlebar diameter
- 32 mm (1-1/4")
- End rise
- 30,5 cm (12")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 32 mm (1-1/4")
- Width
- 89 cm (35")
- Finish
- Chrome
- Material
- Steel
- Features
- Accepts Heated Grips, Internal Wiring, Pre-Wired
- Base color
- Silver
- Units
- Kit
