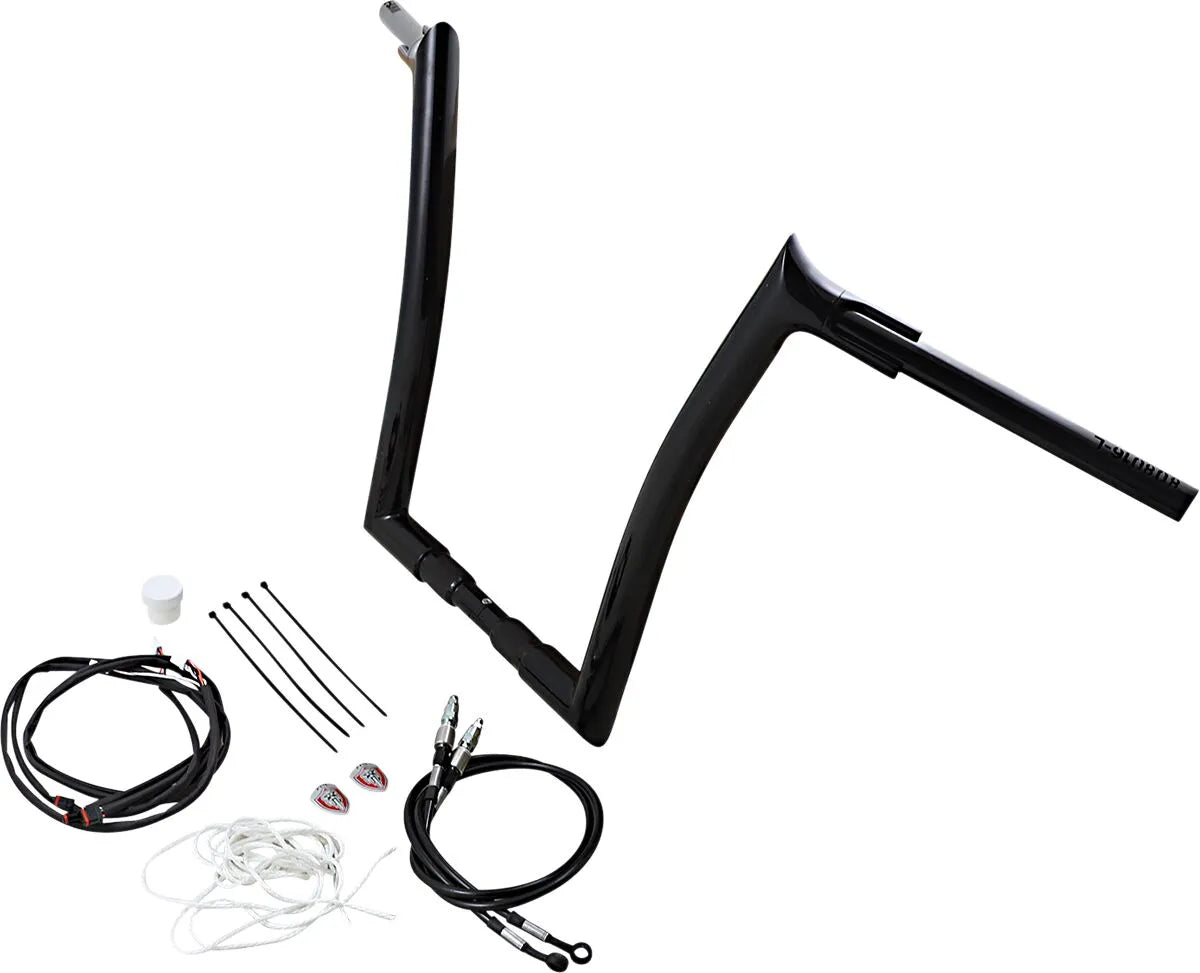

Fat Baggers Inc Ape Hanger Kit - 1-1/2" - 16" Rise - Black - 809616-B
Product info
- Item number
- 06015459
- Manufacturer number
- 809616-B
- Position
- Bar diameter
- 1-1/2" (38 mm)
- Clamp diameter
- 1-1/4" (32 mm)
- Rise
- 16" (40.5 cm)
- Width
- 35" (89 cm)
- Pullback
- 8" (20.5 cm)
- Features
- Notched for throttle-by-wire · Accepts heated grips · Knurled
Upgrade your motorcycle with the Fat Baggers Inc. 1-1/2" EZ Install Pointed Top Handlebar Kit. This kit delivers a custom look and significantly simplifies the handlebar installation process. Enjoy a comfortable and stylish riding experience with these high-quality, American-made handlebars.
Description

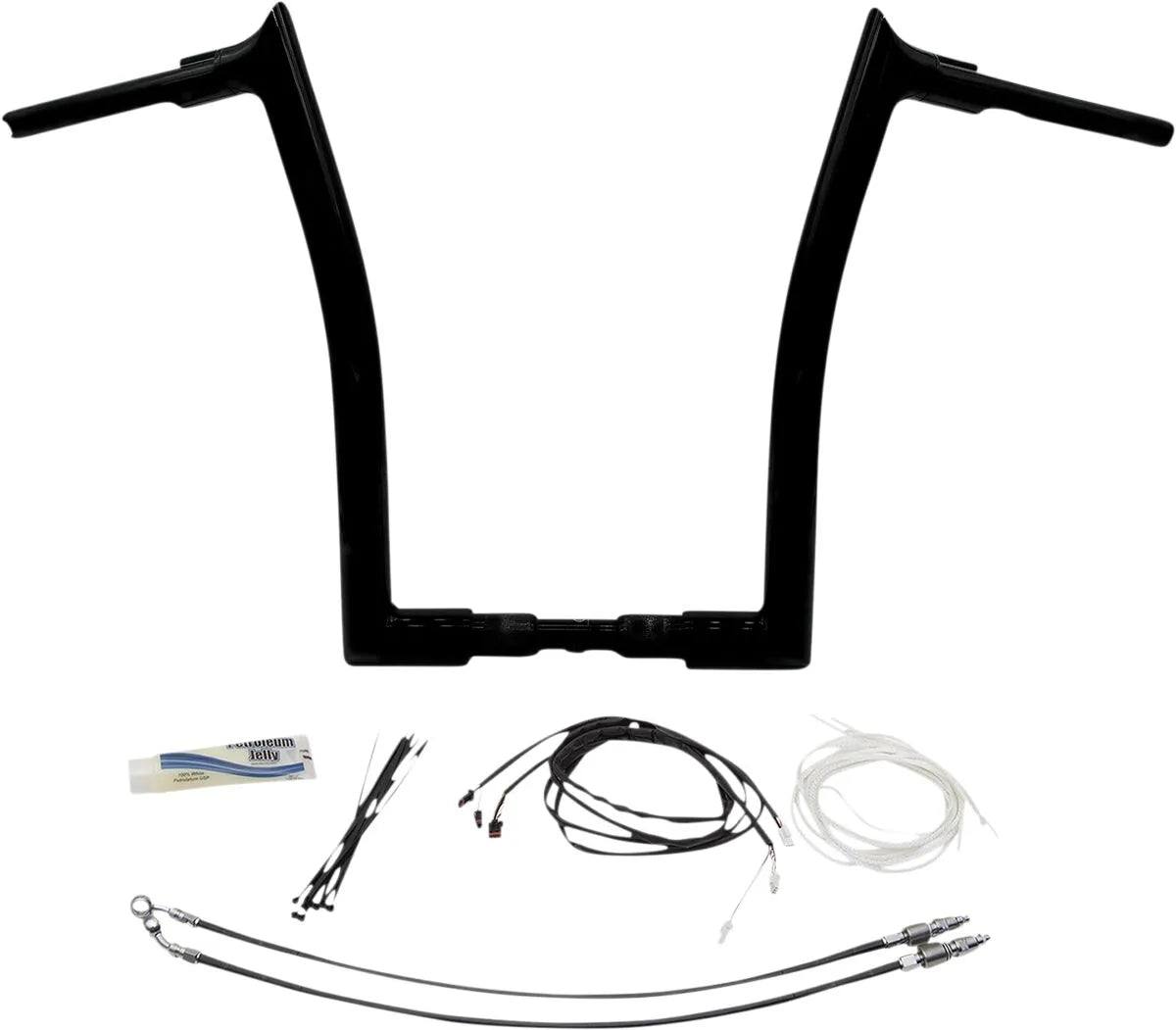

The Fat Baggers Inc. 1-1/2" EZ Install Handlebar Kit features an adjustable 1-1/2" collar for a custom look next to the handlebar controls. The innovative bolt-together, two-piece design not only saves shelf space but also makes shipping and installation faster than ever. CNC mandrel-bent from 1-1/2" diameter x 0.095" wall heavy-duty steel tubing, these handlebars provide exceptional strength and durability. The “EZ install” design eliminates the struggle with internal wiring, allowing you to install handlebar wiring in minutes. A billet machined top with a large internal machined radius simplifies wire pulling. Designed to work with throttle-by-wire (TBW) applications and accepts OEM heated grips, these handlebars offer both functionality and style. The kit’s unique design extends the existing clutch cable/clutch line and brake lines, cutting installation time in half.
Features & highlights
- Adjustable collar allows for a personalized, custom aesthetic.
- Revolutionary two-piece design simplifies shipping and installation.
- CNC mandrel-bent from heavy-duty 1-1/2" steel tubing for superior strength.
- EZ install design streamlines internal wiring, saving you time and effort.
- Billet machined top with large radius facilitates easy wire pulling.
- Knurled and notched for seamless integration with TBW (throttle-by-wire) systems.
- Proudly made in the USA, ensuring top-notch quality and craftsmanship.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Type/Bend: Ape Hanger
- Color/Finish: Black
- Material: Steel
- Handlebar Diameter: 1-1/2" (38 mm)
- Controls Diameter: 1" (25.4 mm)
- Clamping Diameter: 1-1/4" (32 mm)
- Width: 35" (89 cm)
- Rise: 16" (40.5 cm)
- Pullback/Sweep: 8" (20.5 cm)
- Center Width: 10-1/4" (26 cm)
- Features: Knurled Center, Accepts Heated Grips, For Hydraulic Clutch, Notched for Throttle-By-Wire
- Units: Kit
Important to know
Ensure proper fitment and compatibility with your motorcycle model before installation. Professional installation is recommended.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 809616-B
- Color finish
- Black
- Product name
- Handlebar
- Center width
- 26 cm (10-1/4")
- Rise
- 40,5 cm (16")
- Handlebar diameter
- 38 mm (1-1/2")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 32 mm (1-1/4")
- Width
- 89 cm (35")
- Material
- Steel
- Features
- Knurled Center, Accepts Heated Grips, For Hydraulic Clutch, Notched for Throttle-By-Wire
- Base color
- Black
- Units
- Kit
