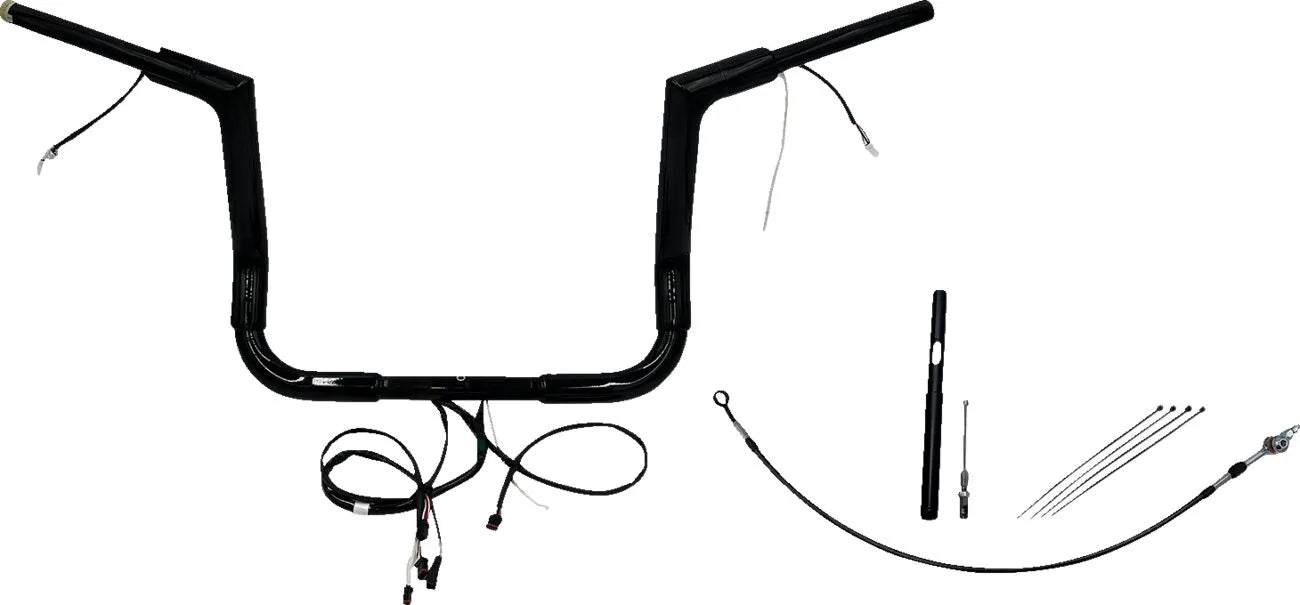

Fat Baggers Inc Flat Top Handlebar Kit - 1-1/2" - 12" Rise - 612012-B
Product info
- Item number
- 06016078
- Manufacturer number
- 612012-B
- Position
- Bar diameter
- 1-1/2" (38 mm)
- Clamp diameter
- 1" (25.4 mm)
- Rise
- 12" (30.5 cm)
- Width
- 36" (91.5 cm)
- Pullback
- 9" (23 cm)
- Features
- Notched for throttle-by-wire · Pre-drilled for internal wiring · Accepts heated grips
Upgrade your ride with the Fat Baggers Inc. 1-1/2" Flat Top Handlebar Kit. This pre-wired handlebar kit simplifies installation, allowing you to quickly and easily enhance your motorcycle's aesthetics and comfort. Experience superior quality and convenience with this innovative handlebar solution.
Description
The Fat Baggers Inc. Ez Install Wired Handlebar Kit eliminates the hassle of internal wiring. The handlebars come pre-wired for your handlebar controls, including a pre-installed throttle-by-wire sensor. You can now install wiring in minutes without the struggle. The non-welded top corner, machined from billet steel, features a smooth internal wire cavity, preventing damage to internal wiring. With an adjustable 1-1/2" collar next to the handlebar controls, you can achieve a custom finished look. CNC mandrel bending ensures precise shaping of the 1-1/2" diameter x 0.095" wall heavy tube steel. The bolt-together, 2-piece design minimizes shelf space. Proudly made in the U.S.A., this kit provides extended wiring for your controls. It also accepts OEM heated grips for added comfort. Upgrade your motorcycle's style and functionality with this exceptional handlebar kit.
Features & highlights
- Pre-wired for handlebar controls, including throttle-by-wire sensor, saving installation time.
- Non-welded top corner machined from billet steel protects internal wiring.
- Adjustable 1-1/2" collar allows for a custom, finished look.
- CNC mandrel bent from 1-1/2" diameter heavy tube for strength and precision.
- Bolt-together, 2-piece design for compact storage and easy handling.
- Accepts OEM heated grips for added comfort in colder conditions.
- Made in the U.S.A. ensuring high-quality craftsmanship.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Type/Bend: Ape Hanger
- Handlebar Diameter: 1-1/2" (38 mm)
- Clamping Diameter: 1" (25.4 mm)
- Controls Diameter: 1" (25.4 mm)
- End Rise: 12" (30.5 cm)
- Rise: 12" (30.5 cm)
- Width: 36" (91.5 cm)
- Center Width: 15" (38 cm)
- Pullback/Sweep: 9" (23 cm)
- Material: Steel
- Color/Finish: Black
- Base Color: Black
- Features: Pre-Wired, Accepts Heated Grips, Internal Wiring
- Units: Kit
Important to know
- Does not replace existing lines and cables, but extends them.
- Heated Grip Extension sold separately.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 612012-B
- Color finish
- Black
- Product name
- Handlebar
- Center width
- 38 cm (15")
- Rise
- 30,5 cm (12")
- Handlebar diameter
- 38 mm (1-1/2")
- End rise
- 30,5 cm (12")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 25,4 mm (1")
- Width
- 91,5 cm (36")
- Material
- Steel
- Features
- Pre-Wired, Accepts Heated Grips, Internal Wiring
- Base color
- Black
- Units
- Kit
