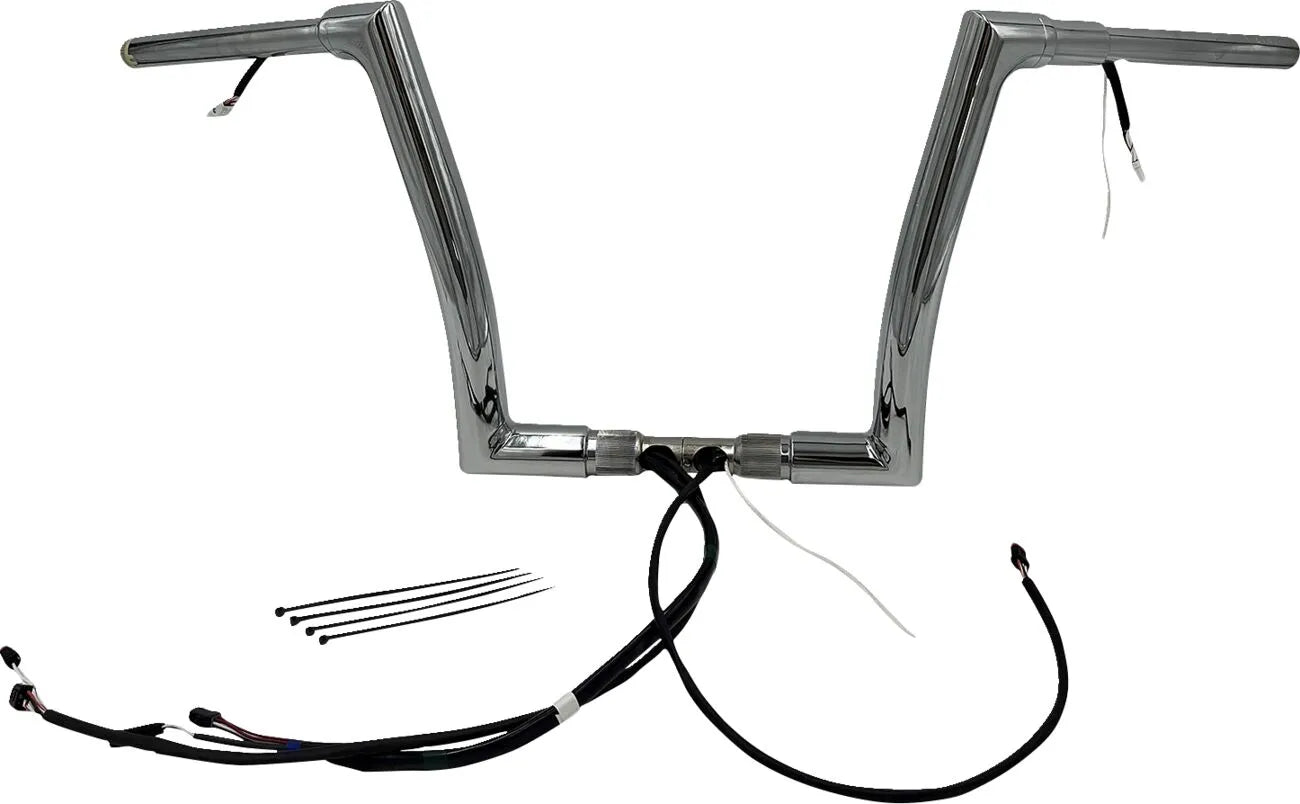

Fat Baggers Inc EZ Flat Top Handlebar Kit - 1-1/2" - 12" Rise - 612912
Product info
- Item number
- 06016095
- Manufacturer number
- 612912
- Position
- Bar diameter
- 1-1/2" (38 mm)
- Clamp diameter
- 1-1/4" (32 mm)
- Rise
- 12" (30.5 cm)
- Width
- 35" (89 cm)
- Pullback
- 8" (20.5 cm)
- Features
- Notched for throttle-by-wire · Pre-drilled for internal wiring · Accepts heated grips
Upgrade your ride with the Fat Baggers Inc. 1-1/2" Flat Top Handlebar Kit. This pre-wired handlebar kit simplifies installation and provides a custom look and comfortable feel. Experience superior control and style with this high-quality, easy-to-install handlebar upgrade.
Description
The Fat Baggers Inc. 1-1/2" Flat Top Handlebar Kit is designed for riders seeking a blend of style and ease of installation. Pre-wired for handlebar controls, including a throttle-by-wire sensor, this kit allows you to plug the bars directly into your motorcycle, eliminating the hassle of internal wiring. The non-welded top corner, machined from billet steel, features a smooth internal wire cavity to protect your wiring. An adjustable 1-1/2" collar next to the handlebar controls provides a custom finished look. CNC mandrel bending ensures precise shaping from the 1-1/2" diameter x 0.095" wall heavy tube. The bolt-together, two-piece design saves shelf space and simplifies handling. Proudly made in the U.S.A., these handlebars accept OEM heated grips for added comfort. These bars provide a comfortable, custom look while simplifying the install process. Transform your motorcycle with these high-quality, pre-wired handlebars.
Features & highlights
- Pre-wired for handlebar controls, including throttle-by-wire, for a seamless installation.
- Non-welded billet steel top corner with smooth internal wire cavity protects wiring.
- Adjustable 1-1/2" collar provides a custom, finished look.
- CNC mandrel bent from 1-1/2" diameter heavy-duty steel tubing for strength and precision.
- Bolt-together, two-piece design saves space and simplifies installation.
- Accepts OEM heated grips for added comfort in cold weather.
- Made in the U.S.A. for guaranteed quality and craftsmanship.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Type/Bend: Ape Hanger
- Handlebar Diameter: 1-1/2" (38 mm)
- Controls Diameter: 1" (25.4 mm)
- Width: 35" (89 cm)
- Rise: 12" (30.5 cm)
- End Rise: 12" (30.5 cm)
- Pullback/Sweep: 8" (20.5 cm)
- Center Width: 10-1/4" (26 cm)
- Clamping Diameter: 1-1/4" (32 mm)
- Material: Steel
- Color/Finish: Chrome
- Features: Accepts Heated Grips, Internal Wiring, Pre-Wired
Important to know
This kit extends existing lines and cables, but does not replace them. A Heated Grip Extension is sold separately.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 612912
- Color finish
- Chrome
- Product name
- Handlebar
- Center width
- 26 cm (10-1/4")
- Rise
- 30,5 cm (12")
- Handlebar diameter
- 38 mm (1-1/2")
- End rise
- 30,5 cm (12")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 32 mm (1-1/4")
- Width
- 89 cm (35")
- Finish
- Chrome
- Material
- Steel
- Features
- Accepts Heated Grips, Internal Wiring, Pre-Wired
- Base color
- Silver
- Units
- Kit
