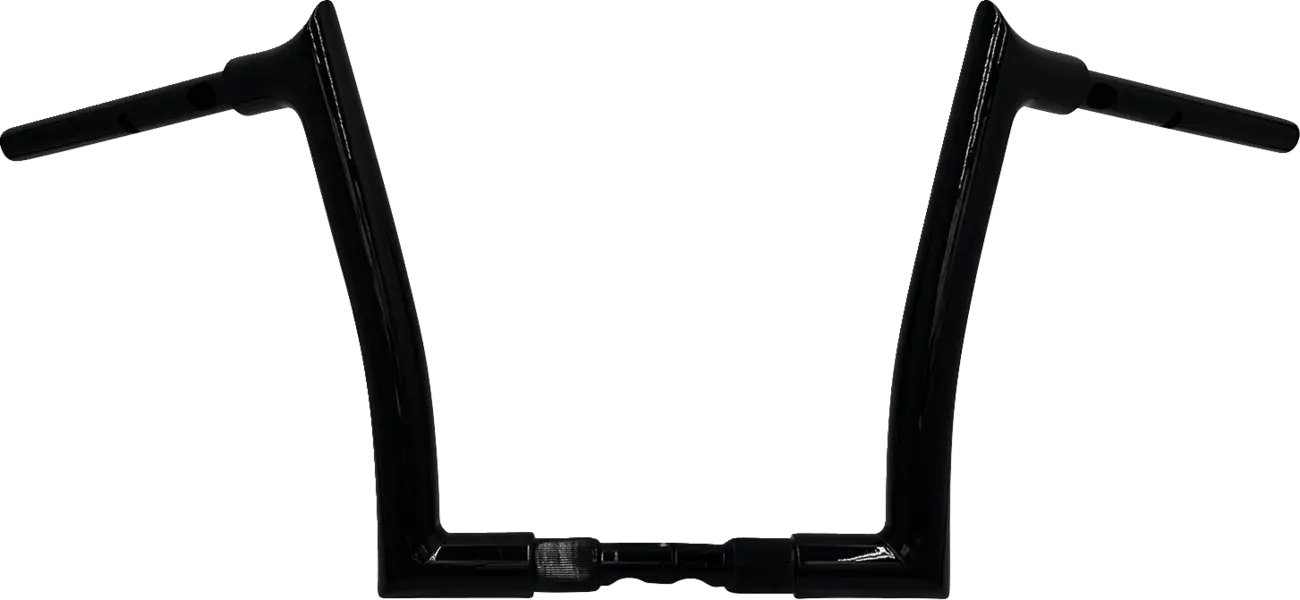

Fat Baggers Inc Ape Hanger - 1-1/2" - 12" Rise - Black - 848012-B
Product info
- Item number
- 06016379
- Manufacturer number
- 848012-B
- Position
- Bar diameter
- 1-1/2" (38 mm)
- Clamp diameter
- 1-1/4" (32 mm)
- Rise
- 12" (30.5 cm)
- Width
- 35" (89 cm)
- Pullback
- 8" (20.5 cm)
- Features
- Notched for throttle-by-wire · Accepts heated grips · Knurled
Upgrade your motorcycle with the Fat Baggers Inc. 1-1/2" EZ Install Pointed Top Handlebar. This innovative handlebar combines aggressive styling with ease of installation, offering a significant improvement in both aesthetics and rider comfort. Crafted with precision and designed for performance, this handlebar is the perfect addition to your custom build.
Description
The Fat Baggers Inc. 1-1/2" EZ Install Pointed Top Handlebar features a unique bolt-together, two-piece design for easy shipping and reduced shelf space. CNC mandrel-bent from heavy-duty 1-1/2" diameter steel tubing with a .095" wall thickness, these handlebars are built to last. The adjustable 1-1/2" collar provides a custom, finished look next to the handlebar controls. The EZ install design eliminates the struggle with internal wiring, allowing for a quick and simple installation. The bar's "squared" lower bends and additional slots further simplify wire routing. These ape hanger style bars offer a 12" rise and 8" pullback for a comfortable riding position. Proudly made in the USA, these handlebars are knurled and notched for throttle-by-wire (TBW) applications and accept OEM heated grips.
Features & highlights
- Innovative bolt-together design simplifies shipping and storage.
- EZ Install design eliminates the hassle of internal wiring.
- Adjustable collar provides a custom, clean look.
- Constructed from heavy-duty 1-1/2" diameter steel tubing.
- Knurled and notched for throttle-by-wire (TBW) applications.
- Accepts OEM heated grips for added comfort.
- Made in the USA.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Type/Bend: Ape Hanger
- Handlebar Diameter: 1-1/2" (38 mm)
- Controls Diameter: 1" (25.4 mm)
- Clamping Diameter: 1-1/4" (32 mm)
- Rise: 12" (30.5 cm)
- Width: 35" (89 cm)
- Pullback/Sweep: 8" (20.5 cm)
- Center Width: 10-1/4" (26 cm)
- Material: Steel
- Color/Finish: Black
- Features: Knurled Center, Accepts Heated Grips, Notched for Throttle-By-Wire
Important to know
Ensure compatibility with your motorcycle before installation. Professional installation is recommended.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 848012-B
- Color finish
- Black
- Product name
- Handlebar
- Center width
- 26 cm (10-1/4")
- Rise
- 30,5 cm (12")
- Handlebar diameter
- 38 mm (1-1/2")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 32 mm (1-1/4")
- Width
- 89 cm (35")
- Material
- Steel
- Features
- Knurled Center, Accepts Heated Grips, Notched for Throttle-By-Wire
- Base color
- Black
- Units
- Each
