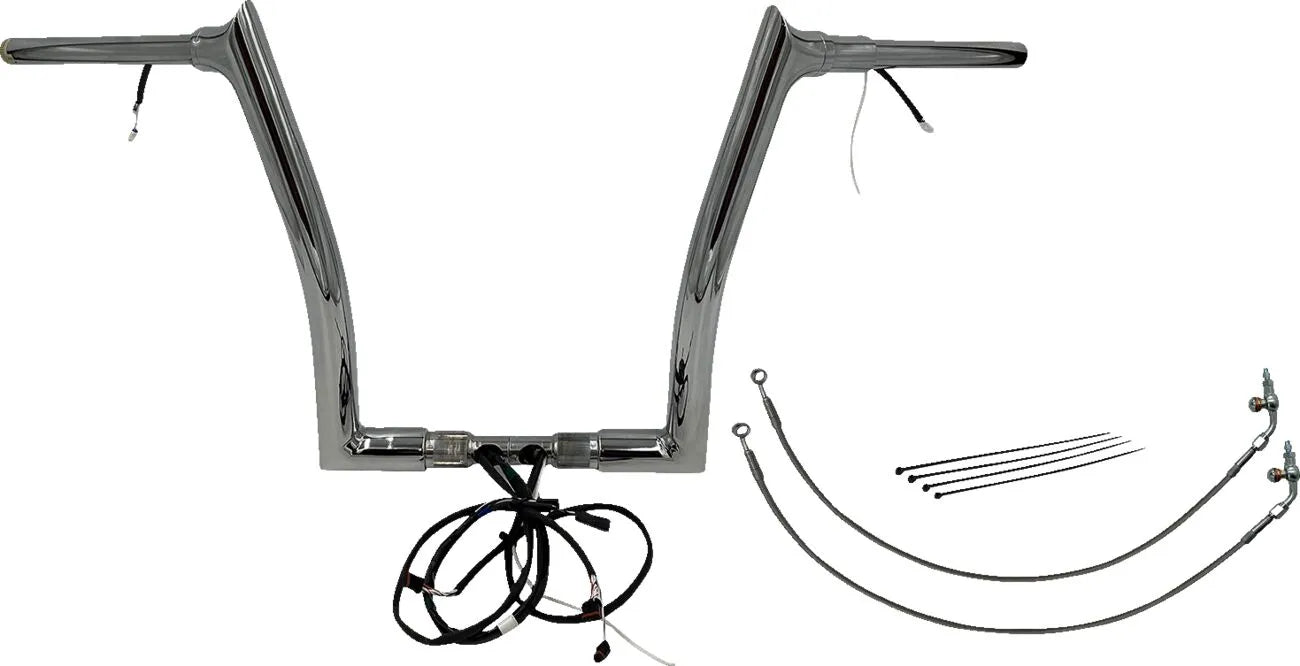

Fat Baggers Inc Pointed Top Handlebar Kit - 1-1/2" - 14" Rise - 801314
Product info
- Item number
- 06016189
- Manufacturer number
- 801314
- Position
- Bar diameter
- 1-1/2" (38 mm)
- Clamp diameter
- 1-1/4" (32 mm)
- Rise
- 14" (35.5 cm)
- Width
- 35" (89 cm)
- Pullback
- 8" (20.5 cm)
- Features
- Notched for throttle-by-wire · Pre-drilled for internal wiring · Accepts heated grips
Upgrade your ride with the Fat Baggers Inc. Ez Install 1-1/2" Pointed Top Handlebar Kit. These handlebars offer a seamless blend of style and functionality, pre-wired for your handlebar controls, including a throttle-by-wire sensor, to make installation a breeze. Spend less time wrestling with wires and more time on the road.
Description
The Fat Baggers Inc. Ez Install Handlebar Kit eliminates the hassle of internal wiring. Simply remove the bars from the box, plug them into your motorcycle, and you're ready to go. The non-welded top corner, machined from billet steel, features a smooth internal wire cavity that protects your wiring from damage. An adjustable 1-1/2" collar provides a custom finished look next to the handlebar controls. CNC mandrel bent from heavy-duty 1-1/2" diameter x .095" wall steel tubing, these handlebars are built to last. The innovative bolt-together, 2-piece design also saves valuable shelf space. Proudly made in the U.S.A., this kit extends your existing lines and cables and is compatible with OEM heated grips.
Features & highlights
- Pre-wired for handlebar controls, including throttle-by-wire, for easy installation.
- Billet steel top corner with smooth internal wire cavity protects wiring.
- Adjustable 1-1/2" collar for a custom, finished look.
- CNC mandrel bent from 1-1/2" diameter heavy-duty steel tubing for superior strength.
- Bolt-together, 2-piece design saves space and simplifies handling.
- Accepts OEM heated grips for added comfort.
- Extends existing lines and cables; no need for complete replacements.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Type/Bend: Ape Hanger
- Material: Steel
- Color/Finish: Chrome
- Base Color: Silver
- Handlebar Diameter: 1-1/2" (38 mm)
- Clamping Diameter: 1-1/4" (32 mm)
- Controls Diameter: 1" (25.4 mm)
- Width: 35" (89 cm)
- Rise: 14" (35.5 cm)
- End Rise: 14" (35.5 cm)
- Pullback/Sweep: 8" (20.5 cm)
- Center Width: 10-1/4" (26 cm)
- Features: Accepts Heated Grips, Internal Wiring, Pre-Wired
Important to know
- Does not replace existing lines and cables, but extends them.
- Heated Grip Extension sold separately.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 801314
- Color finish
- Chrome
- Product name
- Handlebar
- Center width
- 26 cm (10-1/4")
- Rise
- 35,5 cm (14")
- Handlebar diameter
- 38 mm (1-1/2")
- End rise
- 35,5 cm (14")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 32 mm (1-1/4")
- Width
- 89 cm (35")
- Finish
- Chrome
- Material
- Steel
- Features
- Accepts Heated Grips, Internal Wiring, Pre-Wired
- Base color
- Silver
- Units
- Kit
