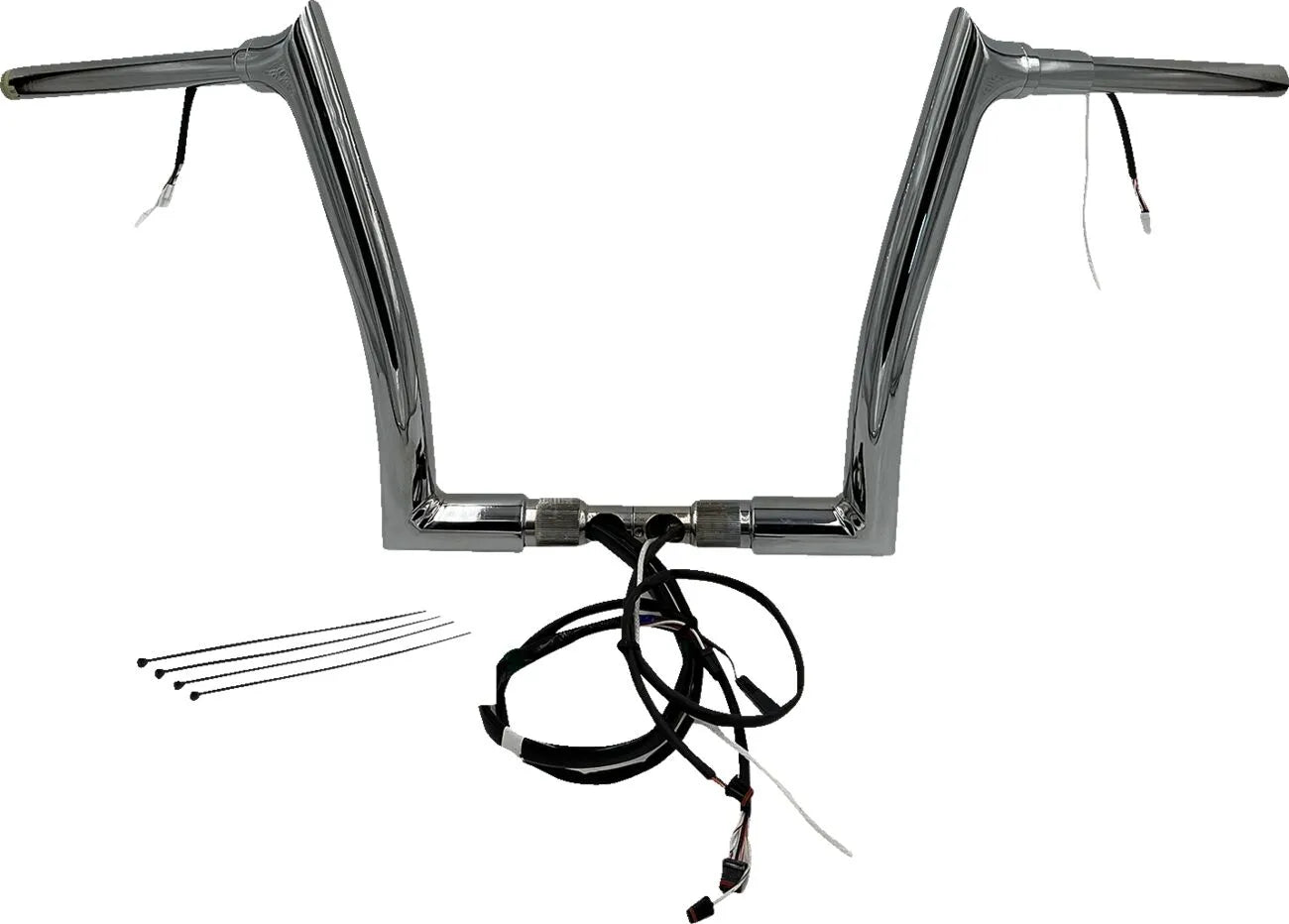

Fat Baggers Inc Pointed Top Handlebar Kit - 1-1/2" - 12" Rise - 802312
Product info
- Item number
- 06016193
- Manufacturer number
- 802312
- Position
- Bar diameter
- 1-1/2" (38 mm)
- Clamp diameter
- 1-1/4" (32 mm)
- Rise
- 12" (30.5 cm)
- Width
- 35" (89 cm)
- Pullback
- 8" (20.5 cm)
- Features
- Notched for throttle-by-wire · Pre-drilled for internal wiring · Accepts heated grips
Upgrade your motorcycle with the Fat Baggers Inc. 1-1/2" Pointed Top Handlebar Kit. This pre-wired handlebar kit simplifies installation and enhances the aesthetics of your ride. With its unique design and high-quality construction, this kit is perfect for enthusiasts and professionals alike.
Description
The Fat Baggers Inc. Ez Install Handlebar Kit revolutionizes handlebar installation. No more struggling with internal wiring – these handlebars come pre-wired for your handlebar controls, including a throttle-by-wire sensor. Simply remove the bars from the box and plug them into your motorcycle. The non-welded top corner, machined from billet steel, features a smooth internal wire cavity that protects your internal wiring from damage. An adjustable 1-1/2" collar provides a custom finished look next to the handlebar controls. CNC mandrel bent from 1-1/2" diameter x .095" wall heavy-duty steel tubing for durability and precision. Its bolt-together, two-piece design minimizes shelf space. Proudly made in the U.S.A. The kit extends, but does not replace, existing lines and cables and accepts OEM heated grips.
Features & highlights
- Pre-wired for handlebar controls, including throttle-by-wire, for easy installation.
- Non-welded billet steel top corner with smooth internal wire cavity protects wiring.
- Adjustable 1-1/2" collar provides a custom, finished look.
- CNC mandrel bent from 1-1/2" diameter heavy-duty steel for strength and precision.
- Bolt-together, two-piece design saves space and simplifies handling.
- Accepts OEM heated grips for added comfort.
- Extends existing lines and cables.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Type/Bend: Ape Hanger
- Handlebar Diameter: 1-1/2" (38 mm)
- Controls Diameter: 1" (25.4 mm)
- Center Width: 10-1/4" (26 cm)
- Width: 35" (89 cm)
- Rise: 12" (30.5 cm)
- End Rise: 12" (30.5 cm)
- Pullback/Sweep: 8" (20.5 cm)
- Clamping Diameter: 1-1/4" (32 mm)
- Material: Steel
- Color/Finish: Chrome
- Base Color: Silver
- Features: Accepts Heated Grips, Internal Wiring, Pre-Wired
- Units: Kit
Important to know
- Does not replace existing lines and cables, but extends them.
- Heated Grip Extension sold separately.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 802312
- Color finish
- Chrome
- Product name
- Handlebar
- Center width
- 26 cm (10-1/4")
- Rise
- 30,5 cm (12")
- Handlebar diameter
- 38 mm (1-1/2")
- End rise
- 30,5 cm (12")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 32 mm (1-1/4")
- Width
- 89 cm (35")
- Finish
- Chrome
- Material
- Steel
- Features
- Accepts Heated Grips, Internal Wiring, Pre-Wired
- Base color
- Silver
- Units
- Kit
