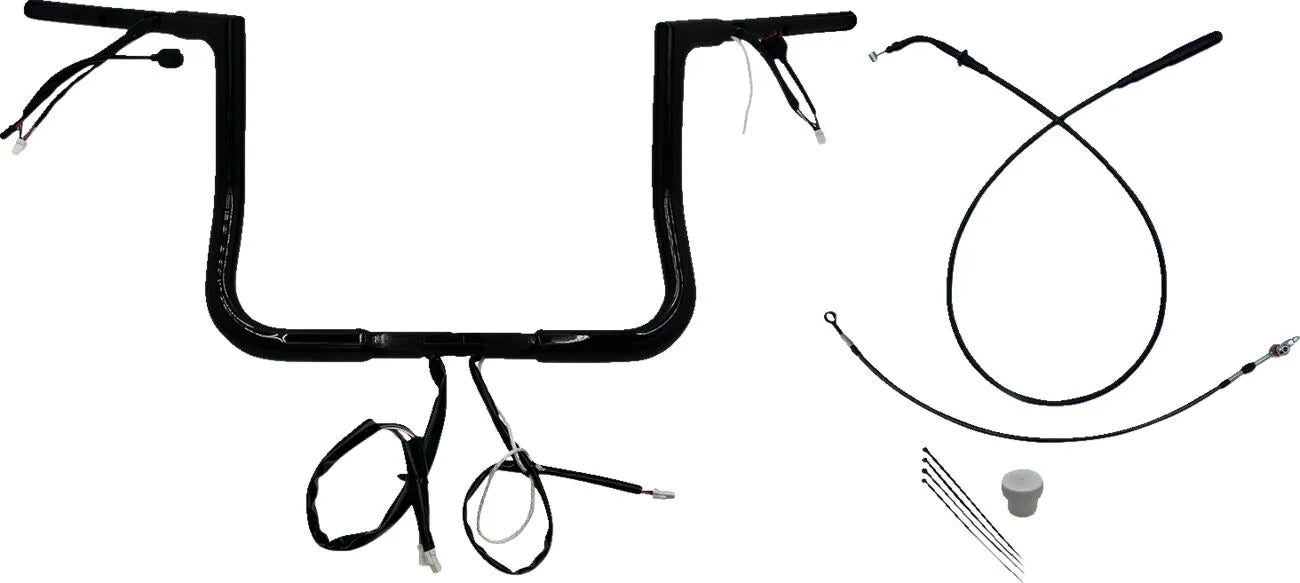

Fat Baggers Inc Flat Top Handlebar Kit - 1-1/4" - 12" Rise - 749012-B
Product info
- Item number
- 06016821
- Manufacturer number
- 749012-B
- Position
- Bar diameter
- 1-1/4" (32 mm)
- Clamp diameter
- 1" (25.4 mm)
- Rise
- 12" (30.5 cm)
- Width
- 36" (91.5 cm)
- Pullback
- 9" (23 cm)
- Features
- Notched for throttle-by-wire · Pre-drilled for internal wiring · Accepts heated grips · Knurled
Upgrade your ride with the Fat Baggers Inc. 1-1/4" Flat Top Handlebar. This innovative handlebar combines ease of installation with rugged construction, providing enhanced comfort and control for your motorcycle. Experience the difference that premium quality and thoughtful design can make on your next ride.
Description
The Fat Baggers Inc. Flat Top Handlebar features a bolt-together, two-piece design, simplifying shipping and installation. CNC mandrel-bent from heavy-duty 1-1/4" diameter steel tubing with a .120" wall, these handlebars offer superior strength and durability. The EZ install design eliminates the struggle with internal wiring, allowing you to complete the wiring in minutes. The bar's squared lower bend includes additional slots to further ease wire routing. Knurled for secure mounting and notched for throttle-by-wire (TBW) applications, these handlebars are proudly made in the USA and accept OEM heated grips. The 32 mm (1-1/4") diameter provides a comfortable and commanding grip.
Features & highlights
- Bolt-together design for easy shipping and installation.
- CNC mandrel-bent from 1-1/4" heavy-duty steel tubing for strength.
- EZ install design simplifies internal wiring.
- Squared lower bend with additional slots for easy wire routing.
- Knurled for secure mounting and notched for TBW applications.
- Accepts OEM heated grips for added comfort.
- Made in the USA, ensuring top-quality craftsmanship.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Handlebar Diameter: 32 mm (1-1/4")
- Clamping Diameter: 25.4 mm (1")
- Controls Diameter: 25.4 mm (1")
- Type/Bend: Ape Hanger
- Base Color: Black
- Color/Finish: Black
- Material: Steel
- Width: 91.5 cm (36")
- Rise: 30.5 cm (12")
- Pullback/Sweep: 23 cm (9")
- Center Width: 39.5 cm (15-1/2")
- Features: Knurled Center, Accepts Heated Grips, Notched for Throttle-By-Wire, Internal Wiring, Pre-Wired
Important to know
Ensure compatibility with your motorcycle model before purchase. Professional installation is recommended for optimal performance and safety.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 749012-B
- Color finish
- Black
- Product name
- Handlebar
- Center width
- 39,5 cm (15-1/2")
- Rise
- 30,5 cm (12")
- Handlebar diameter
- 32 mm (1-1/4")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 25,4 mm (1")
- Width
- 91,5 cm (36")
- Material
- Steel
- Features
- Knurled Center, Accepts Heated Grips, Notched for Throttle-By-Wire, Internal Wiring, Pre-Wired
- Base color
- Black
- Units
- Each
