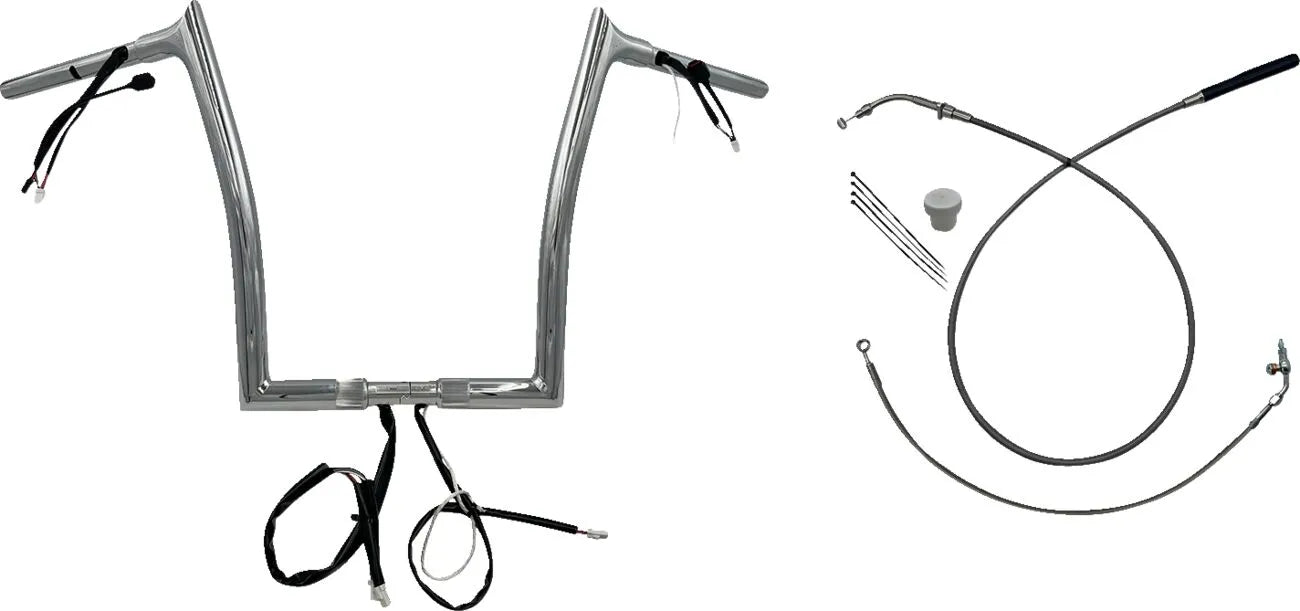

Fat Baggers Inc Ape Hanger Kit - 1-1/4" - 14" Rise - Chrome - 949914
Product info
- Item number
- 06016834
- Manufacturer number
- 949914
- Position
- Bar diameter
- 1-1/4" (32 mm)
- Rise
- 14" (35.5 cm)
- Width
- 35" (89 cm)
- Pullback
- 8" (20.5 cm)
- Features
- Notched for throttle-by-wire · Pre-drilled for internal wiring · Accepts heated grips · Knurled
Upgrade your ride with the Fat Baggers Inc. 1-1/4" EZ Install Pointed Top Handlebar. This innovative handlebar combines ease of installation with premium construction, providing enhanced comfort and style for your motorcycle. Experience simplified wiring and a bold new look with this top-quality handlebar.
Description
The Fat Baggers Inc. EZ Install Handlebar features a bolt-together two-piece design, which not only reduces shelf space but also makes shipping and installation significantly easier. Constructed from heavy-duty 1-1/4" diameter steel tubing with a .120" wall thickness, these handlebars are CNC mandrel-bent for precision and durability. The unique EZ install design eliminates the hassle of fighting with internal wiring, allowing you to complete the wiring in minutes. A billet machined top with a large internal machined radius facilitates easy wire pulling, while the "squared" lower bend incorporates additional slots for efficient wire routing. These handlebars are knurled and notched for throttle-by-wire (TBW) applications and are proudly made in the USA. They also accept OEM heated grips for added comfort during cooler rides. Finished in chrome for a sleek, custom look.
Features & highlights
- Simplified installation with bolt-together, two-piece design.
- EZ Install allows for quick and easy internal wiring.
- Billet machined top with large internal radius for smooth wire pulling.
- Knurled center and notched for throttle-by-wire (TBW) compatibility.
- Accepts OEM heated grips for added rider comfort.
- Constructed from heavy-duty 1-1/4" diameter steel tubing.
- Made in the USA for superior quality and craftsmanship.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Handlebar Type/Bend: Ape Hanger
- Finish: Chrome
- Material: Steel
- Handlebar Diameter: 1-1/4" (32 mm)
- Controls Diameter: 1" (25.4 mm)
- Center Width: 10-1/4" (26 cm)
- Width: 35" (89 cm)
- End Rise: 14" (35.5 cm)
- Pullback/Sweep: 8" (20.5 cm)
- Features: Knurled Center, Accepts Heated Grips, Notched for Throttle-By-Wire, Internal Wiring, Pre-Wired
Important to know
Ensure proper fitment and compatibility with your motorcycle before installation. Professional installation is recommended.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 949914
- Color finish
- Chrome
- Product name
- Handlebar
- Center width
- 26 cm (10-1/4")
- Handlebar diameter
- 32 mm (1-1/4")
- End rise
- 35,5 cm (14")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 32 mm (1-1/4")
- Width
- 89 cm (35")
- Finish
- Chrome
- Material
- Steel
- Features
- Knurled Center, Accepts Heated Grips, Notched for Throttle-By-Wire, Internal Wiring, Pre-Wired
- Base color
- Silver
- Units
- Each
