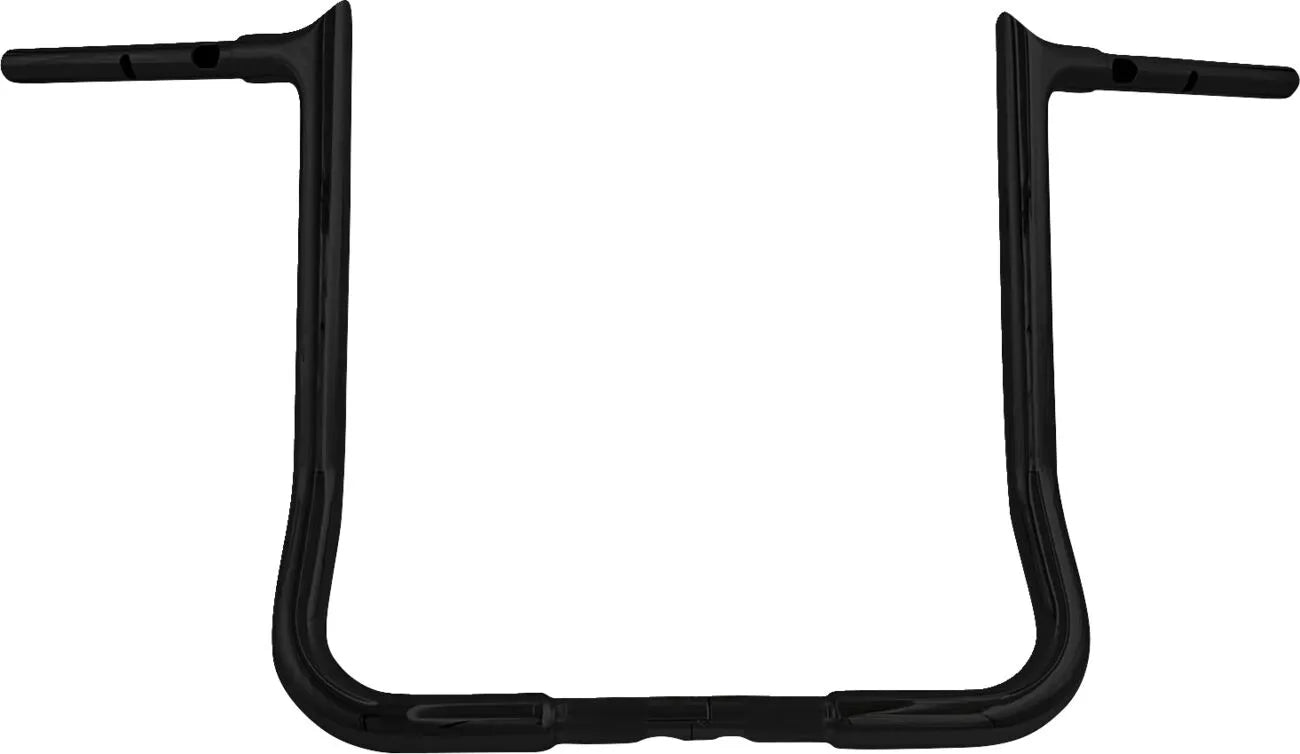

Fat Baggers Inc Pointed Top Ape Hanger - 1-1/4" - 16" Rise - 945016-B
Product info
- Item number
- 06016357
- Manufacturer number
- 945016-B
- Position
- Bar diameter
- 1-1/4" (32 mm)
- Clamp diameter
- 1" (25.4 mm)
- Rise
- 16" (40.5 cm)
- Width
- 36" (91.5 cm)
- Pullback
- 9" (23 cm)
- Features
- Notched for throttle-by-wire · Pre-drilled for internal wiring · Accepts heated grips · Knurled
Upgrade your ride with the Fat Baggers Inc. 1-1/4" EZ Install Pointed Top Handlebar. This handlebar combines innovative design with ease of installation, giving you both style and convenience. Experience superior control and a custom look with this high-quality handlebar.
Description
The Fat Baggers Inc. 1-1/4" EZ Install Pointed Top Handlebar features a bolt-together, two-piece design, making it easy to ship and install. CNC mandrel-bent from 1-1/4" diameter x .120" wall heavy tube, these handlebars offer exceptional strength and durability. The EZ install design eliminates the struggle with internal wiring, allowing you to complete the wiring in minutes. The billet machined top features a large internal machined radius, further simplifying wire pulling with its non-welded top corner. The squared lower bend includes additional slots for enhanced wire routing. These handlebars are knurled and notched for throttle-by-wire (TBW) applications and are proudly made in the USA. They also accept OEM heated grips for added comfort. The 32mm (1-1/4") diameter provides a bold look and enhanced control.
Features & highlights
- Bolt-together two-piece design for easy shipping and installation.
- CNC mandrel-bent from 1-1/4" heavy-duty steel tubing for superior strength.
- EZ install design simplifies internal wiring, saving you time and effort.
- Billet machined top with a large internal radius for easy wire pulling.
- Knurled center and notched for throttle-by-wire (TBW) compatibility.
- Accepts OEM heated grips for added rider comfort.
- Made in the USA, ensuring top-notch quality and craftsmanship.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Handlebar Diameter: 32 mm (1-1/4")
- Clamping Diameter: 25,4 mm (1")
- Center Width: 39,5 cm (15-1/2")
- Width: 91,5 cm (36")
- End Rise: 40,5 cm (16")
- Pullback/Sweep: 23 cm (9")
- Type/Bend: Ape Hanger
- Material: Steel
- Color/Finish: Black, Gloss
- Base Color: Black
- Features: Knurled Center, Accepts Heated Grips, Notched for Throttle-By-Wire, Internal Wiring
Important to know
No additional hardware is included. Verify fitment before installation.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 945016-B
- Color finish
- Black, Gloss
- Product name
- Handlebar
- Center width
- 39,5 cm (15-1/2")
- Handlebar diameter
- 32 mm (1-1/4")
- End rise
- 40,5 cm (16")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 25,4 mm (1")
- Width
- 91,5 cm (36")
- Finish
- Gloss
- Material
- Steel
- Features
- Knurled Center, Accepts Heated Grips, Notched for Throttle-By-Wire, Internal Wiring
- Base color
- Black
- Units
- Each
