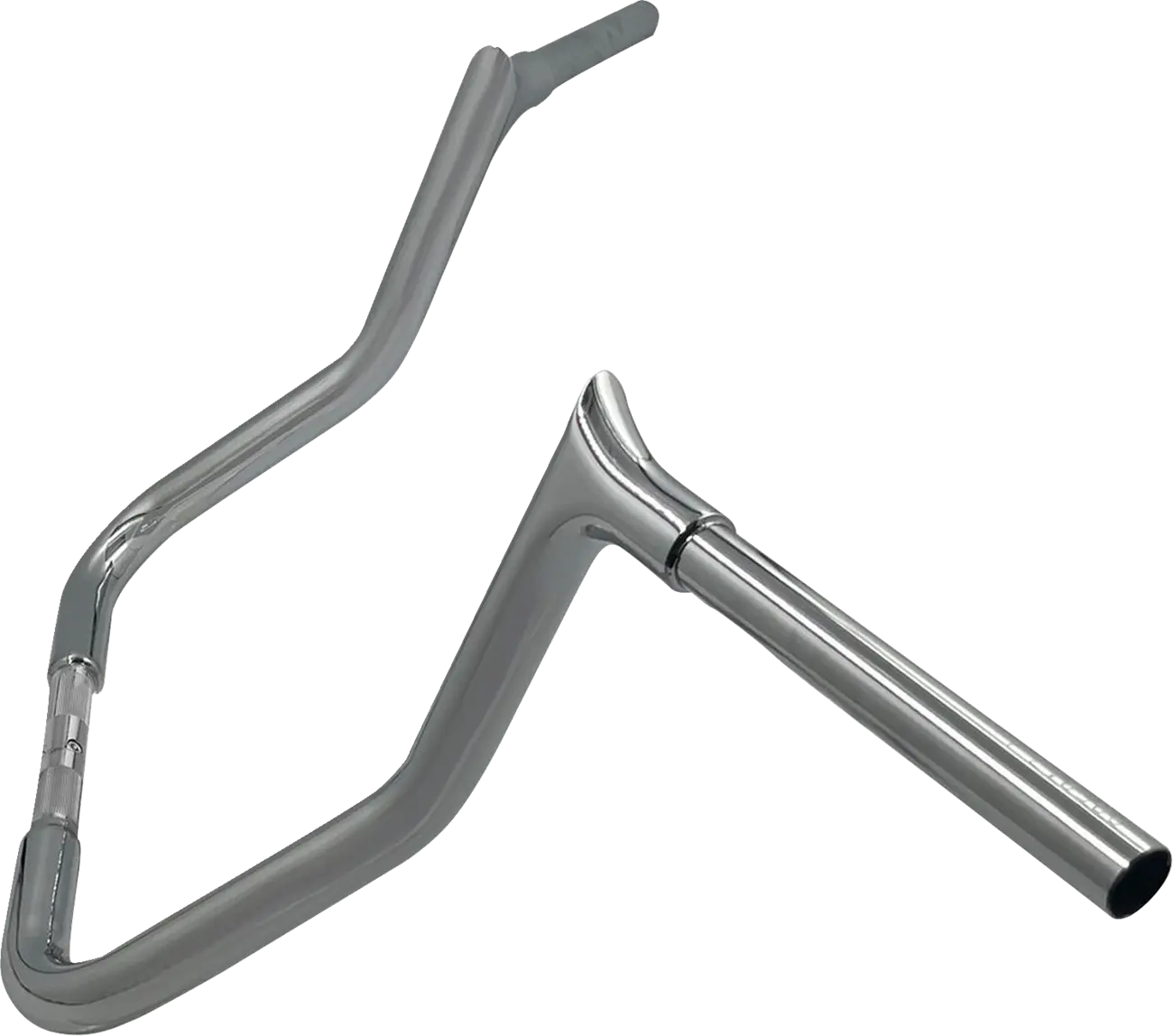

Fat Baggers Inc Ape Hanger - 1-1/4" - 13" Rise - Chrome - 905013
Product info
- Item number
- 06016921
- Manufacturer number
- 905013
- Position
- Bar diameter
- 1-1/4" (32 mm)
- Clamp diameter
- 1" (25.4 mm)
- Rise
- 13" (33 cm)
- Width
- 34" (86.5 cm)
- Pullback
- 12" (30.5 cm)
- Features
- Notched for throttle-by-wire · Pre-drilled for internal wiring · Accepts heated grips · Knurled
Upgrade your motorcycle with the Fat Baggers Inc. 1-1/4" EZ Install Pointed Top Handlebar. This innovative handlebar combines ease of installation with exceptional quality and style. The unique bolt-together two-piece design not only simplifies shipping and storage but also dramatically speeds up the installation process, saving you valuable time.
Description
Crafted from heavy-duty 1-1/4" diameter steel tubing with a .120" wall thickness, this handlebar is CNC mandrel-bent for precision and durability. The "squared" lower bend and additional slots facilitate effortless wire routing, while the billet machined top features a large internal machined radius for easy wire pulling. No more struggling with internal wiring – the EZ install design allows you to complete the wiring in minutes. Designed for throttle-by-wire (TBW) applications, these handlebars are knurled and notched for a secure and comfortable grip. The chrome finish adds a touch of brilliance to your bike. Experience the difference in performance and convenience with Fat Baggers Inc.
Features & highlights
- EZ Install design simplifies installation and saves time.
- Billet machined top with large internal radius for easy wire pulling.
- "Squared" lower bend with additional slots for efficient wire routing.
- Knurled and notched for Throttle-By-Wire (TBW) applications.
- Durable 1-1/4" diameter steel construction.
- Accepts OEM heated grips for added comfort.
- Made in the USA, ensuring top-quality craftsmanship.
Technical specifications
- Brand: FAT BAGGERS INC.
- Product Name: Handlebar
- Handlebar Diameter: 1-1/4" (32 mm)
- Clamping Diameter: 1" (25,4 mm)
- Controls Diameter: 1" (25,4 mm)
- Type/Bend: Ape Hanger
- Finish: Chrome
- Color/Finish: Chrome
- Material: Steel
- Width: 34" (86,5 cm)
- Center Width: 15-1/2" (39,5 cm)
- End Rise: 13" (33 cm)
- Pullback/Sweep: 12" (30,5 cm)
- Features: Notched for Throttle-By-Wire, Internal Wiring, Accepts Heated Grips, Knurled Center
- Units: Each
Important to know
This handlebar accepts OEM heated grips.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 905013
- Color finish
- Chrome
- Product name
- Handlebar
- Center width
- 39,5 cm (15-1/2")
- Handlebar diameter
- 32 mm (1-1/4")
- End rise
- 33 cm (13")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 25,4 mm (1")
- Width
- 86,5 cm (34")
- Finish
- Chrome
- Material
- Steel
- Features
- Notched for Throttle-By-Wire, Internal Wiring, Accepts Heated Grips, Knurled Center
- Base color
- Silver
- Units
- Each
