Fat Baggers Inc EZ Ape Hanger - 1-1/4" - 14" Rise - Chrome - 905014
Product info
- Item number
- 06014750
- Manufacturer number
- 905014
- Position
- Bar diameter
- 1-1/4" (32 mm)
- Clamp diameter
- 1" (25.4 mm)
- Rise
- 14" (35.5 cm)
- Width
- 36" (91.5 cm)
- Pullback
- 9" (23 cm)
- Features
- Notched for throttle-by-wire · Pre-drilled for internal wiring · Accepts heated grips · Knurled
Upgrade your ride with the Fat Baggers Inc. 1-1/4" EZ Install Pointed Top Handlebar. This innovative handlebar combines ease of installation with exceptional quality and a striking design. Experience improved control, comfort, and style on your motorcycle.
Description

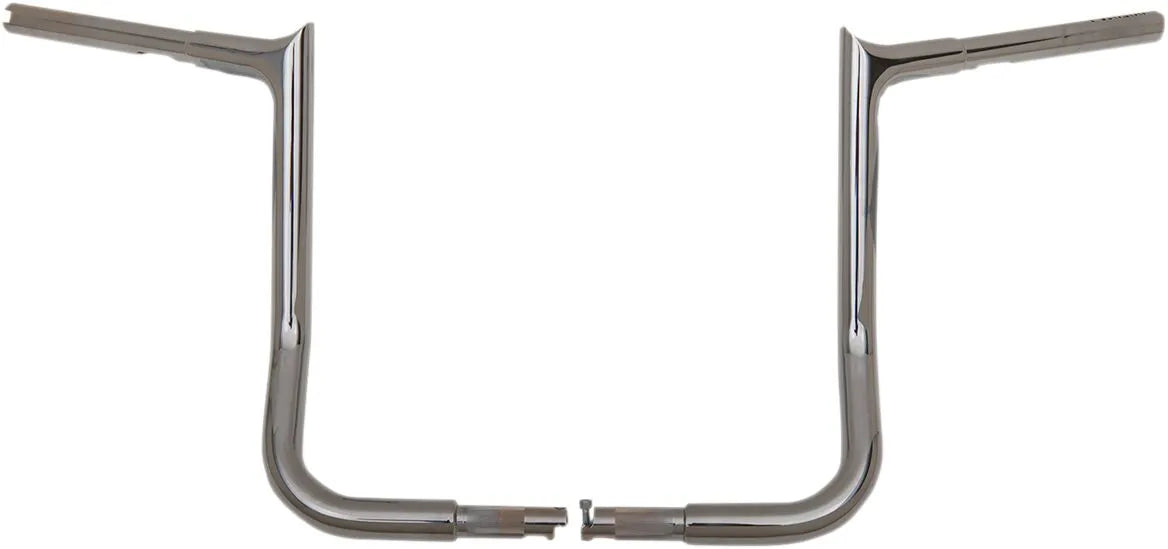

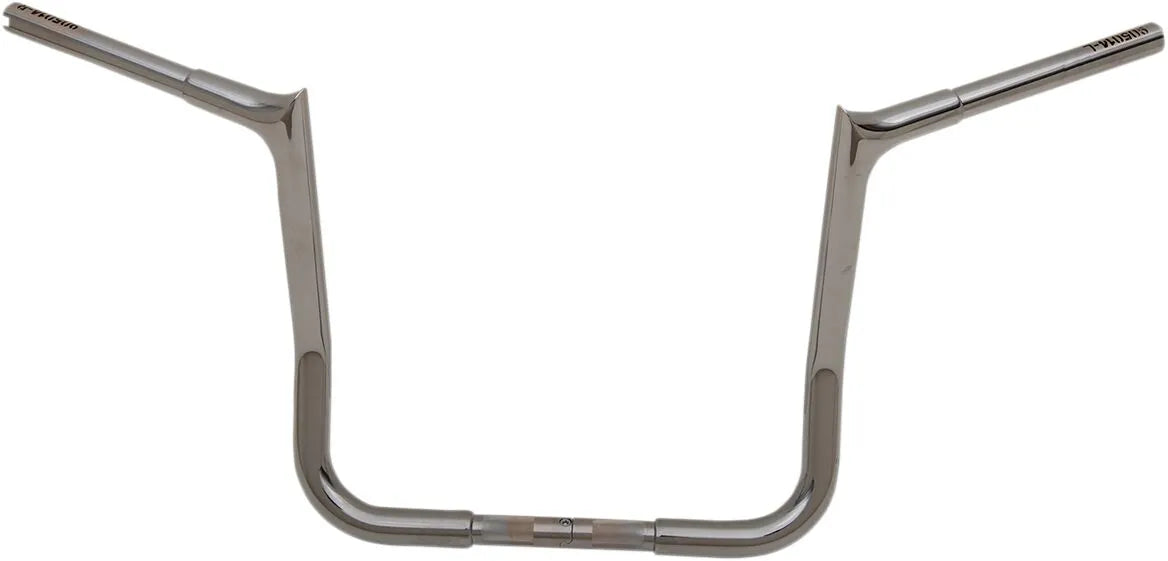

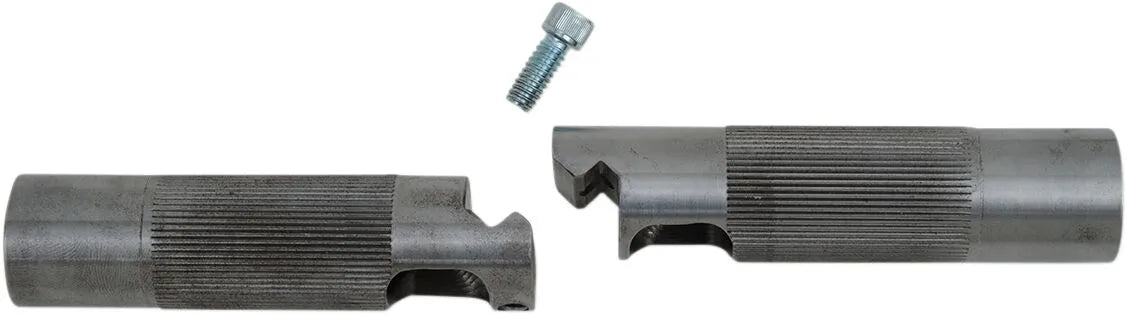

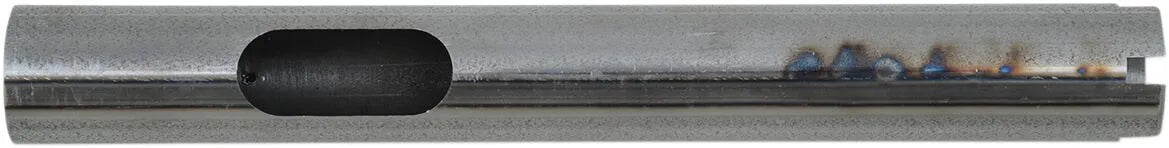

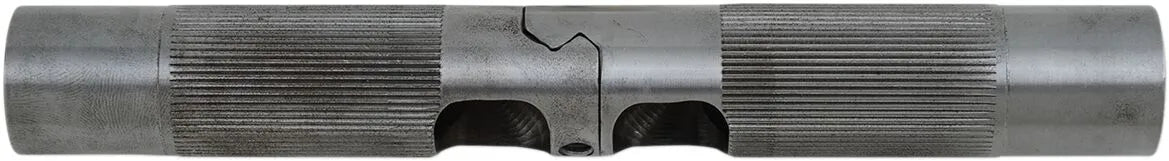

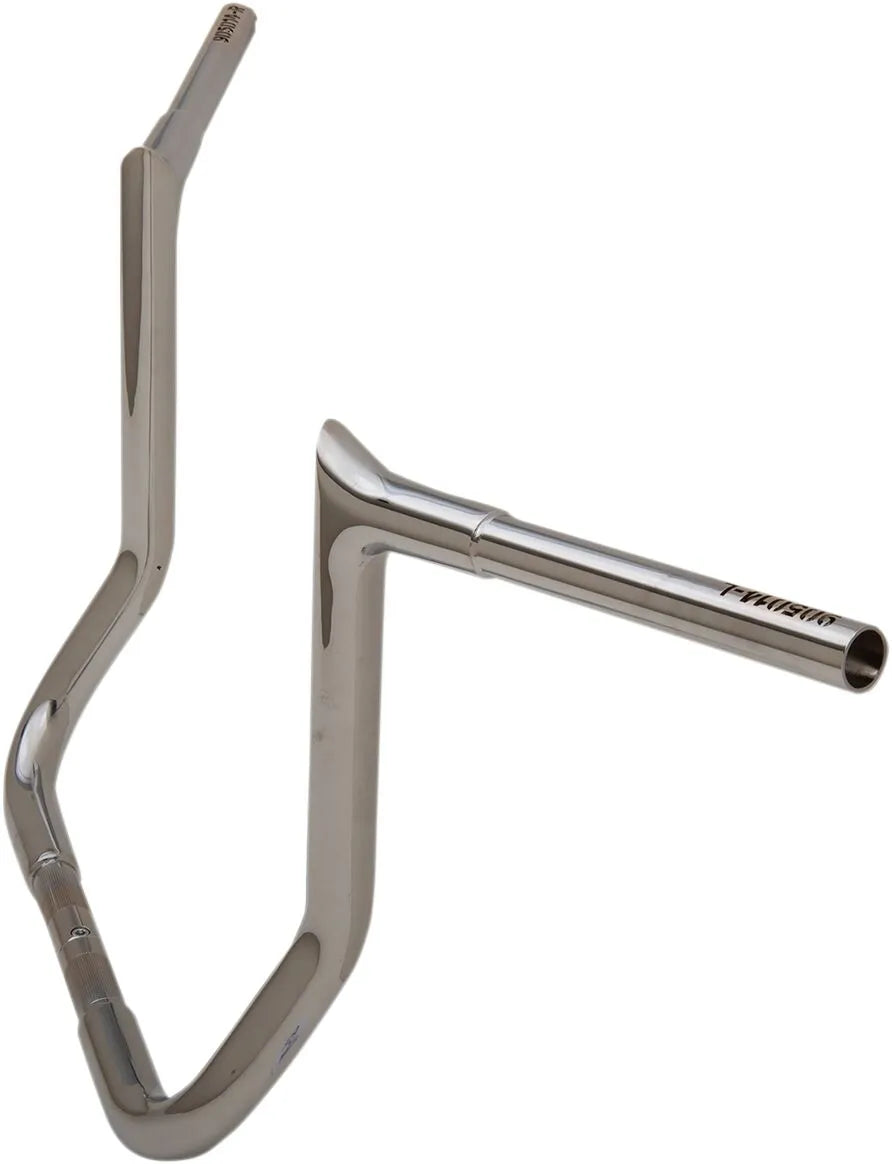

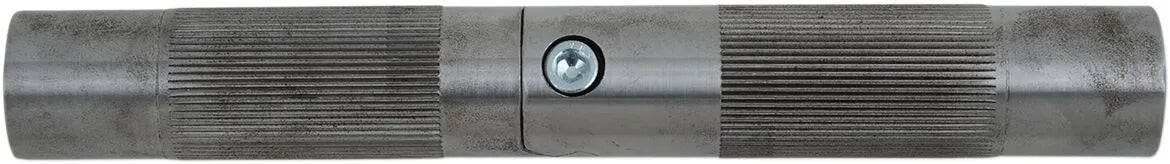

Crafted from robust 1-1/4" diameter steel tubing, these handlebars are CNC mandrel-bent to ensure precision and durability. The unique bolt-together two-piece design not only simplifies shipping and storage but also significantly speeds up installation. Say goodbye to wrestling with internal wiring – the EZ install design, featuring a billet machined top with a large internal machined radius and additional slots in the "squared" lower bend, allows for effortless wire routing. These handlebars are knurled and notched for throttle-by-wire (TBW) applications and are compatible with OEM heated grips, providing both comfort and functionality. With a 36" width, 14" end rise, and 9" pullback, these ape hanger style handlebars offer an aggressive and comfortable riding position. Finished in chrome for a sleek, custom look that will turn heads.Features & highlights
- EZ Install Design: Spend less time installing and more time riding with the innovative bolt-together design.
- Simplified Wiring: Large internal machined radius and strategically placed slots make wiring a breeze.
- Durable Construction: CNC mandrel-bent from 1-1/4" diameter steel for lasting performance.
- TBW Compatible: Knurled and notched for seamless integration with throttle-by-wire systems.
- Heated Grip Ready: Accepts OEM heated grips for added comfort in cooler conditions.
- Made in the USA: Crafted with pride and precision in the United States.
- Aggressive Style: Ape hanger design provides a bold, custom look.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Type/Bend: Ape Hanger
- Color/Finish: Chrome
- Material: Steel
- Handlebar Diameter: 1-1/4" (32 mm)
- Clamping Diameter: 1" (25.4 mm)
- Width: 36" (91.5 cm)
- End Rise: 14" (35.5 cm)
- Pullback/Sweep: 9" (23 cm)
- Center Width: 15-1/2" (39,5 cm)
- Features: Notched for Throttle-By-Wire, Internal Wiring, Accepts Heated Grips, Knurled Center
Important to know
- Check compatibility with your specific motorcycle model before installation.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 905014
- Color finish
- Chrome
- Product name
- Handlebar
- Center width
- 39,5 cm (15-1/2")
- Handlebar diameter
- 32 mm (1-1/4")
- End rise
- 35,5 cm (14")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 25,4 mm (1")
- Width
- 91,5 cm (36")
- Finish
- Chrome
- Material
- Steel
- Features
- Notched for Throttle-By-Wire, Internal Wiring, Accepts Heated Grips, Knurled Center
- Base color
- Silver
- Units
- Each
