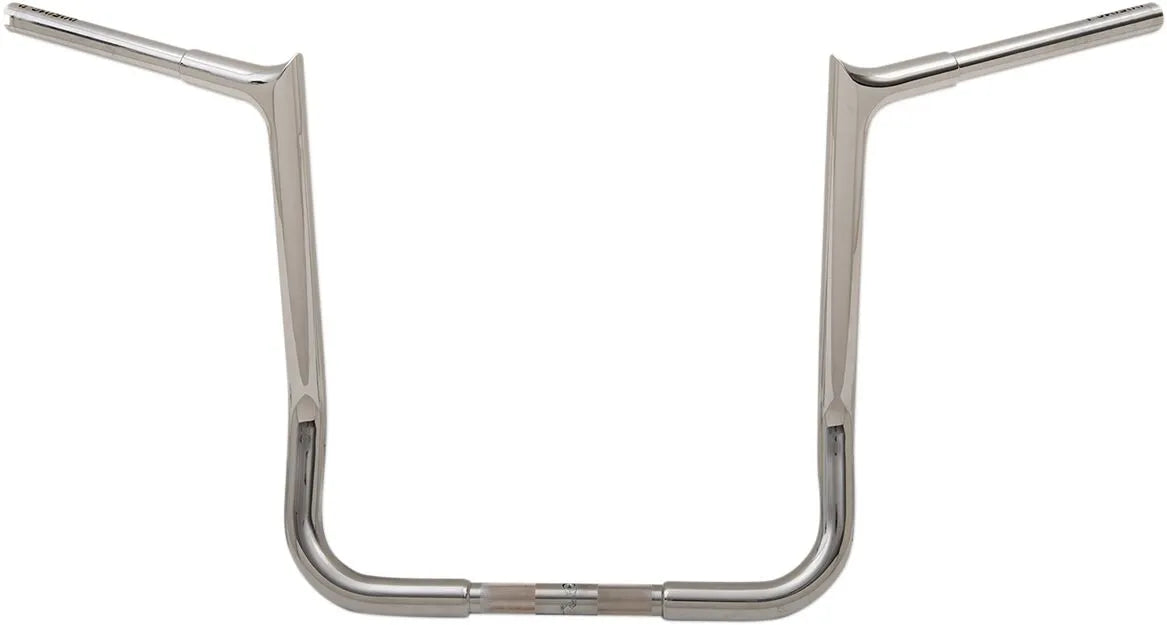

Fat Baggers Inc EZ Ape Hanger - 1-1/4" - 16" Rise - Chrome - 905016
Product info
- Item number
- 06014752
- Manufacturer number
- 905016
- Position
- Bar diameter
- 1-1/4" (32 mm)
- Clamp diameter
- 1" (25.4 mm)
- Rise
- 16" (40.5 cm)
- Width
- 36" (91.5 cm)
- Pullback
- 9" (23 cm)
- Features
- Notched for throttle-by-wire · Pre-drilled for internal wiring · Accepts heated grips · Knurled
Upgrade your ride with the Fat Baggers Inc. 1-1/4" EZ Install Pointed Top Handlebar. This innovative handlebar combines ease of installation with superior quality, giving you the perfect blend of form and function. Experience enhanced control and a custom look that sets your motorcycle apart.
Description

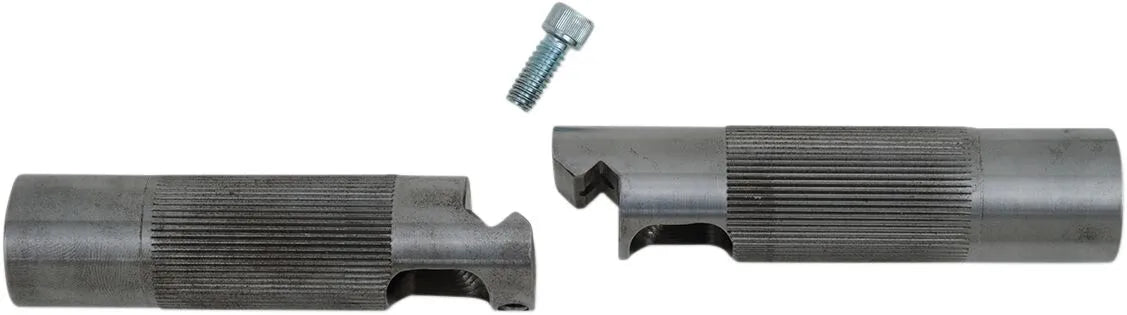

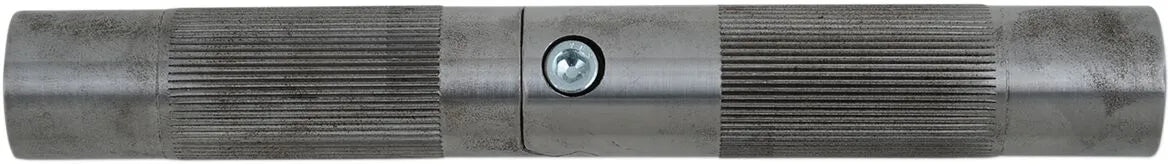

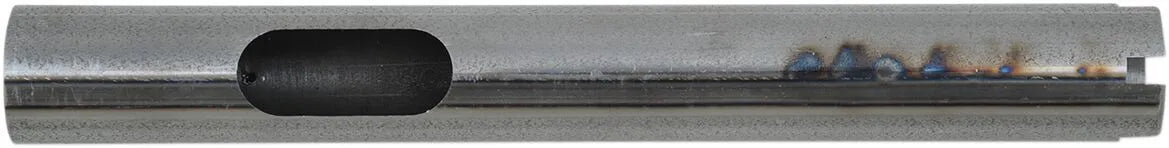

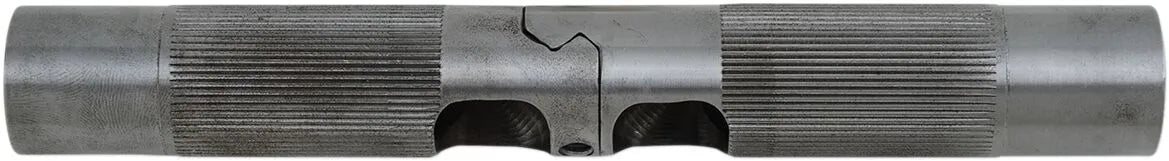

The Fat Baggers Inc. 1-1/4" Handlebar features a bolt-together, two-piece design, making it easy to ship and quick to install. CNC mandrel-bent from 1-1/4" diameter x .120" wall heavy tube, these handlebars provide exceptional strength and durability. The "squared" lower bend includes additional slots for simplified wire routing, while the billet machined top with a large internal machined radius allows for effortless wiring. These bars are knurled and notched for Throttle-By-Wire (TBW) applications and accept OEM heated grips. Finished in chrome, this ape hanger style handlebar will add a custom look to your bike.
Features & highlights
- EZ Install design simplifies internal wiring, saving you time and effort.
- Two-piece, bolt-together construction for easy shipping and installation.
- CNC mandrel-bent from 1-1/4" heavy-duty steel for superior strength.
- Billet machined top with large internal radius simplifies wire pulling.
- Knurled and notched for Throttle-By-Wire (TBW) applications.
- Accepts OEM heated grips for added comfort.
- Made in the USA, ensuring top-quality craftsmanship.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Handlebar Diameter: 1-1/4" (32 mm)
- Clamping Diameter: 1" (25.4 mm)
- Width: 36" (91.5 cm)
- End Rise: 16" (40.5 cm)
- Pullback/Sweep: 9" (23 cm)
- Center Width: 15-1/2" (39,5 cm)
- Material: Steel
- Type/Bend: Ape Hanger
- Finish: Chrome
- Features: Notched for Throttle-By-Wire, Internal Wiring, Accepts Heated Grips, Knurled Center
Important to know
- Requires: Check fitment for your specific motorcycle model before purchasing.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 905016
- Color finish
- Chrome
- Product name
- Handlebar
- Center width
- 39,5 cm (15-1/2")
- Handlebar diameter
- 32 mm (1-1/4")
- End rise
- 40,5 cm (16")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 25,4 mm (1")
- Width
- 91,5 cm (36")
- Finish
- Chrome
- Material
- Steel
- Features
- Notched for Throttle-By-Wire, Internal Wiring, Accepts Heated Grips, Knurled Center
- Base color
- Silver
- Units
- Each
