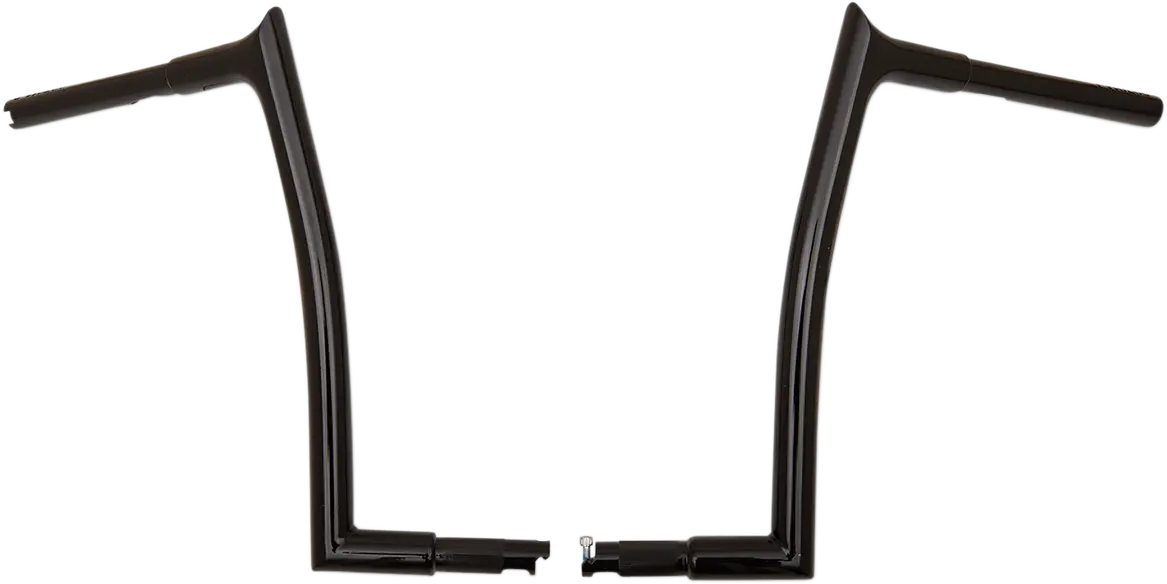

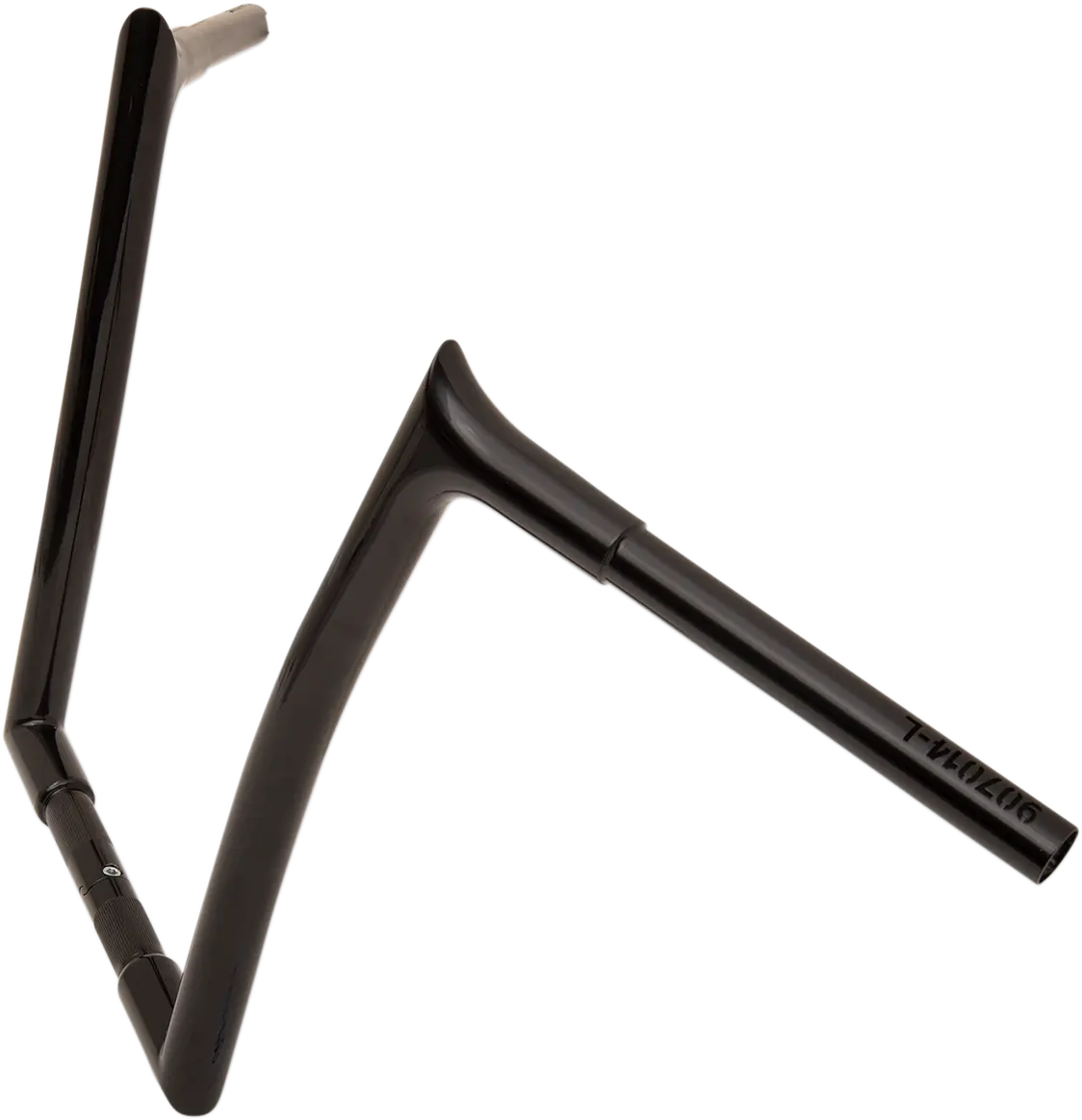

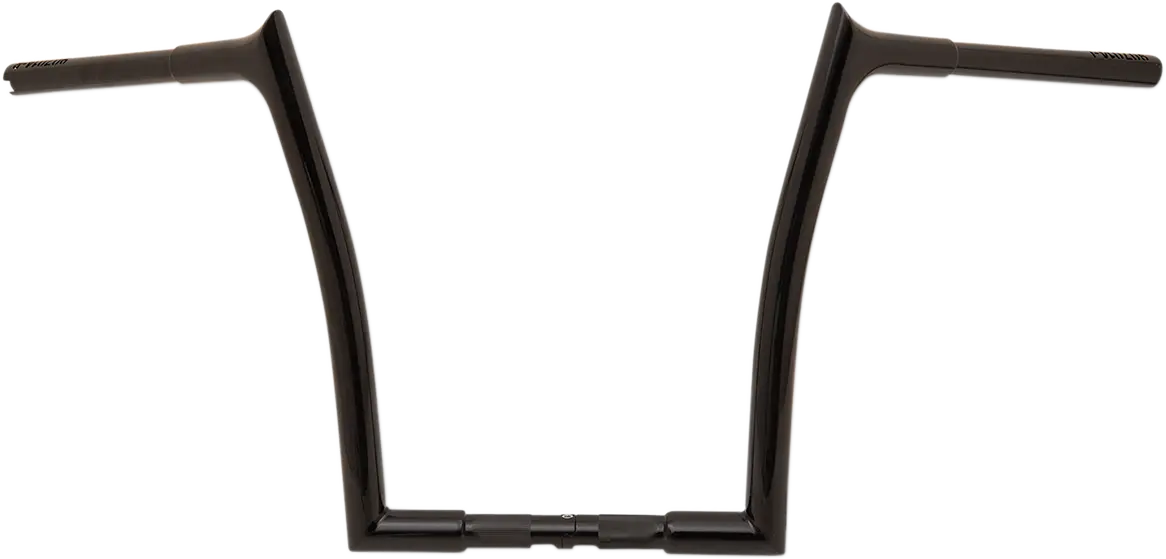

Fat Baggers Inc EZ Ape Hanger Handlebar - 1-1/4" - 14" Rise - 907014-B
Product info
- Item number
- 06014759
- Manufacturer number
- 907014-B
- Position
- Bar diameter
- 1-1/4" (32 mm)
- Clamp diameter
- 1" (25.4 mm)
- Rise
- 14" (35.5 cm)
- Width
- 35" (89 cm)
- Pullback
- 8" (20.5 cm)
- Features
- Notched for throttle-by-wire · Pre-drilled for internal wiring · Accepts heated grips · Knurled
Upgrade your ride with the Fat Baggers Inc. 1-1/4" EZ Install Pointed Top Handlebar. This innovative handlebar combines ease of installation with superior quality, giving you the best of both worlds. Experience improved control and a custom look with this top-of-the-line handlebar.
Description

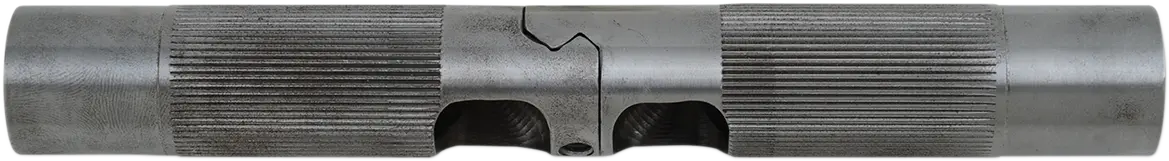

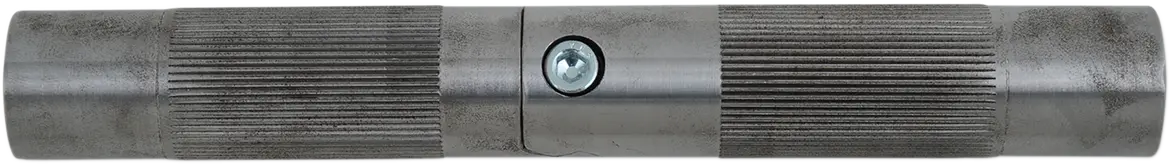

The Fat Baggers Inc. 1-1/4" EZ Install Pointed Top Handlebar features a bolt-together, two-piece design that saves space and simplifies shipping. CNC mandrel-bent from robust 1-1/4" diameter x .120" wall heavy tube, this handlebar offers exceptional durability and a premium feel. The EZ install design eliminates the struggle with internal wiring, allowing for quick and easy installation. A billet machined top with a large internal machined radius simplifies wire pulling, while the squared lower bend includes additional slots for efficient wire routing. Knurled and notched for throttle-by-wire (TBW) applications and compatible with OEM heated grips, this handlebar provides both performance and comfort. Measuring 35" wide with a 10-1/4" center width, this ape hanger style handlebar is proudly made in the USA.
Features & highlights

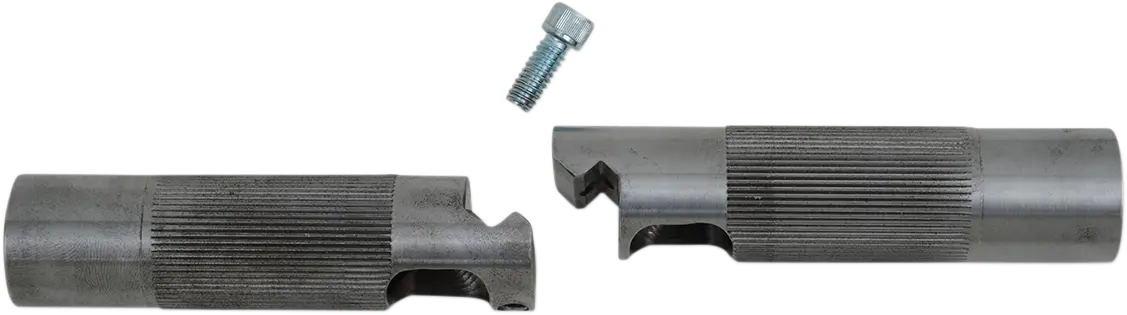

- Bolt-together two-piece design for easy shipping and installation.
- CNC mandrel-bent from 1-1/4" diameter heavy-duty steel tubing.
- EZ install design simplifies internal wiring in minutes.
- Billet machined top with large radius for easy wire pulling.
- Knurled and notched for throttle-by-wire (TBW) applications.
- Compatible with OEM heated grips.
- Made in the USA.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Handlebar Diameter: 1-1/4" (32 mm)
- Clamping Diameter: 1" (25.4 mm)
- Controls Diameter: 1" (25.4 mm)
- Width: 35" (89 cm)
- Center Width: 10-1/4" (26 cm)
- End Rise: 14" (35,5 cm)
- Pullback/Sweep: 8" (20,5 cm)
- Type/Bend: Ape Hanger
- Material: Steel
- Finish: Gloss
- Base Color: Black
- Color/Finish: Black, Gloss
- Features: Knurled Center, Accepts Heated Grips, Notched for Throttle-By-Wire, Internal Wiring
Important to know
Accepts OEM heated grips.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 907014-B
- Color finish
- Black, Gloss
- Product name
- Handlebar
- Center width
- 26 cm (10-1/4")
- Handlebar diameter
- 32 mm (1-1/4")
- End rise
- 35,5 cm (14")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 25,4 mm (1")
- Width
- 89 cm (35")
- Finish
- Gloss
- Material
- Steel
- Features
- Knurled Center, Accepts Heated Grips, Notched for Throttle-By-Wire, Internal Wiring
- Base color
- Black
- Units
- Each
