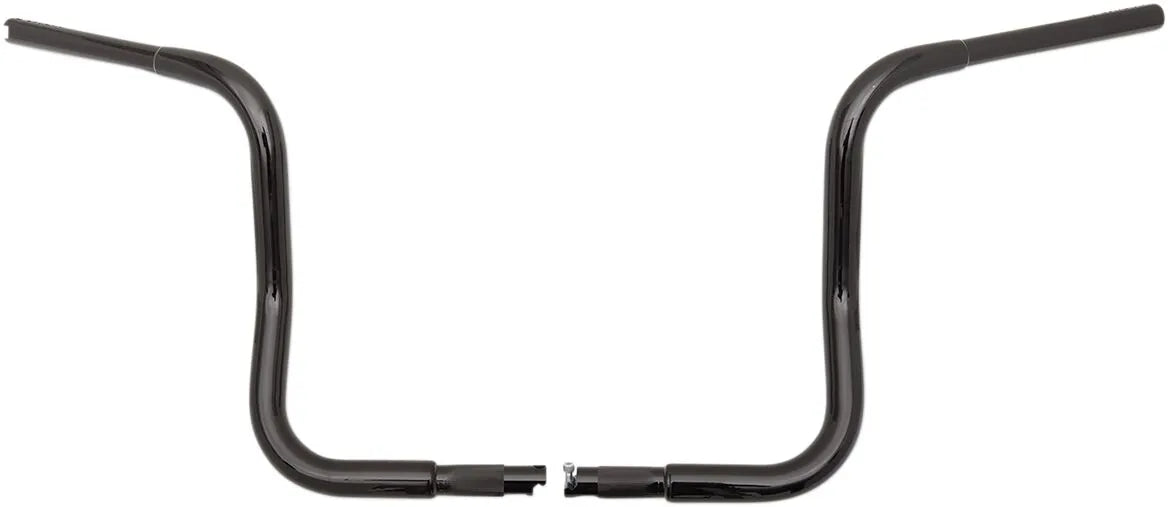

Fat Baggers Inc EZ Ape Hanger Kit - 1-1/4" - 10" Rise - 909410-B
Product info
- Item number
- 06014803
- Manufacturer number
- 909410-B
- Position
- Bar diameter
- 1-1/4" (32 mm)
- Clamp diameter
- 1" (25.4 mm)
- Rise
- 10" (25.5 cm)
- Width
- 36" (91.5 cm)
- Pullback
- 9" (23 cm)
- Features
- Notched for throttle-by-wire · Knurled

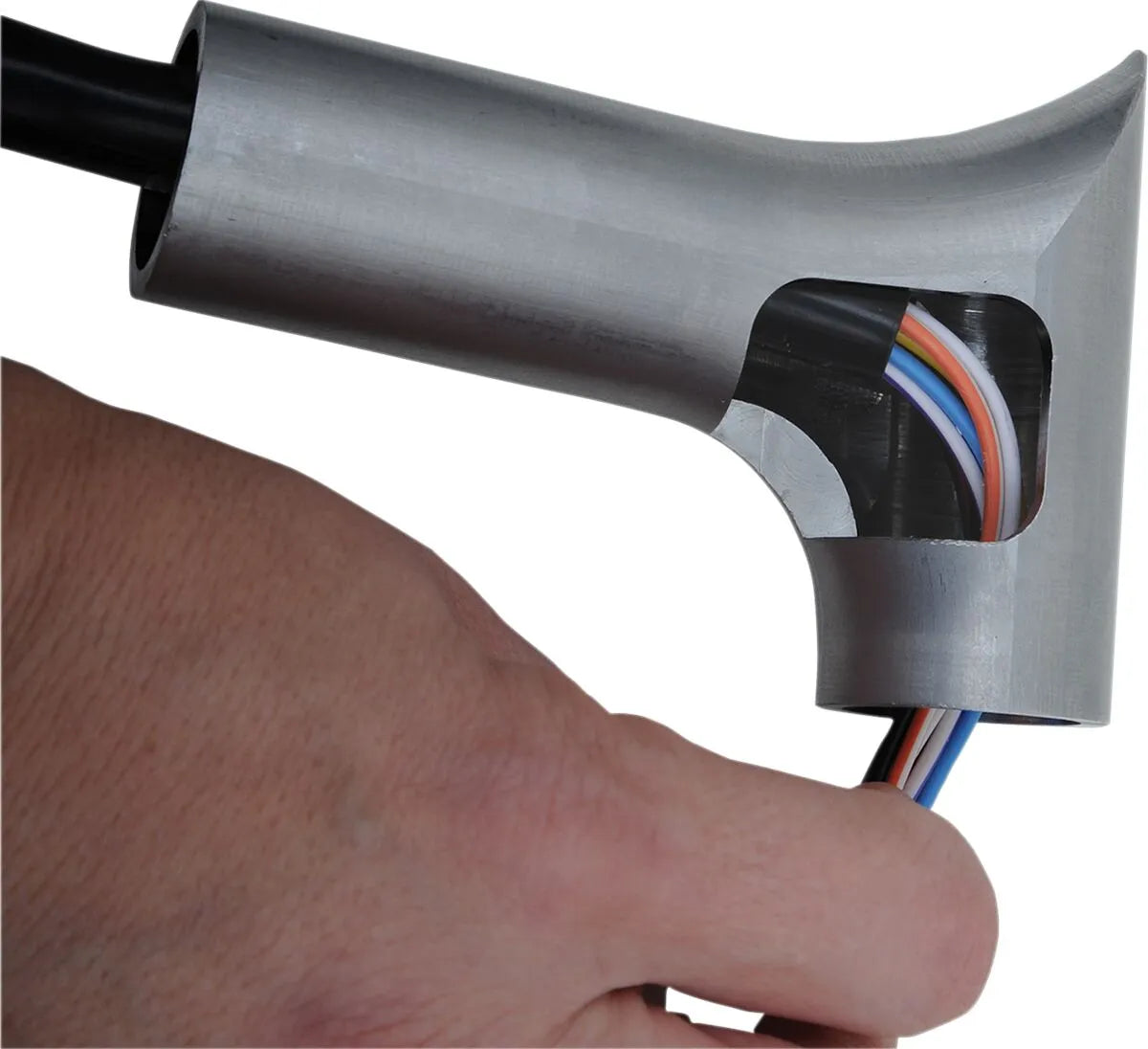

Upgrade your ride with the Fat Baggers Inc. 1-1/4" EZ Install Round Top Handlebar Kit. This kit simplifies the handlebar installation process, eliminating the usual struggles with internal wiring. Now you can route your wires in minutes, saving valuable time and effort.
Description

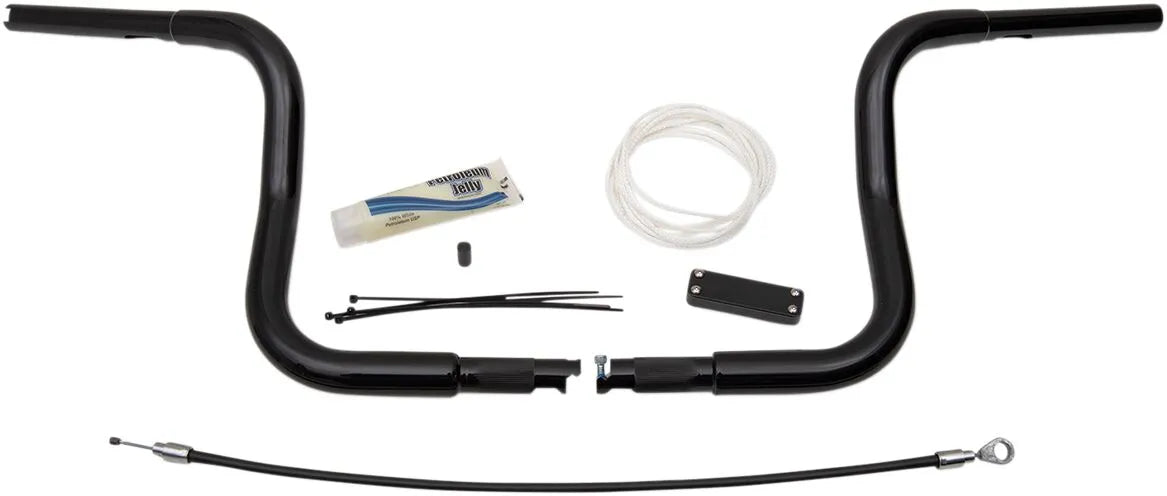

The Fat Baggers Inc. Handlebar Kit includes the necessary components for installing handlebars based on your motorcycle model and handlebar height. Depending on your specific needs, the kit may include a brake line extension, clutch line/cable extension, and wiring harness. Constructed from high-quality, CNC mandrel-bent 1-1/4" diameter x .120" wall heavy-duty steel tubing, these bars offer exceptional strength and durability. The bolt-together, two-piece design not only saves shelf space but also simplifies shipping. Proudly made in the USA, these handlebar kits extend your existing lines, providing the extra length you need for a comfortable and customized riding experience. These ape hanger handlebars offer a comfortable riding position and a bold look for your motorcycle. With knurled centers and throttle-by-wire notches, these handlebars are built for performance and ease of use.
Features & highlights
- EZ Install Design: Simplify internal wiring for faster, hassle-free installation.
- Complete Kit: Includes necessary extensions for brake, clutch, and wiring (when needed).
- Premium Construction: CNC mandrel-bent from 1-1/4" heavy-duty steel for superior strength.

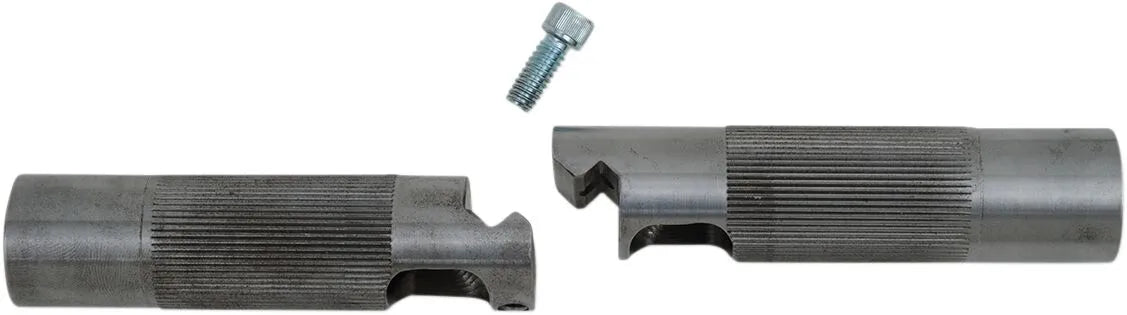

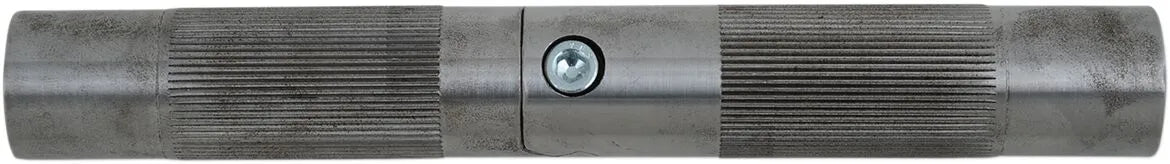

- Space-Saving Design: Two-piece, bolt-together handlebar for easy storage and shipping.
- Made in the USA: Ensures top-notch quality and craftsmanship.
- Enhanced Comfort: Achieve a custom and comfortable riding position.
- Throttle-by-Wire Ready: Notched for modern throttle systems.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- MPN: 06014803
- Base Color: Black
- Finish: Gloss
- Color/Finish: Black, Gloss
- Handlebar Diameter: 1-1/4" (32 mm)
- Clamping Diameter: 1" (25.4 mm)
- Controls Diameter: 1" (25.4 mm)
- End Rise: 10" (25.5 cm)
- Center Width: 15-1/2" (39.5 cm)
- Width: 36" (91.5 cm)
- Pullback/Sweep: 9" (23 cm)
- Type/Bend: Ape Hanger
- Material: Steel
- Features: Knurled Center, Notched for Throttle-By-Wire
- Units: Kit
Important to know
These handlebar kits extend, but do not replace, existing lines.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 909410-B
- Color finish
- Black, Gloss
- Product name
- Handlebar
- Center width
- 39,5 cm (15-1/2")
- Handlebar diameter
- 32 mm (1-1/4")
- End rise
- 25,5 cm (10")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 25,4 mm (1")
- Width
- 91,5 cm (36")
- Height
- 25,5 cm (10")
- Finish
- Gloss
- Material
- Steel
- Features
- Knurled Center, Notched for Throttle-By-Wire
- Base color
- Black
- Units
- Kit
