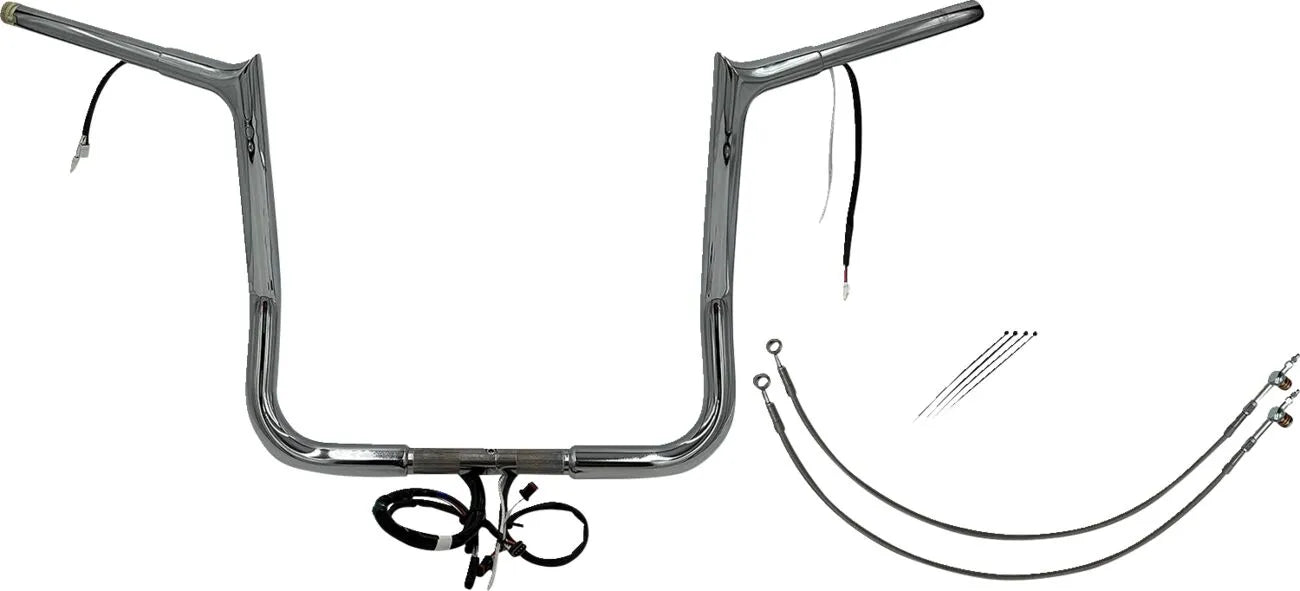

Fat Baggers Inc Pointed Top Handlebar Kit - 1-1/4" - 14" Rise - 902214
Product info
- Item number
- 06016142
- Manufacturer number
- 902214
- Position
- Bar diameter
- 1-1/4" (32 mm)
- Clamp diameter
- 1" (25.4 mm)
- Rise
- 14" (35.5 cm)
- Width
- 36" (91.5 cm)
- Pullback
- 9" (23 cm)
- Features
- Notched for throttle-by-wire · Pre-drilled for internal wiring · Accepts heated grips
Upgrade your motorcycle with the Fat Baggers Inc. Ez Install Wired Handlebar Kit. These handlebars offer a seamless blend of style and functionality. The pre-wired design and billet steel construction makes installation easier and provides long-lasting durability.
Description
The Fat Baggers Inc. Ez Install Wired 1-1/4" Handlebar Kit revolutionizes handlebar installation. These bars come pre-wired for your handlebar controls, including a pre-installed throttle-by-wire sensor, saving you valuable time and hassle. The non-welded top corner, machined from billet steel, features a smooth internal wire cavity, preventing damage to internal wiring during installation. CNC mandrel bending ensures precise and consistent 1-1/4" diameter and 0.120" wall thickness. The bolt-together, two-piece design reduces shelf space while maintaining structural integrity. Compatible with OEM heated grips. These handlebars provide both enhanced aesthetics and improved riding comfort. All '21-'23 kits include black brake lines and black clutch extensions.
Features & highlights
- Pre-wired for handlebar controls, including throttle-by-wire sensor, for quick and easy installation.
- Non-welded top corner machined from billet steel with smooth internal wire cavity protects wiring.
- CNC mandrel bent from 1-1/4" diameter x 0.120" wall heavy-duty steel tubing for strength and durability.
- Bolt-together, 2-piece design simplifies handling and storage.
- Accepts OEM heated grips for added comfort in cold weather.
- Made in the U.S.A. for superior quality and craftsmanship.
- All '21-'23 kits include black brake lines and black clutch extensions.
Technical specifications
- Brand: Fat Baggers Inc.
- Product Name: Handlebar
- Type/Bend: Ape Hanger
- Handlebar Diameter: 1-1/4" (32 mm)
- Clamping Diameter: 1" (25.4 mm)
- Controls Diameter: 1" (25.4 mm)
- Width: 36" (91.5 cm)
- Center Width: 15-1/2" (39.5 cm)
- Rise: 14" (35.5 cm)
- End Rise: 14" (35.5 cm)
- Pullback/Sweep: 9" (23 cm)
- Material: Steel
- Finish: Chrome
- Base Color: Silver
- Features: Accepts Heated Grips, Internal Wiring, Pre-Wired
- Units: Kit
Important to know
This kit extends existing lines and cables; it does not replace them. A heated grip extension is sold separately.
- Brand
- FAT BAGGERS INC.
- Vendor part number
- 902214
- Color finish
- Chrome
- Product name
- Handlebar
- Center width
- 39,5 cm (15-1/2")
- Rise
- 35,5 cm (14")
- Handlebar diameter
- 32 mm (1-1/4")
- End rise
- 35,5 cm (14")
- Controls diameter
- 25,4 mm (1")
- Clamping diameter
- 25,4 mm (1")
- Width
- 91,5 cm (36")
- Finish
- Chrome
- Material
- Steel
- Features
- Accepts Heated Grips, Internal Wiring, Pre-Wired
- Base color
- Silver
- Units
- Kit
