Feuling Twin Cam HP+ Chain Drive Conversion Kit - 7220
Product info
- Item number
- 09251289
- Manufacturer number
- 7220
- Position
Upgrade your early Twin Cam engine with the Feuling Parts HP+ Chain Drive Conversion Kit. This comprehensive kit replaces your old mechanical cam and tensioner setup with a modern hydraulic tensioner system, delivering enhanced performance and reliability.
Description
The Feuling HP+ Chain Drive Conversion Kit is designed to significantly improve the oil pressure and cooling efficiency of your '99-'06 Twin Cam engine (excluding '06 Dyna). Expect to see 15-30 PSI more oil pressure, and 25°-35° cooler engine temperatures. This kit effectively eliminates wet sumping, blow-by, and oily air cleaners, ensuring a cleaner and more efficient engine operation. The conversion camshafts for '99-'06 Twin Cam engines utilize the '99-'06 inner cam journals with the '07-'16 outer cam journals, allowing the use of '07-'16 cam plates, oil pump, hydraulic chain tensioners, and chain drive system. This means increased reliability and performance for your motorcycle. Installation is streamlined with quick-install adjustable pushrods, making the upgrade process straightforward for experienced mechanics.
Features & highlights
- Achieve 25°-35° cooler engine temperatures for improved performance and longevity.
- Experience 15-30 PSI increase in oil pressure, ensuring optimal engine lubrication.
- Effectively eliminate wet sumping, blow-by, and oily air cleaners.

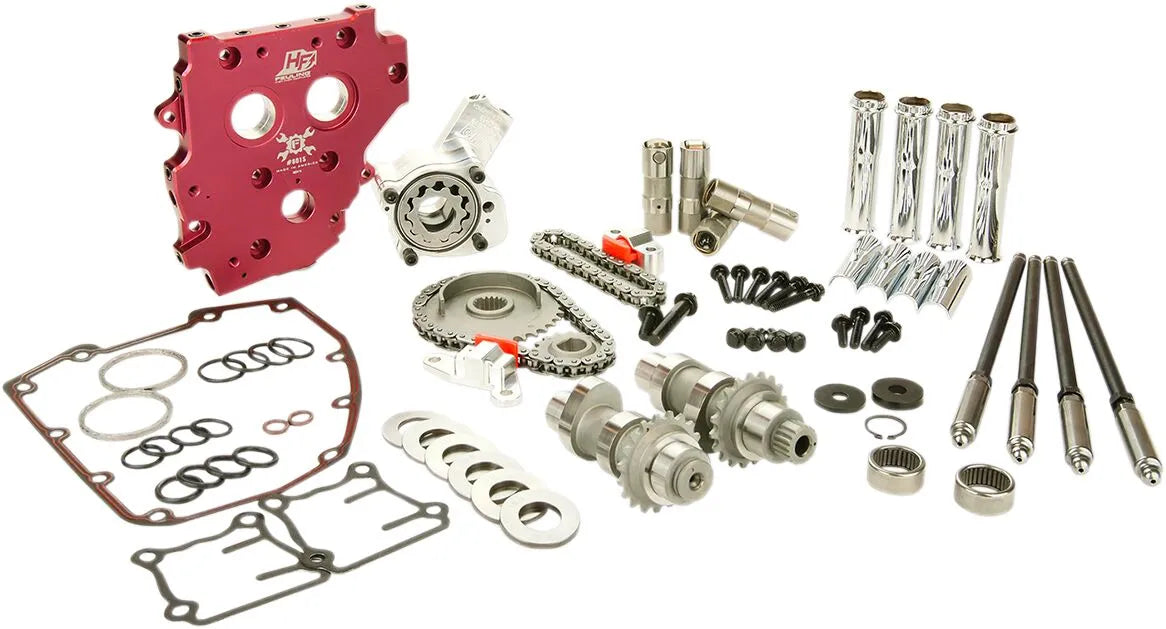

- Includes Feuling HP+® high volume oil pump and High Flow cam plate for superior oil circulation.
- Comes with Reaper® series camshafts and HP+ hydraulic roller lifters for enhanced valve train performance.
- Features quick install adjustable pushrods for easy and precise installation.
- Complete kit with Timken® bearings, gaskets, o-rings, exhaust gaskets, ARP® fasteners, and all necessary hardware.
Technical specifications
- Brand: Feuling Parts
- Type: Chain Conversion Kit
- Application: Intake, Exhaust
- Cam Grind: 525 Series
- Intake Duration: 226°
- Intake Lift: 0.525"
- Intake Lobe Centerline: 109°
- Intake Open: 4°
- Intake Close: 42°
- Intake Lift at TDC: 0.099"
- Exhaust Duration: 236°
- Exhaust Lift: 0.535"
- Exhaust Lobe Centerline: 113°
- Exhaust Open: 51°
- Exhaust Close: 5°
- Exhaust Lift at TDC: 0.112"
- Includes: Quick Install Adjustable Pushrods
Important to know
- Fits: '99-'06 Twin Cam engines, except for '06 Dyna models.
- Brand
- FEULING PARTS
- Vendor part number
- 7220
- Product name
- Camchest Kit
- Intake open
- 4°
- Intake lift at tdc
- 0,099"
- Intake lobe centerline
- 109°
- Intake lift
- 0,525"
- Intake duration
- 226°
- Intake close
- 42°
- Grind
- 525 Series
- Exhaust open
- 51°
- Exhaust lift at tdc
- 0,112"
- Exhaust lobe centerline
- 113°
- Exhaust lift
- 0,535"
- Exhaust duration
- 236°
- Exhaust close
- 5°
- Application
- Intake, Exhaust
- Features
- Quick Install Adjustable Pushrods
- Type
- Chain Conversion
- Units
- Kit
