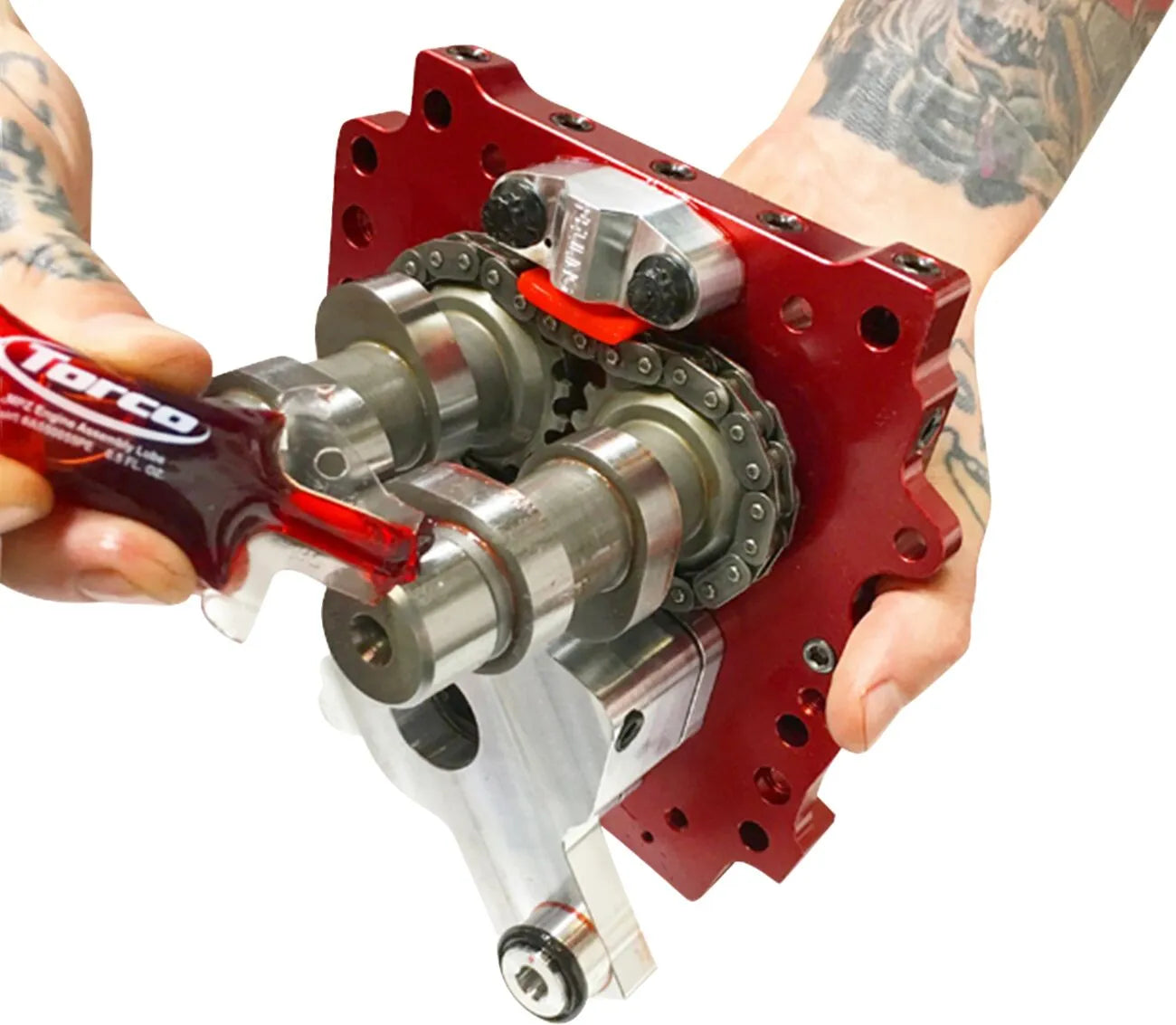

Feuling Twin Cam HP+ Chain Drive Conversion Kit - 7224
Product info
- Item number
- 09251293
- Manufacturer number
- 7224
- Position

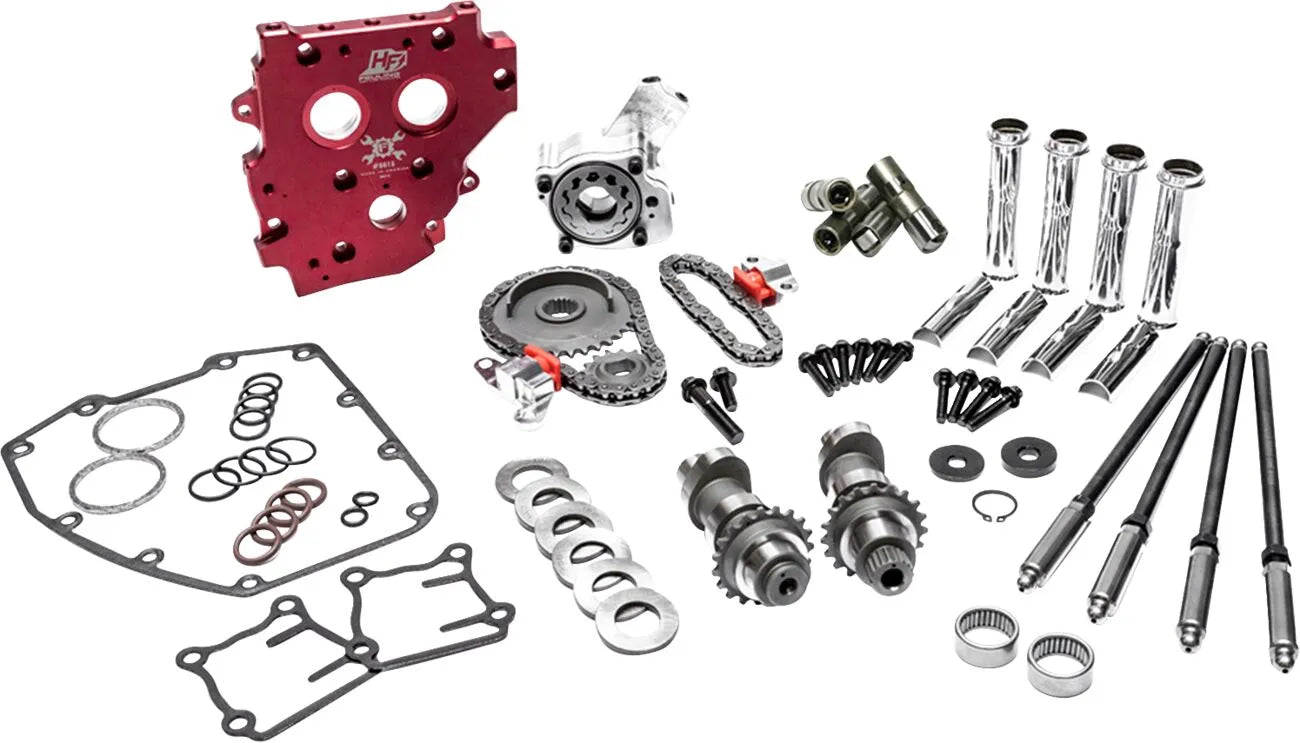

Upgrade your '99-'06 Twin Cam engine (except '06 Dyna) with the Feuling Parts HP+® Chain Drive Conversion Kit, designed to replace outdated mechanical cam and tensioner systems with a modern hydraulic tensioner setup. This comprehensive kit delivers enhanced performance and reliability for your motorcycle.
Description
The Feuling HP+® Chain Drive Conversion Kit not only updates your engine but also improves its efficiency. Experience a significant reduction in engine temperatures, with a decrease of 25°-35°F. Benefit from a notable increase in oil pressure, gaining an additional 15-30 PSI. This kit effectively eliminates wet sumping, blow-by, and oily air cleaners, ensuring a cleaner and more efficient running engine. The conversion camshafts are designed for '99-'06 Twin Cam engines, utilizing '99-'06 inner cam journals and '07-'16 outer cam journals. This allows compatibility with '07-'16 camplates, oil pumps, hydraulic chain tensioners, and chain drive systems. Installation is straightforward, with all necessary components included.
Features & highlights
- Significantly reduces engine temperatures by 25°-35°F for cooler operation.
- Increases oil pressure by 15-30 PSI for improved lubrication.
- Eliminates wet sumping, blow-by, and oily air cleaners for a cleaner engine.
- Includes Reaper® series camshafts for enhanced performance.
- Features HP+® hydraulic roller lifters for reliable valve train operation.
- Comes with quick install adjustable pushrods for easy setup.
- Ensures compatibility with '07-'16 components for a seamless upgrade.
Technical specifications
- Brand: Feuling Parts
- Type: Chain Conversion Kit
- Grind: 543 Series
- Intake Open: 15°
- Intake Close: 43°
- Intake Duration: 238°
- Intake Lift: 0.543"
- Intake Lift at TDC: 0.160"
- Intake Lobe Centerline: 104°
- Exhaust Open: 56°
- Exhaust Close: 12°
- Exhaust Duration: 248°
- Exhaust Lift: 0.553"
- Exhaust Lift at TDC: 0.140"
- Exhaust Lobe Centerline: 112°
Important to know
This kit is designed for '99-'06 Twin Cam engines, except for '06 Dyna models.
- Brand
- FEULING PARTS
- Vendor part number
- 7224
- Product name
- Camchest Kit
- Intake open
- 15°
- Intake lift at tdc
- 0,160"
- Intake lobe centerline
- 104°
- Intake lift
- 0,543"
- Intake duration
- 238°
- Intake close
- 43°
- Grind
- 543 Series
- Exhaust open
- 56°
- Exhaust lift at tdc
- 0,140"
- Exhaust lobe centerline
- 112°
- Exhaust lift
- 0,553"
- Exhaust duration
- 248°
- Exhaust close
- 12°
- Application
- Intake, Exhaust
- Features
- Quick Install Adjustable Pushrods
- Type
- Chain Conversion
- Units
- Kit
