Feuling Hp+ Chain Drive Conversion Kit

Upgrade your '99-'06 Twin Cam engine (except '06 Dyna) with the Feuling Parts HP+® Chain Drive Conversion Kit. This comprehensive kit replaces your old mechanical-style cams and tensioners with a modern hydraulic tensioner system, boosting performance and reliability.

Description

The Feuling HP+® Chain Drive Conversion Kit delivers significant improvements in engine performance and longevity. By switching to hydraulic tensioners, engine temperatures are reduced by 25°-35°F, while oil pressure increases by 15-30 PSI. This upgrade virtually eliminates wet sumping, blow-by, and oily air cleaners, common issues in older Twin Cam engines. The conversion camshafts are designed to utilize the '99-'06 inner cam journals with the '07-'16 outer cam journals, allowing the use of '07-'16 camplates, oil pumps, hydraulic chain tensioners, and a modern chain drive system. Included are all necessary sprockets, hydraulic tensioners, chains, and spacers for a complete installation. Experience enhanced performance and peace of mind with this high-quality conversion kit. The Feuling HP+® high volume oil pump and High Flow camplate optimize oil flow, while the Reaper® series camshafts enhance power delivery. Kit also includes HP+ hydraulic roller lifters and quick install adjustable pushrods or one-piece pushrods.

Features & highlights

• Lower engine temperatures by 25°-35°F for improved performance and longevity.
• Increased oil pressure by 15-30 PSI reduces wear and enhances lubrication.
• Eliminates wet sumping, blow-by, and oily air cleaners for a cleaner running engine.
• Comprehensive kit includes everything needed for a complete conversion.
• High-quality components ensure durability and reliable performance.
• Upgrades to a modern hydraulic tensioner system for improved reliability.
• Features Reaper® series camshafts for optimized power delivery.

Technical specifications

• Brand: FEULING PARTS
• Product Name: Camchest Kit
• Type: Chain Conversion
• Application: Intake, Exhaust
• Grind: 525 Series
• Intake Open: 4°
• Intake Close: 42°
• Intake Duration: 226°
• Intake Lift: 0.525"
• Intake Lift at TDC: 0.099"
• Intake Lobe Centerline: 109°
• Exhaust Open: 51°
• Exhaust Close: 5°
• Exhaust Duration: 236°
• Exhaust Lift: 0.535"
• Exhaust Lift at TDC: 0.112"
• Exhaust Lobe Centerline: 113°
• Features: One Piece Pushrods

Important to know

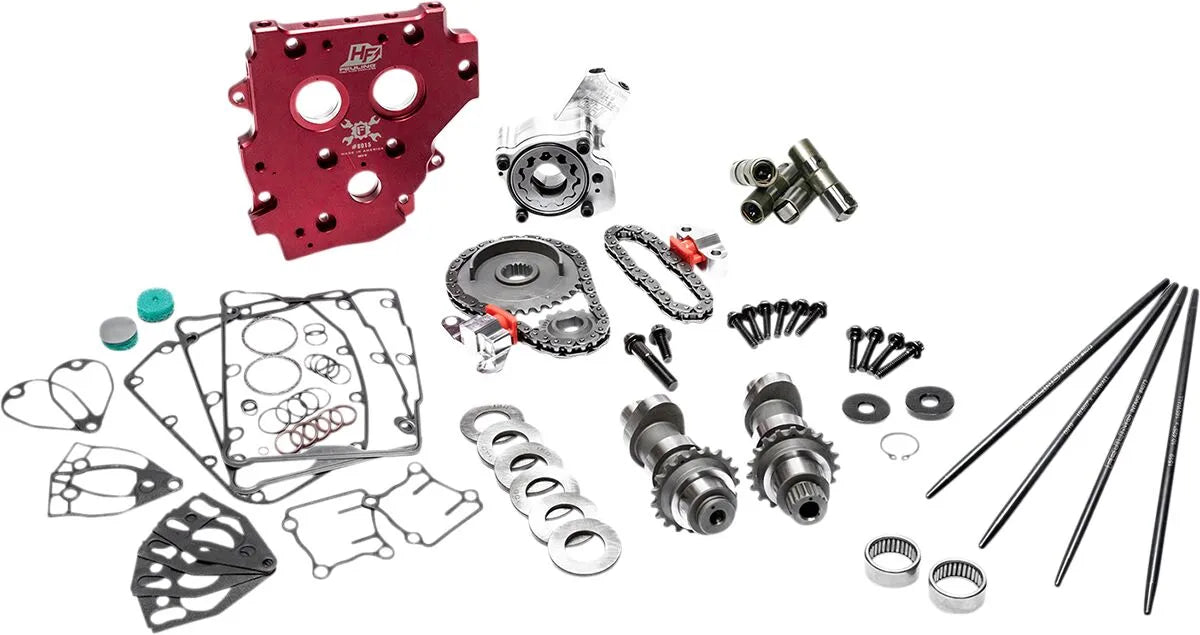

This kit is designed for '99-'06 Twin Cam engines, except for '06 Dyna models. Includes Feuling HP+® high volume oil pump, High Flow camplate, Reaper® series camshafts, HP+ hydraulic roller lifters, quick install adjustable pushrods or one-piece pushrods, Timken® bearings, gaskets, o-rings, exhaust gaskets, ARP® fasteners, washers moly paste, Loctite®, and hardware.
