Feuling Parts Chain Drive Camchest Kit

Upgrade your older Twin Cam engine with the Feuling Parts Race Series® Conversion Chain Drive Camchest Kit. This comprehensive kit replaces the outdated mechanical-style cams and tensioners with a modern hydraulic tensioner system, enhancing your engine's performance and reliability.

Description

The Feuling Parts Race Series® Camchest Kit is engineered to eliminate common issues like wet sumping, blowby, and oily air cleaners. By ensuring all included components work harmoniously, this kit promotes cooler engine temperatures (25°-35°F reduction) and oil temperatures (15°-30°F reduction), while also boosting oil pressure by 15-30 lbs. This conversion enhances engine longevity and overall performance. Featuring REAPER® Series conversion camshafts, the kit transforms your '99-'06 Twin Cam engine using the '99-'06 inner cam journals to utilize '07-'16 camplates, oil pump, and hydraulic chain tensioner and chain drive system. Enjoy improved efficiency, reliability, and peace of mind with this complete, made-in-the-USA upgrade.

Features & highlights

• Eliminates wet sumping, blowby, and oily air cleaners for cleaner engine operation.
• Reduces engine temperatures by 25°-35°F, extending engine life.
• Lowers oil temperatures by 15°-30°F for improved lubrication and cooling.
• Increases oil pressure by 15-30 lbs, ensuring optimal engine lubrication.
• Includes REAPER® Series conversion camshafts for enhanced performance.
• Made in the USA with high-quality materials and precision engineering.
• Converts to a modern hydraulic tensioner system for improved reliability and reduced maintenance.

Technical specifications

• Brand: FEULING PARTS
• Product Name: Camshaft Kit
• Type: Chain Conversion
• Application: Intake, Exhaust
• Grind: 630 Series
• Intake Open: 20°
• Intake Close: 58°
• Intake Duration: 258°
• Intake Lift: 0.630"
• Intake Lift at TDC: 0.188"
• Intake Lobe Centerline: 109°
• Exhaust Open: 60°
• Exhaust Close: 19°
• Exhaust Duration: 263°
• Exhaust Lift: 0.630"
• Exhaust Lift at TDC: 0.171"
• Exhaust Lobe Centerline: 112.5°
• Features: One Piece Pushrods, Full-Travel Hydraulic Lifters

Important to know

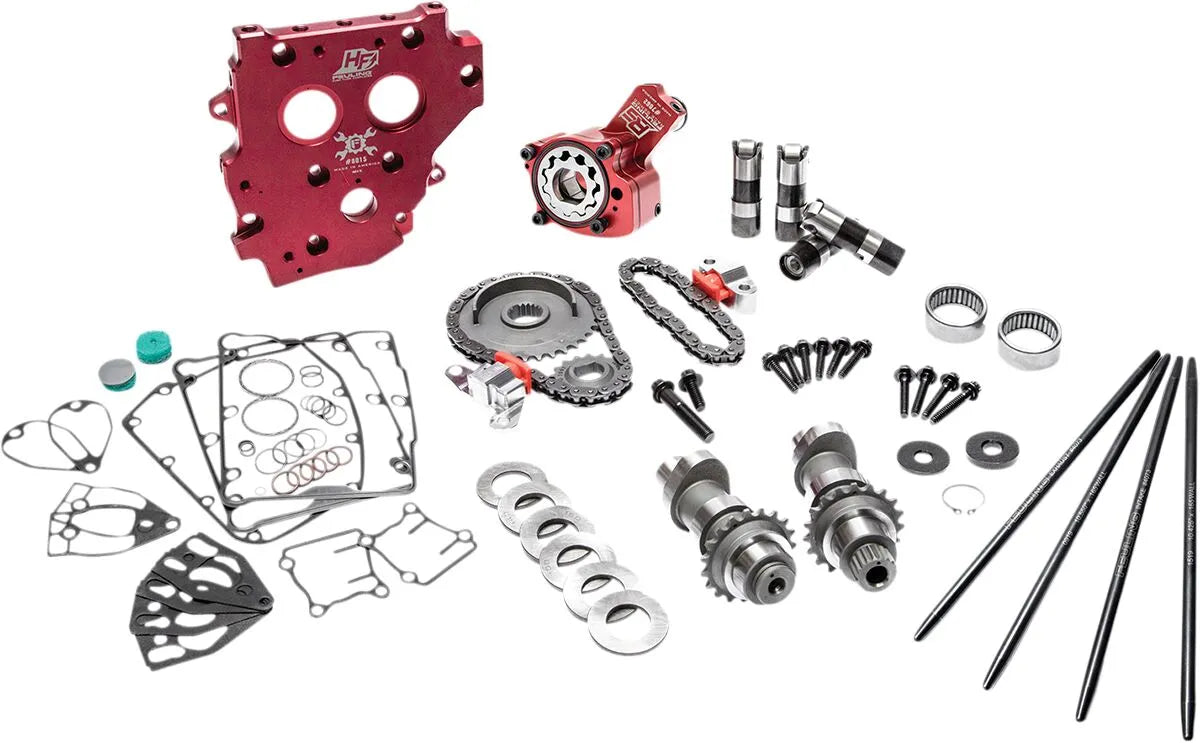

This kit includes: Feuling® Race Series™ high volume oil pump, high flow camplate, REAPER® Series conversion camshafts, Race Series™ hydraulic roller lifters, Quick install adjustable pushrods, sprockets, hydraulic tensioners pads and housings, chains, spacers, Timken® bearings, gaskets, O-rings, hardware, ARP® fasteners, washers, moly lube and Loctite®.

Does not fit '06 Dyna models.
