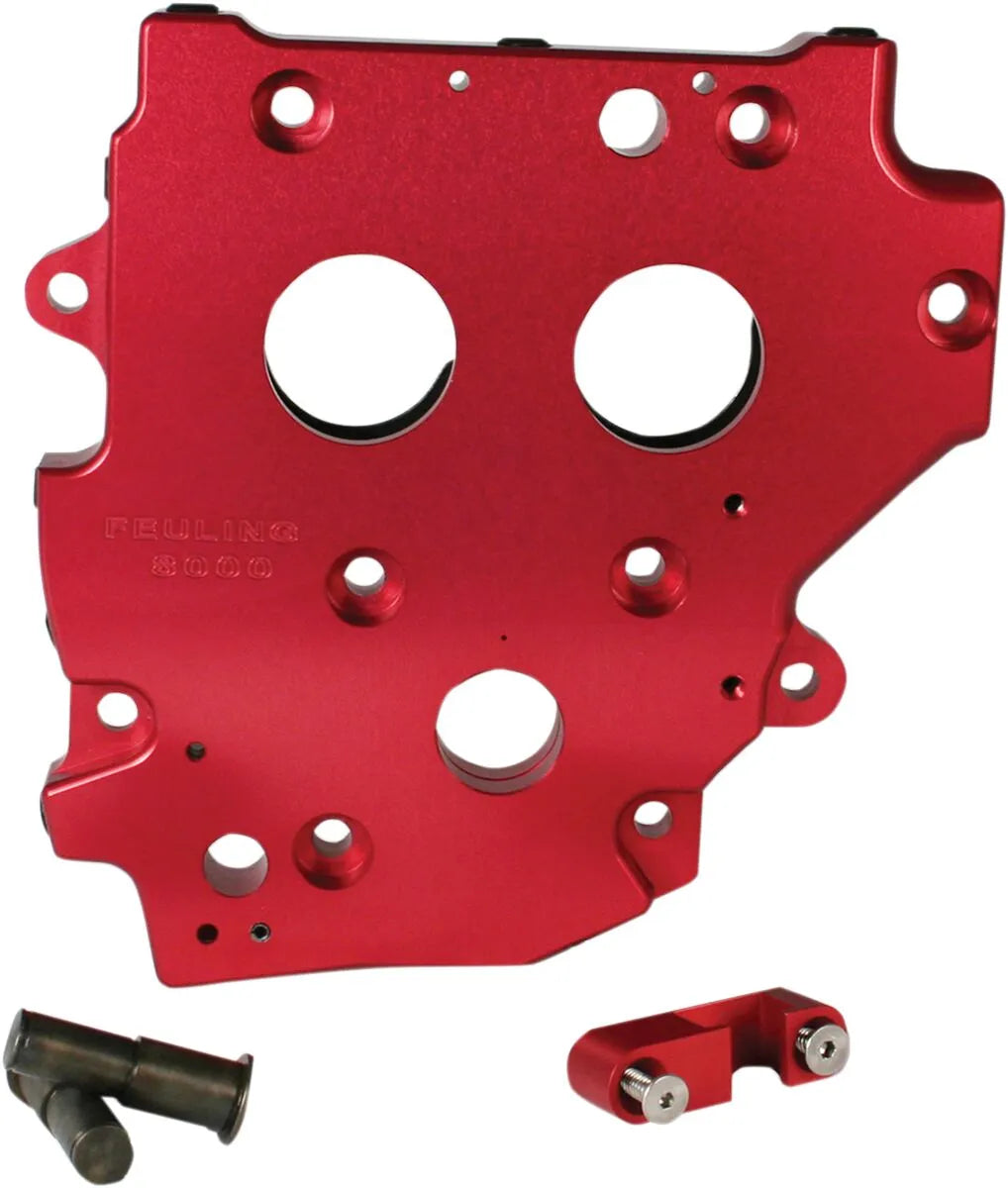

Feuling High Flow Cam Plate - 8010

Upgrade your oiling system with the Feuling Parts High Flow Camplate, designed to maximize oil flow and reduce engine temperatures. This camplate is engineered to enhance your engine's performance and longevity. Experience cooler running temperatures and improved power output.

Description

The Feuling Parts High Flow Camplate optimizes oil flow by matching the oil portholes to the engine case, ensuring efficient lubrication throughout the engine. This camplate increases oil flow and volume via enlarged oil pump reservoirs and critical oil passages, resulting in significant temperature reductions. Expect engine temperatures to drop by 25°–35° and oil temperatures by 20°–30°. The added cam journal oil groove provides crucial cold start-up protection and enhanced cam journal lubrication, while oil pressure feed holes prevent excessive thrusting wear. Pressure tested with a relief valve set to 55-60 psi, this 7075 billet aluminum cam plate is the cornerstone of a robust, efficient oiling system. When paired with the Feuling® Race Series oil pump, you can achieve rear wheel power gains of 3 horsepower and 4 ft/lbs of torque.

Features & highlights

• Maximizes oil flow for cooler engine and oil temperatures.
• Reduces engine temperatures by 25°–35° and oil temperatures by 20°–30°.
• Enhances cold start-up protection and cam journal lubrication.
• Increases oil flow and volume through enlarged oil pump reservoirs.
• Achieve power gains of 3 hp and 4 ft/lbs of torque when matched with a Feuling® Race Series oil pump.
• Pressure tested with pressure relief valve set to 55-60 psi.
• Made in the USA from durable 7075 billet aluminum.

Technical specifications

• Brand: FEULING PARTS
• Material: 7075 Billet Aluminum
• Type: Chain Drive

Important to know

This camplate is designed for use with Feuling® oil pumps only. Bearing and retainer plate hardware is included.
