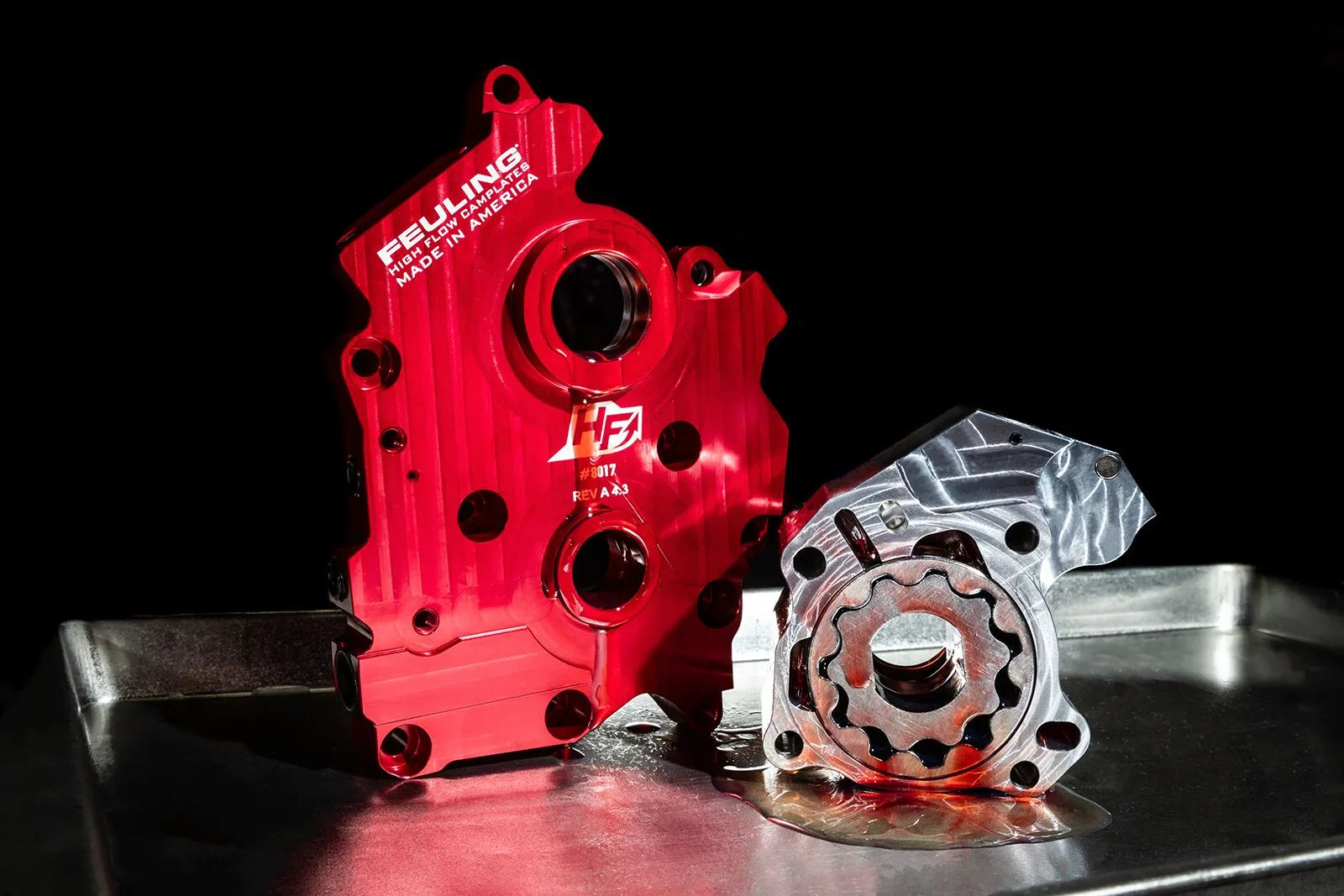

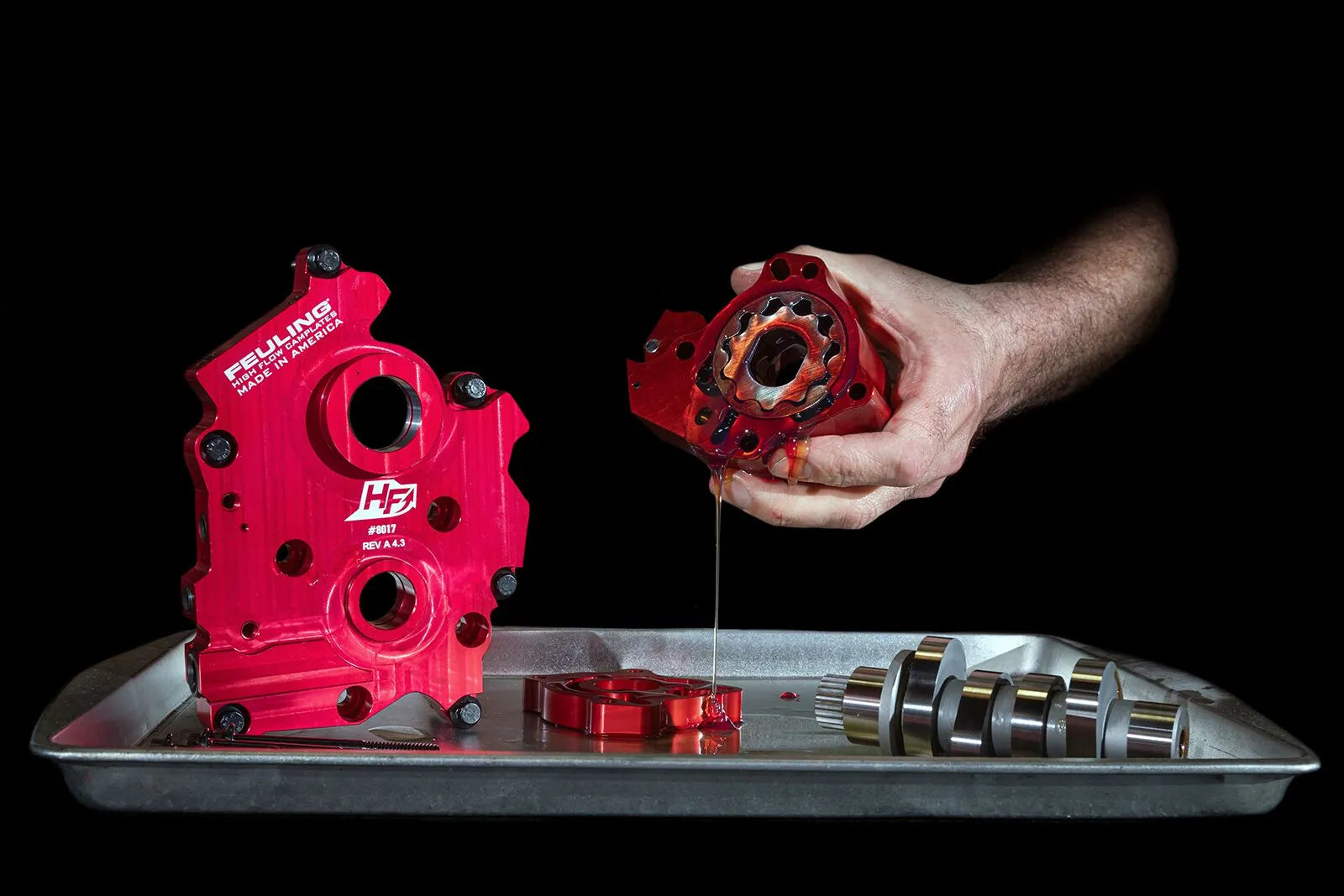

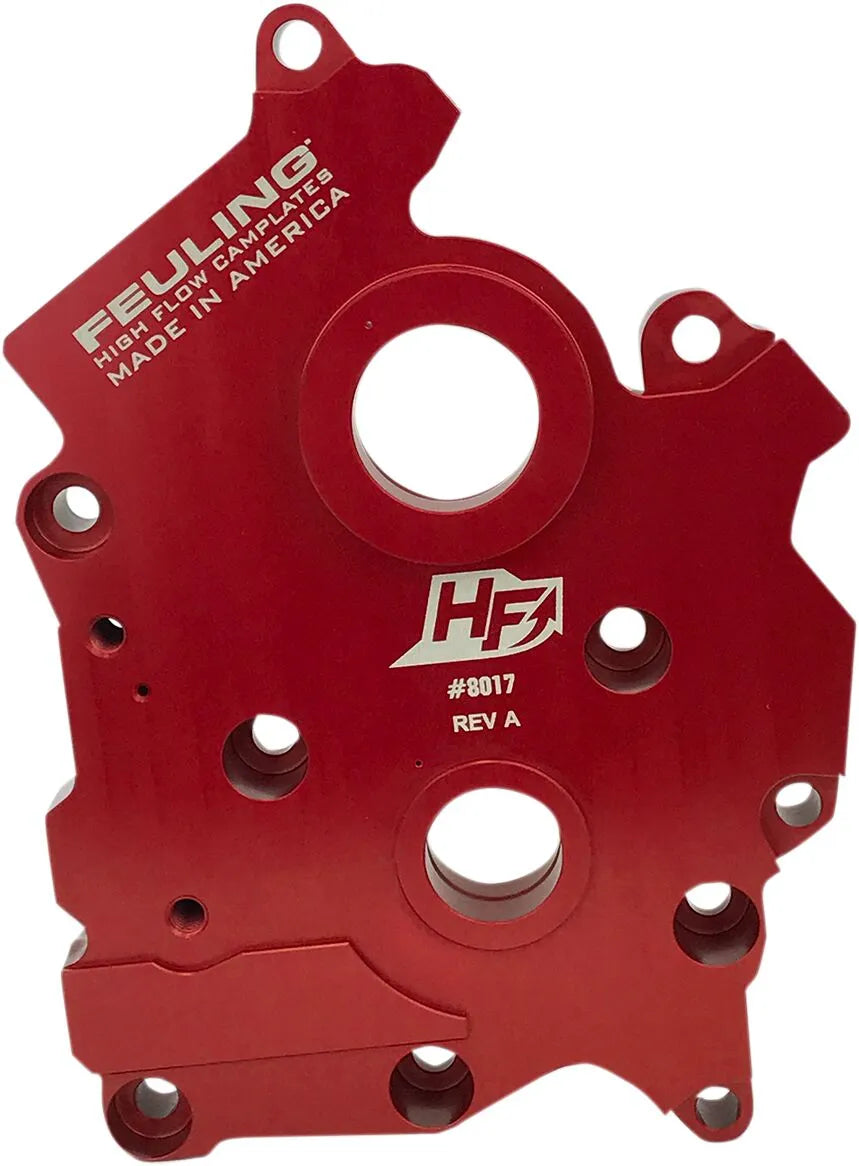

Feuling M8 High Flow Camplate - Red - 8017

The Feuling Parts High Flow Camplate is engineered to maximize oil flow and volume in your M-Eight engine, leading to cooler operating temperatures and improved performance. Constructed from robust 7075 billet aluminum, this camplate is a significant upgrade over stock, offering increased strength and tighter tolerances.

Description

Upgrade your engine's oiling system with the Feuling Parts High Flow Camplate. This camplate is designed to enhance engine oil flow by enlarging oil pump reservoirs and critical oil passages, including the scavenging return holes. It precisely matches the oil port holes between the camplate and engine case, optimizing oil flow throughout the entire engine. When used with a Feuling HP+ or Race Series oil pump, the camplate reduces engine temperatures by 15-25°F and oil running temperature by 15-25°F. The 7075 billet aluminum construction offers 50% greater strength and hardness compared to factory cast and Feuling OE+ camplates, ensuring durability and preventing flexing. Experience potential rear-wheel power gains of 2 horsepower and 2 ft. lb. of torque when paired with the Feuling Race Series Oil Pump. Proudly made in the USA, this camplate is a premium upgrade for performance-driven riders.

Features & highlights

• Maximize engine oil flow and volume for improved lubrication.
• Lowers engine and oil temperatures by 15-25°F when combined with Feuling HP+ or RS oil pump.
• Constructed from 7075 billet aluminum, 50% stronger than factory or OE+ camplates.
• Maintains tighter tolerances under high temperatures, eliminating flexing.
• Potential 2 hp and 2 ft. lb. torque gains with Feuling Race Series Oil Pump.
• Made in the USA, ensuring top-quality manufacturing.

Technical specifications

• Brand: Feuling Parts
• Part Number: 09320192
• Material: 7075 Billet Aluminum
• Type: Oil Pump / Cam Plate
• Color/Finish: Red

Important to know

This camplate is designed for use with gear or chain drive cams. When using gear drive cams, block-off plate PART #0932-0036 is required (sold separately). This camplate is ONLY compatible with Feuling HP+ and Race Series M-Eight oil pumps.
