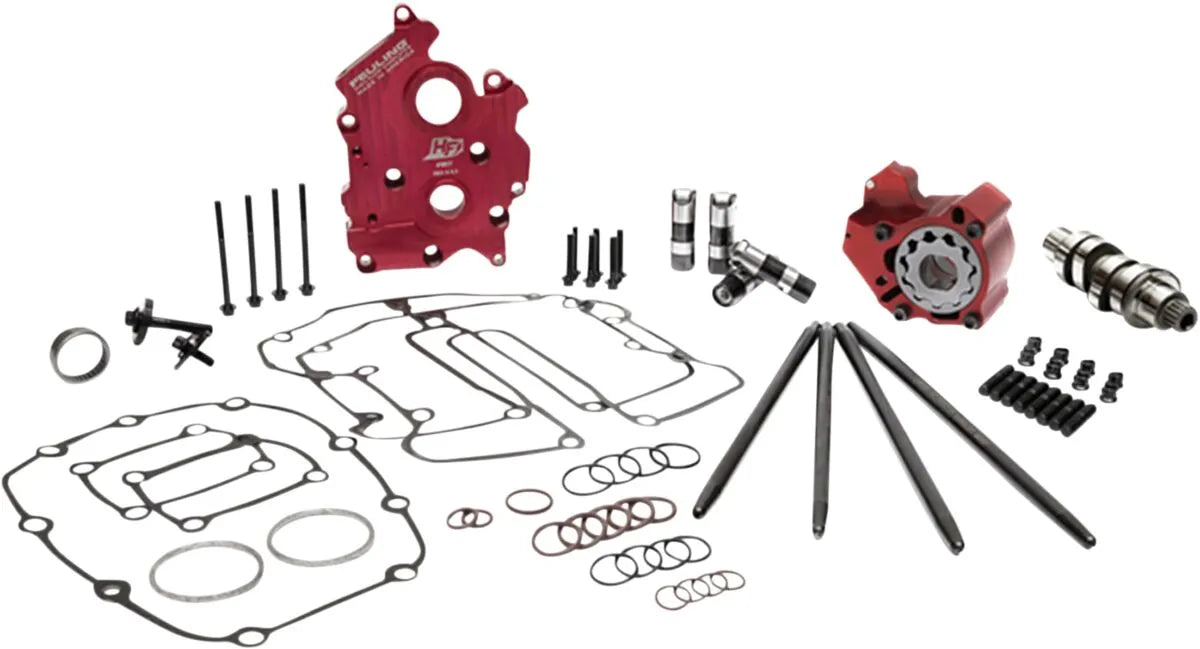

Feuling Parts Race Series Camchest Kit

Upgrade your engine's performance and reliability with the Feuling Parts Race Series® Camchest Kit. This comprehensive kit delivers improved oil pressure, increased oil flow, and cooler engine temperatures, ensuring your engine runs smoother and stronger. Experience the difference with enhanced valvetrain stability and reduced wear, all while eliminating common issues like wet sumping and oily air cleaners.

Description

The Feuling Parts Race Series® Camchest Kit is engineered to optimize your engine's oiling system and valvetrain. This kit promotes exceptional engine cooling, maintaining temperatures between 15° and 35° cooler, and oil temperatures between 15° and 30° cooler. The included Race Series® high-volume oil pump and high-flow billet camplate work together to deliver 15-30 PSI more oil pressure, ensuring critical engine components are properly lubricated. The Reaper Series® camshaft, combined with full-travel Race Series® hydraulic roller lifters, provides improved valvetrain dynamics and allows for higher engine RPM. The heavy-duty .165" wall one-piece pushrods minimize valvetrain harmonics and maximize valve lift. This kit is designed to work seamlessly with slip-on mufflers, complete exhaust systems, and high-flow air cleaners, and responds exceptionally well to increased bore and compression. Installation is straightforward with the included gaskets, O-rings, ARP® cam/crank fasteners, washers, moly lube, and Loctite®.

Features & highlights

• Experience quieter and smoother engine operation.
• Enjoy improved oil pressure, scavenge volume, and engine oil flow.
• Benefit from 15°-35° cooler engine temperatures for enhanced performance.
• Eliminate wet sumping, blow-by, and oily air cleaners.
• Enhance valvetrain stability with heavy-duty .165" wall pushrods.
• Optimized for use with performance exhaust systems and air cleaners.
• Made in the USA.

Technical specifications

• Brand: Feuling Parts
• Product Name: Camchest Kit
• Type: Chain
• Grind: 538 Series
• Intake Open: 20.5°
• Intake Close: 38.5°
• Intake Duration: 239°
• Intake Lift: 0.538"
• Intake Lift at TDC: 0.180"
• Intake Lobe Centerline: 99°
• Exhaust Open: 48°
• Exhaust Close: 18°
• Exhaust Duration: 246°
• Exhaust Lift: 0.592"
• Exhaust Lift at TDC: 0.157"
• Exhaust Lobe Centerline: 105°
• Application: Exhaust, Intake
• Features: Oil Cooled

Important to know

This kit is not compatible with '23-'24 models equipped with 121" VVT motors.
