Feuling Parts Race Series Chain Drive Camshaft Kit

Upgrade your engine's performance with the Feuling Parts Race Series® Chain Drive Camshaft Kit. This comprehensive kit is engineered for maximum power and reliability, ensuring your motorcycle delivers peak performance on the road or track. Experience improved throttle response, increased horsepower, and enhanced overall engine efficiency.

Description

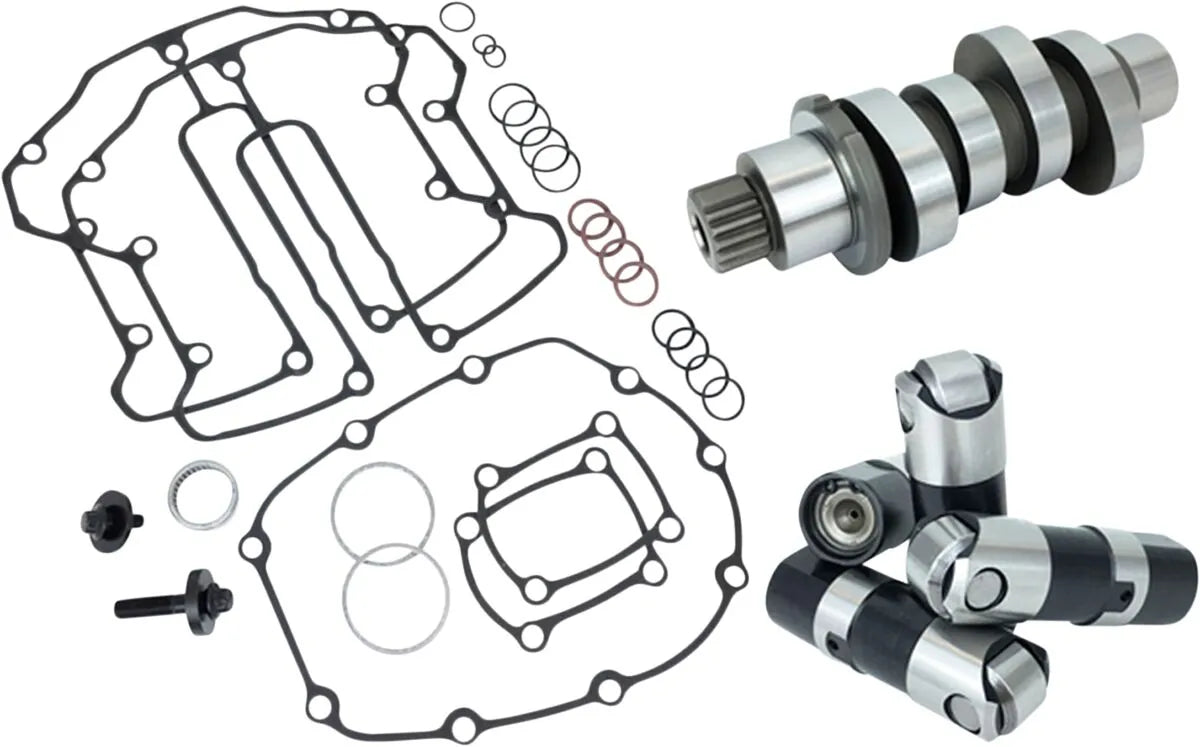

The Feuling Parts Race Series® Chain Drive Camshaft Kit is designed for enthusiasts seeking a significant boost in engine performance. This kit includes the Reaper® camshaft and Racer Series full travel hydraulic lifters with 0.200" total travel, optimized for high-RPM operation and superior valve control. The included gasket/o-ring kit accommodates Feuling heavy-duty HP+ 0.0165" wall one-piece pushrods or factory one-piece pushrods. ARP® cam/crank fasteners and a cam install kit are also included, ensuring a secure and precise installation. Made in the USA, this kit reflects Feuling's commitment to quality and performance. To prevent cylinder head cracking, Feuling also recommends replacing the rocker shaft bolts with studs and nuts to reduce stress on the rocker shaft standoffs.

Features & highlights

• Includes Reaper® camshaft for aggressive power gains.
• Racer Series hydraulic lifters with 0.200" travel for enhanced valve control.
• Gasket/o-ring kit included for easy installation with various pushrod options.
• ARP® cam/crank fasteners ensure secure and reliable operation.
• Optimized for high-RPM performance and increased horsepower.
• Made in the USA for superior quality and durability.
• Lifters designed with a slower bleed down rate to handle steep ramped cams and heavy valve springs.

Technical specifications

• Brand: Feuling Parts
• Product Name: Camshaft Kit
• Type: Chain Drive
• Grind: 538 Series
• Intake Open: 20.5°
• Intake Close: 38.5°
• Intake Duration: 239°
• Intake Lift: 0.538"
• Intake Lift at TDC: 0.180"
• Intake Lobe Centerline: 99°
• Exhaust Open: 48°
• Exhaust Close: 18°
• Exhaust Duration: 246°
• Exhaust Lift: 0.542"
• Exhaust Lift at TDC: 0.157"
• Exhaust Lobe Centerline: 105°

Important to know

This kit is not compatible with '23-'24 models featuring 121" VVT motors. Due to the inherent instability of 4-valve engine designs, Feuling strongly recommends using one-piece pushrods instead of quick-install adjustable pushrods to maintain optimal cam/valve lift and minimize valvetrain harmonics. Feuling fastener kit is recommended to help prevent cylinder head cracking.
