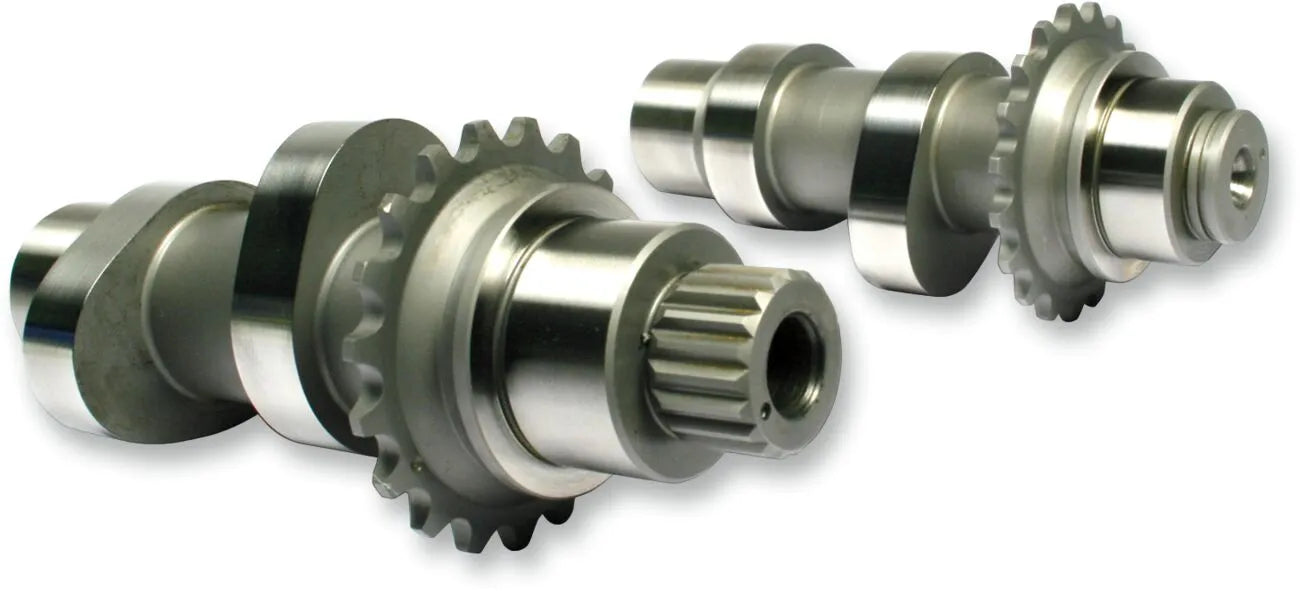

Feuling Reaper 594 Chain Drive Conversion Camshaft - 1019

The Feuling Parts Reaper® 594 Cam is a fierce performing camshaft designed to deliver superior torque and horsepower gains across a range of engine sizes. This cam is expertly crafted for both large displacement engines and smaller, high-revving engines, ensuring optimal performance for a variety of riding styles.

Description

Specifically engineered for large displacement 103", 110", and 124" engines in heavy bikes, the Reaper® 594 Cam provides a robust torque band and significant horsepower boost in the 2200-6250 RPM range. For smaller, high-revving 95" engines in lighter bikes, this cam allows riders to tap into impressive horsepower between 2500-6800 RPM. This camshaft is ideal for enthusiasts looking to enhance their engine's capabilities, offering improved acceleration and overall performance. Increased compression ratio is recommended for large displacements, and required for smaller displacements. Built with precision and durability in mind, the Feuling Parts Reaper® 594 Cam ensures reliable and consistent performance, making it an essential upgrade for serious riders. Experience the difference in power and responsiveness with this high-quality camshaft, proudly made in the USA.

Features & highlights

• Delivers superior torque and horsepower gains for large displacement engines (103", 110", 124") in heavy bikes (2200-6250 RPM).
• Optimized for smaller, high-revving 95" engines in lighter bikes, providing impressive horsepower (2500-6800 RPM).
• Enhances acceleration and overall engine performance for an improved riding experience.
• Designed for increased compression ratio in large displacements and required compression ratio in smaller displacements.
• Proudly made in the USA, ensuring high-quality craftsmanship and reliability.
• Provides a broad and useable power band for street and performance applications.

Technical specifications

• Brand: Feuling Parts
• Product Name: Camshaft
• Grind: 594 Series
• Type: Chain Conversion
• Intake Open: 19°
• Intake Close: 56°
• Intake Duration: 255°
• Intake Lift: 0.594"
• Intake Lift at TDC: 0.190"
• Intake Lobe Centerline: 108.5°
• Exhaust Open: 64°
• Exhaust Close: 16°
• Exhaust Duration: 260°
• Exhaust Lift: 0.604"
• Exhaust Lift at TDC: 0.167"
• Exhaust Lobe Centerline: 114°

Important to know

The 594 cam requires high-performance valve springs, pushrods, lifters, and carburetor or throttle body work. A performance exhaust, intake, and clutch are also required for optimal performance.
