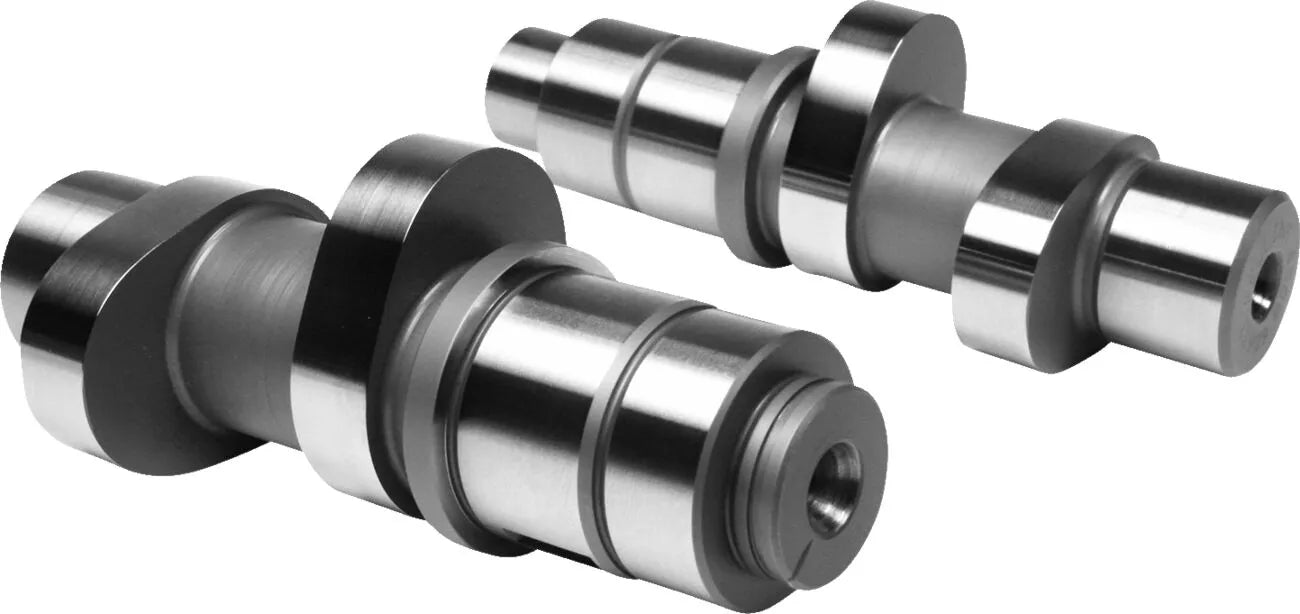

Feuling Reaper 574 Camshaft - 1008

The Feuling Parts Reaper® 574 Series Camshaft delivers exceptional power and performance for your Harley-Davidson engine. Designed for modified engines, it's also a bolt-in upgrade for stock 96", 103", and 110" engines, offering a noticeable boost in power and torque.

Description

This camshaft is engineered to work seamlessly with modified cylinder heads, increased compression ratios, and performance exhaust and intake systems, maximizing their potential. The smooth cam-lobe design ensures quiet valvetrain operation and reliable performance. The Reaper® 574 Series camshaft excels in the 2100-6500 RPM range, providing a broad and usable powerband for street and performance applications. Crafted with precision in the USA, this camshaft offers durability and consistent results. Upgrade your engine's performance with the Feuling Parts Reaper® 574 Series Camshaft and experience the difference.

Features & highlights

• Optimized power band for modified engines and a direct bolt-in for stock 96", 103", and 110" engines.
• Specifically designed to enhance performance with modified cylinder heads, higher compression, and performance exhaust/intake systems.
• Smooth cam-lobe design promotes quiet and reliable valvetrain operation.
• Provides a broad and usable powerband from 2100-6500 RPM.
• Proudly made in the USA, ensuring top-quality manufacturing and materials.
• Noticeable increase in horsepower and torque throughout the RPM range.

Technical specifications

• Brand: Feuling Parts
• Grind: 574 Series
• Type: Gear
• Intake Open: 15°
• Intake Close: 45°
• Intake Duration: 240°
• Intake Lift: 0.574"
• Intake Lift at TDC: 0.163"
• Intake Lobe Centerline: 105°
• Exhaust Open: 61°
• Exhaust Close: 14°
• Exhaust Duration: 255°
• Exhaust Lift: 0.574"
• Exhaust Lift at TDC: 0.143"
• Exhaust Lobe Centerline: 113.5°

Important to know

Performance pushrods, lifters, and an upgraded clutch are highly recommended to maximize the performance and reliability of this camshaft installation.
