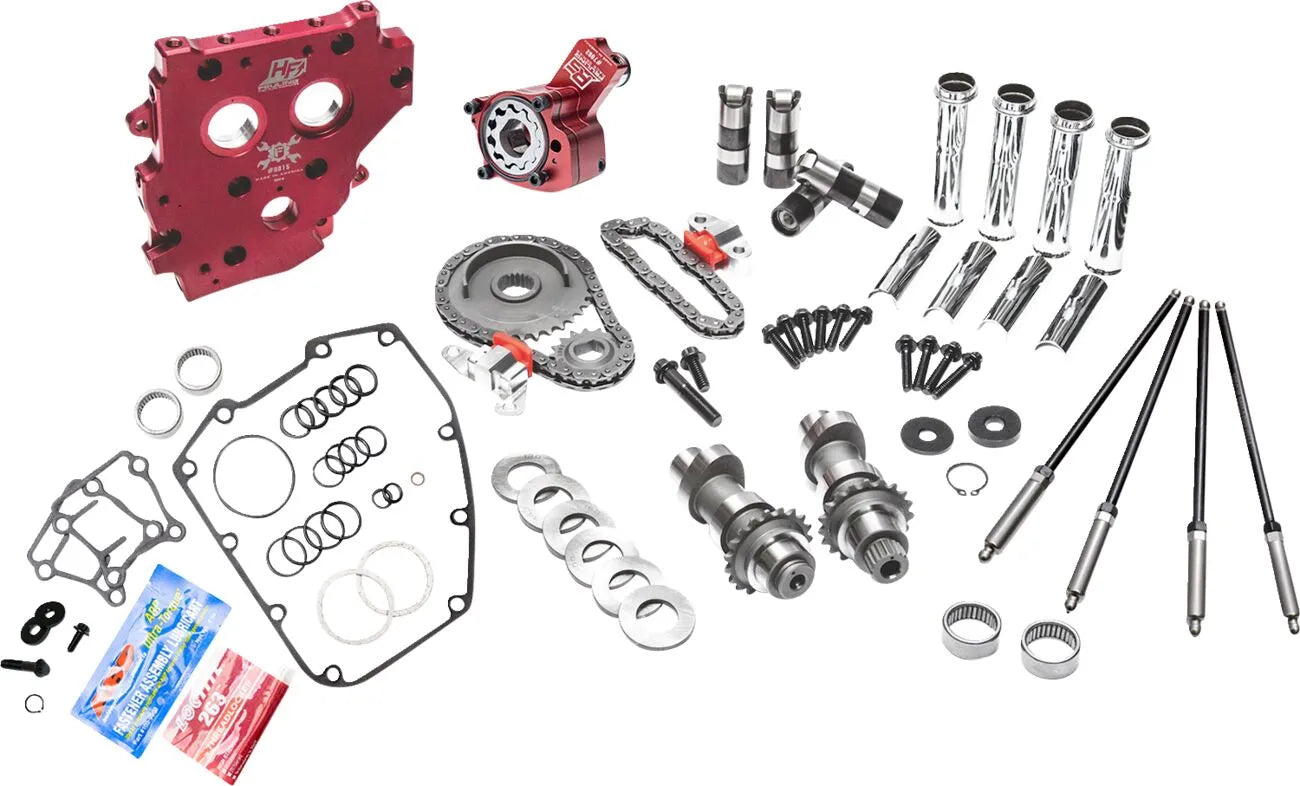

Feuling Twin Cam Race Series Cam Chest Kit - .630" Lift - 7223ST
Product info
- Item number
- 09251398
- Manufacturer number
- 7223ST
- Position
Upgrade your '99-'06 Twin Cam engine with the Feuling Parts Race Series® Conversion Chain Drive Cam Chest Kit. This comprehensive kit replaces the old mechanical-style cams and tensioners with a modern hydraulic tensioner system, resulting in improved performance and reliability.
Description
The Feuling Parts Race Series® Conversion Chain Drive Cam Chest Kit eliminates common issues such as wet sumping, blow-by, and oily air cleaners. By updating to a hydraulic tensioner system, the kit ensures all components function harmoniously, leading to significantly cooler engine temperatures (25°–35°F cooler) and oil temperatures (15°–30°F cooler). Expect to see an increase of 15–30 lb of oil pressure. Designed for '99-'06 Twin Cam engines utilizing '99-'06 inner cam journals, this kit allows seamless integration with '07-'16 cam plates, oil pumps, hydraulic chain tensioners, and a reliable chain drive system. Installation is simplified with the included quick-install adjustable pushrods.
Features & highlights
- Eliminates wet sumping, blow-by, and oily air cleaners for a cleaner running engine.
- Maintains cooler engine temperatures (25°–35°F) and oil temperatures (15°–30°F) for improved performance and longevity.
- Increases oil pressure by 15–30 lb, ensuring optimal lubrication and reduced wear.
- Includes REAPER® Series conversion camshafts for enhanced power and torque.
- Features quick-install adjustable pushrods for easy and precise installation.
- All parts are designed to work together for maximum efficiency and reliability.
- Proudly made in the USA, ensuring top-notch quality and craftsmanship.
Technical specifications
- Brand: FEULING PARTS
- Product Name: Camshaft Kit
- Type: Chain Conversion
- Application: Intake, Exhaust
- Grind: 630 Series
- Intake Open: 20°
- Intake Close: 58°
- Intake Duration: 258°
- Intake Lift: 0.630"
- Intake Lift at TDC: 0.188"
- Intake Lobe Centerline: 109°
- Exhaust Open: 60°
- Exhaust Close: 19°
- Exhaust Duration: 263°
- Exhaust Lift: 0.630"
- Exhaust Lift at TDC: 0.171"
- Exhaust Lobe Centerline: 112.5°
- Features: Pushrod Tube Covers, Short Travel Lifters, Quick Install Adjustable Pushrods
Important to know
This kit does not fit '06 Dyna models. The kit is designed for '99-'06 Twin Cam engines, allowing the use of '07-'16 components.
- Brand
- FEULING PARTS
- Vendor part number
- 7223ST
- Product name
- Camshaft Kit
- Intake open
- 20°
- Intake lift at tdc
- 0,188"
- Intake lobe centerline
- 109°
- Intake lift
- 0,630"
- Intake duration
- 258°
- Intake close
- 58°
- Grind
- 630 Series
- Exhaust open
- 60°
- Exhaust lift at tdc
- 0,171"
- Exhaust lobe centerline
- 112,5°
- Exhaust lift
- 0,630"
- Exhaust duration
- 263°
- Exhaust close
- 19°
- Application
- Intake, Exhaust
- Features
- Pushrod Tube Covers, Short Travel Lifters, Quick Install Adjustable Pushrods
- Type
- Chain Conversion
- Units
- Kit
