Hastings 80" EVO +0.020" Piston Rings for Harley Davidson

Elevate your Harley Davidson's engine performance with this premium set of Hastings 80" EVO +0.020" Piston Rings. Designed for specific Harley Davidson Electra Glide Classic FLHTC 1340 and Sportster XLH 1200 models from 1983-2003, these oversize piston rings are engineered to restore optimal compression and oil control.

Description

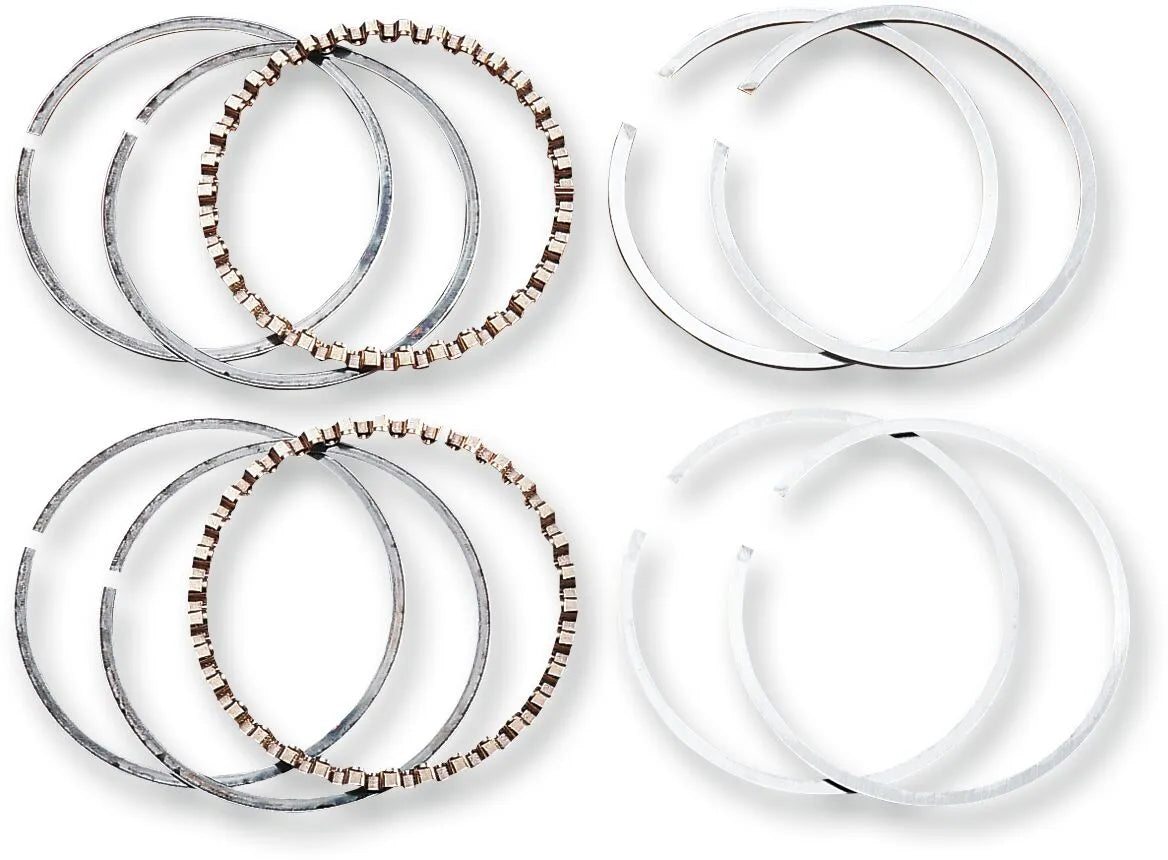

Experience superior engine reliability and power with Hastings replacement piston rings, meticulously crafted for 80" Evolution (EVO) engines requiring a +0.020" oversize. This comprehensive set includes top compression rings, second compression rings, and oil control rings, all manufactured in the USA to stringent quality standards. The top compression rings feature a barrel face design, optimizing heat transfer between the piston and cylinder wall while effectively controlling combustion chamber gases to maximize energy transfer to the crankshaft. The second compression rings utilize a reverse torsional taper face, promoting superior side sealing to prevent oil from migrating under and behind the ring, leading to better oil economy and reduced emissions. Completing the set are the three-piece Flex Vent oil control rings, whose unique design with small cross-sectional area rails ensures exceptional conformability to the bore and uniform pressure for positive oil control. This complete set provides enough rings for two pistons, ensuring a thorough engine rebuild for your Harley Davidson motorcycle.

Features & Highlights

• Optimized Heat Transfer & Combustion Control: Barrel face top compression rings efficiently transfer heat and seal combustion gases, converting more energy into power.
• Enhanced Oil Economy & Sealing: Reverse torsional taper face second compression rings prevent oil bypass, reducing consumption and promoting cleaner operation.
• Superior Oil Control: Three-piece Flex Vent oil control rings offer excellent conformability and uniform pressure for reliable oil scraping and positive control.
• Precision Engineered & Made in USA: Manufactured in the United States, ensuring high-quality materials and craftsmanship for lasting durability and performance.
• Complete Set for Two Pistons: Includes all necessary rings for a full two-piston rebuild, simplifying your engine maintenance.
• Designed for Harley Davidson EVO Engines: Specifically engineered for 80" Evolution motors, providing a perfect fit and function for your motorcycle.

Technical Specifications

• Engine Type: 80" Evolution (EVO)
• Oversize: +0.020"
• Ring Set: Top, Second, Oil Control
• Top Ring Design: Barrel Face
• Second Ring Design: Reverse Torsional Taper Face
• Oil Control Ring Design: Three Piece Flex Vent
• Manufacturing: Made in USA
• Quantity: Enough rings for two pistons
• EAN: 0075538112365

Important to Know

• Due to the thermal conductivity and design of KB pistons, special attention is required for the top ring end gap. Please refer to the instructions provided with your piston for correct ring installation.
