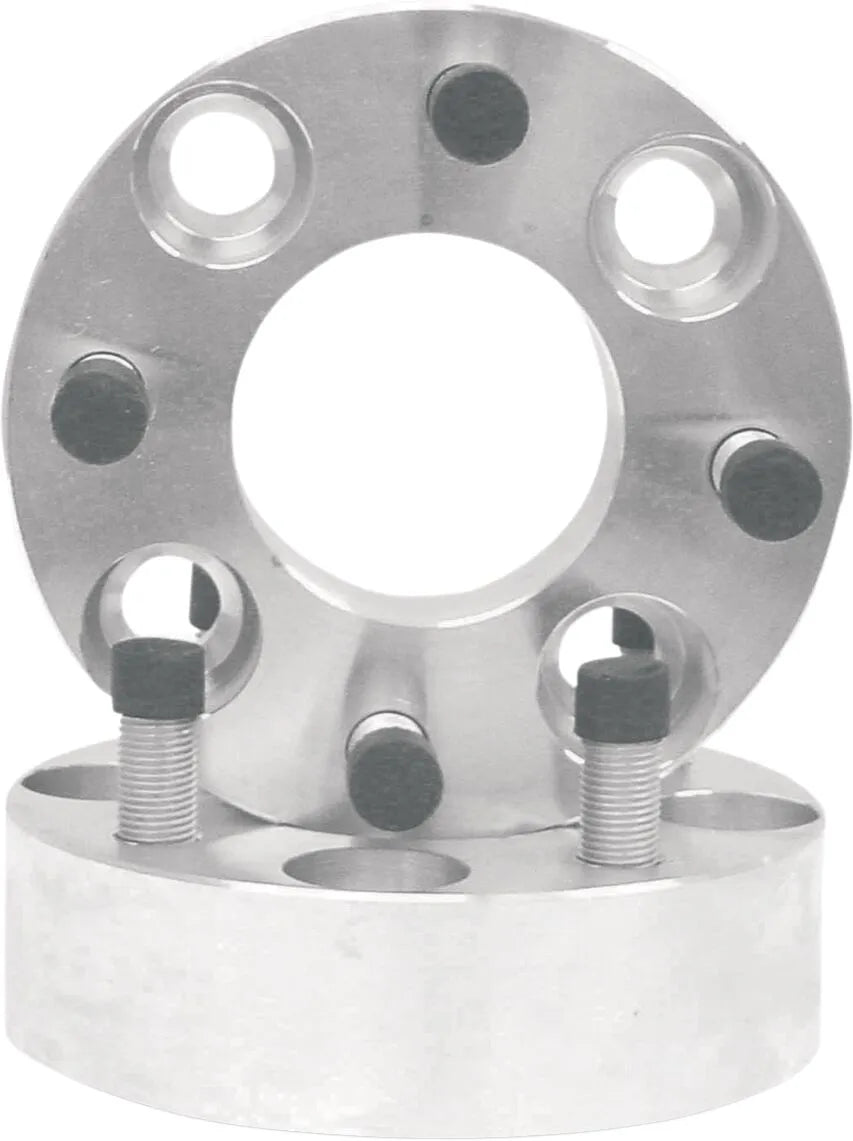

High Lifter Wide Tracs Rear Wheel Spacer - 80-13139

Enhance your ATV's performance and versatility with the High Lifter Wide Tracs Wheel Spacer. Designed to provide crucial clearance for larger aftermarket tires, this robust wheel adapter prevents rubbing against shocks, struts, and exhaust components, while significantly boosting vehicle stability.

Description

Unlock the full potential of your off-road machine with the High Lifter ATV wheel spacer. Engineered from premium 6061 aircraft-grade billet aluminum, these 1" (25.4 mm) thick spacers are built for extreme durability and lightweight performance. The Wide Tracs system is specifically designed for ATVs, featuring a secure 4/110 bolt pattern spacer that effectively moves your wheels out from the hubs and shocks. This not only allows you to run larger, more aggressive tires without interference but also dramatically improves your ATV's stance and handling characteristics. Installation is straightforward and secure: the Wide Tracs bolt directly to your OEM studs, eliminating the need to remove factory studs or use unreliable extenders. Your wheel then fastens to the included grade 8 Wide Trac studs, ensuring a connection comparable to automotive-grade wheel adapters, making it one of the strongest designs available for ATVs. Experience enhanced stability, better cornering, and the freedom to customize your ride with this essential ATV wheel adapter.

Features & Highlights

• Accommodate Larger Tires: Gain essential clearance to install bigger aftermarket tires without rubbing against shocks, struts, or exhaust, expanding your customization options.
• Boost Stability & Handling: Increase your ATV's track width by moving wheels out 1" (25.4 mm) per side, enhancing overall stability, reducing roll-over risk, and improving cornering performance.
• Superior Strength & Durability: Crafted from high-grade 6061 aircraft-grade billet aluminum, these spacers are engineered to withstand the toughest off-road conditions, offering automotive-grade reliability.
• Secure & Simplified Installation: Designed to bolt directly to OEM studs without removal, utilizing included grade 8 Wide Trac studs for a robust and reliable wheel attachment system.
• Optimized for ATVs: Specifically engineered with a 4/110 bolt pattern, ensuring a perfect fit and maximum performance for a wide range of ATV models.

Technical Specifications

• Product Name: Wheel Spacer
• Model: ATV Wide Tracs
• Sold As: Pair
• Material: 6061 Aircraft-Grade Billet Aluminum
• Thickness: 25.4 mm (1")
• Bolt Hole Pattern: 4/110
• Mounting Position: Rear
• Finish: Silver, Raw
• Included Features: Grade 8 Studs
• Vendor Part Number: 80-13139
