Hot Rods Connecting Rod Kit - 8622
Product info
- Item number
- 09230036
- Manufacturer number
- 8622
- Position
Maximize the performance and reliability of your 250cc 4-cycle engine with the Hot Rods Connecting Rod Kit. This heavy-duty, OE replacement connecting rod kit is engineered to withstand the demands of high-performance applications, ensuring your engine runs stronger and longer.
Description
The Hot Rods Connecting Rod Kit features connecting rods crafted from certified 8620 AISI steel, providing superior strength and durability. The crankpins are manufactured from hot-rolled ASTM 4115 steel and case hardened to a level of 58-62Rc for exceptional wear resistance. Designed with the latest caged needle roller bearing technology, these rods offer high RPM longevity. The uniquely designed big end incorporates strategically located side scalloping and vent slots to minimize bearing race distortion at high RPM. Small ends are double drilled to enhance lubrication and cooling to the wrist pin bearing, a critical feature for pistons with crowns positioned close to the wrist pin bearing. The connecting rods are shot-peened to eliminate surface stress risers and smoothly blend the rod forging's radiuses, while double honing ensures an ultra-round bearing surface for maximum reliability. This connecting rod kit is compatible with both Hot Rods and OE crankshafts, and proudly made in the USA.
Features & highlights
- Heavy-duty OE replacement for enhanced engine performance.
- Manufactured from certified 8620 AISI steel for superior strength and durability.
- Crankpins made from hot-rolled ASTM 4115 steel, case hardened to 58-62Rc.
- Optimized big end design minimizes bearing race distortion at high RPM.
- Small ends are double drilled for enhanced wrist pin bearing lubrication.
- Shot-peened to eliminate surface stress risers and improve overall strength.
- Compatible with Hot Rods and OE crankshafts.
Technical specifications
- Brand: Hot Rods
- Product Name: Connecting Rod Kit
- Engine Type: 4-Cycle
- Displacement: 250 cc
- Material: 8620 Steel
Important to know

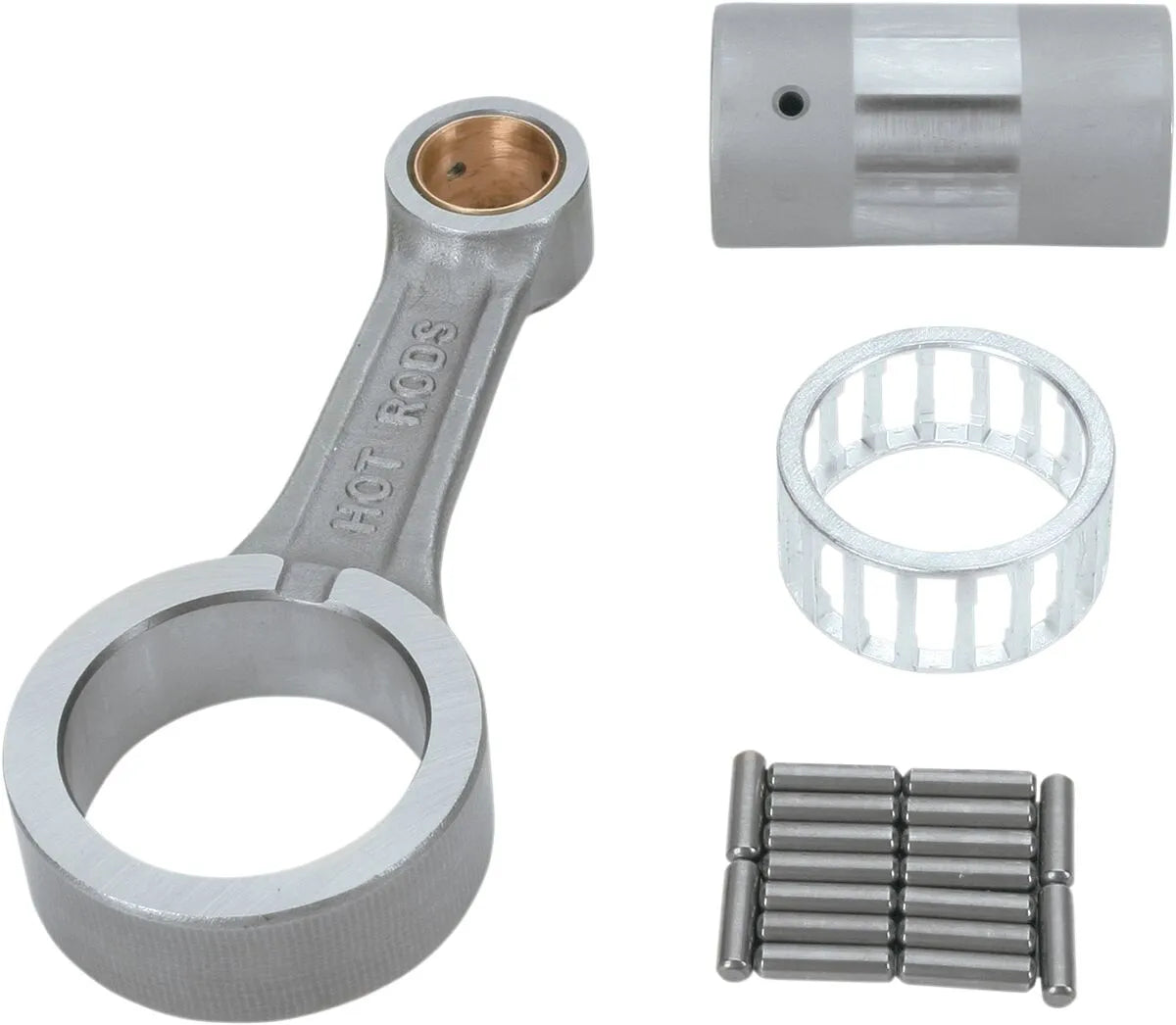

This kit includes the connecting rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.
- Brand
- HOT RODS
- Vendor part number
- 8622
- Product name
- Connecting Rod Kit
- Displacement
- 250 cc
- Engine type
- 4-Cycle
- Material
- 8620 Steel
- Units
- Kit
