Hot Rods Connecting Rod Kit - 8684
Product info
- Item number
- 09230275
- Manufacturer number
- 8684
- Position

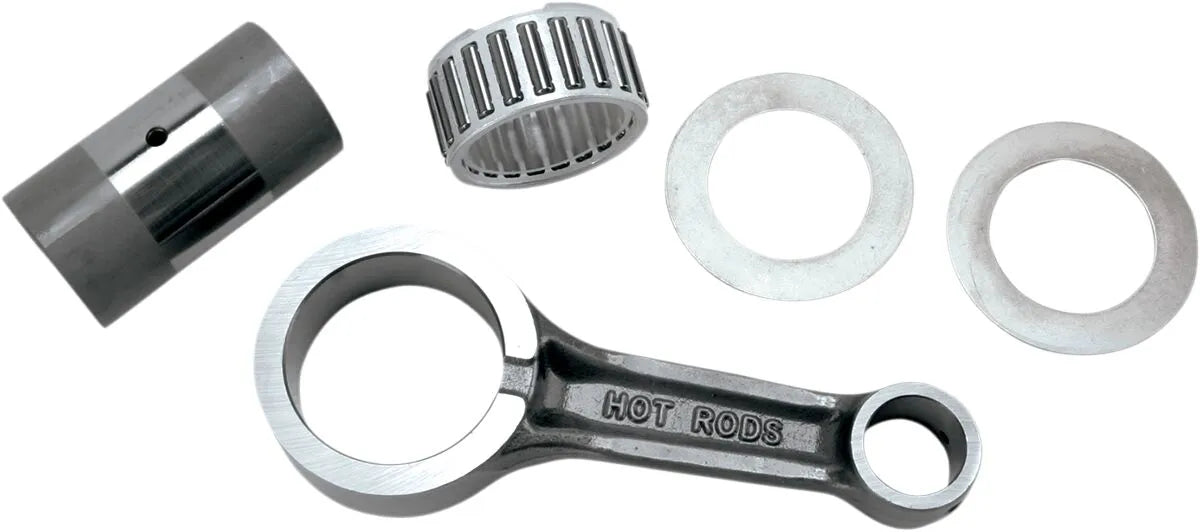

The Hot Rods Connecting Rod Kit provides a heavy-duty OE replacement, ensuring superior strength and longevity for your 4-stroke, 450cc engine. Manufactured in the USA with high-quality materials and advanced engineering, this kit delivers reliable performance under demanding conditions. Upgrade your engine's vital components with confidence.
Description
Built to withstand the rigors of high-performance applications, the Hot Rods Connecting Rod Kit utilizes certified 8620 AISI steel for exceptional strength. The crankpins are manufactured from hot-rolled ASTM 4115 steel and case hardened to a level of 58-62Rc, guaranteeing durability and resistance to wear. The latest caged needle roller bearing designs ensure high RPM longevity. The big end features strategically located side scalloping and vent slots to minimize bearing race distortion. Small ends are double drilled, providing extra lubrication and cooling to the wrist pin bearing – a critical feature when the piston crown is close to the wrist pin bearing. Each rod is shot-peened to eliminate surface stress risers and double honed for an ultra-round bearing surface, maximizing reliability at high RPMs. This kit is compatible with both Hot Rods and OE crankshafts, simplifying installation and ensuring a perfect fit.
Features & highlights
- Heavy-duty OE replacement for enhanced durability.
- Constructed from certified 8620 AISI steel for superior strength.
- Crankpins are case hardened to 58-62Rc for increased wear resistance.
- Optimized big end design minimizes bearing race distortion at high RPM.
- Small ends are double drilled for improved wrist pin bearing lubrication.
- Shot-peened and double honed for ultimate reliability and performance.
- Compatible with Hot Rods and OE crankshafts.
Technical specifications
- Brand: Hot Rods
- Product Name: Connecting Rod Kit
- Displacement: 450 cc
- Engine Type: 4-Cycle
- Material: 8620 Steel
Important to know
Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.
- Brand
- HOT RODS
- Vendor part number
- 8684
- Product name
- Connecting Rod Kit
- Displacement
- 450 cc
- Engine type
- 4-Cycle
- Material
- 8620 Steel
- Units
- Kit
