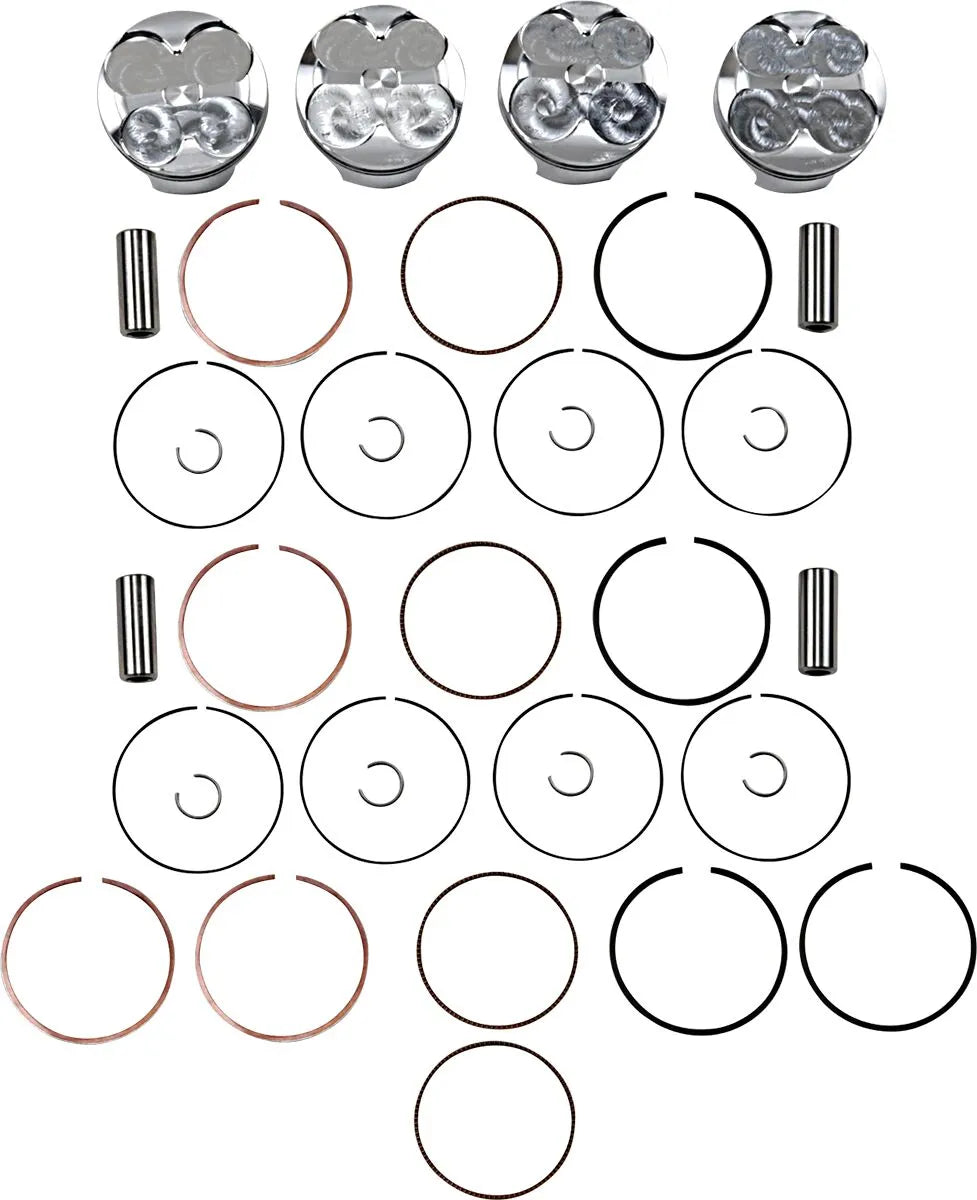

Je Pistons Forged Piston Kit for 636cc 13.2:1 Compression
Product info
- Item number
- 09105785
- Manufacturer number
- 247622
- Position
Elevate your motorcycle's performance with the Je Pistons 636cc forged piston kit, engineered for extreme applications and professional competition. This high-performance piston kit is meticulously crafted to deliver superior power, durability, and reliability for your engine.
Description
Designed for the discerning rider, this Je Pistons JE Series piston kit boasts a formidable 13.2:1 compression ratio, ensuring a significant boost in power and responsiveness. Each piston is precision-machined from premium 2618-T6 high tensile forged aluminum, a material renowned for its exceptional strength and heat resistance under the most demanding conditions. With a precise 68.00 mm bore size, this standard oversize piston kit is ideal for rebuilding or upgrading your 636cc engine, providing a perfect fit and optimal performance.
The innovative Forged Side Relief Design, combined with a domed piston head shape, ensures smooth combustion and efficient power transfer. These pistons are engineered with smooth flowing radii, requiring no deburring or preparation before installation, saving you time and ensuring a perfect setup. Every kit includes the necessary piston(s), wrist pin, circlip, and rings, providing a comprehensive solution right out of the box. Proudly Made in the USA, Je Pistons guarantees top-tier quality and engineering excellence for your motorcycle.
Features & Highlights
- Extreme Performance Engineering: Specifically designed for professional competition and extreme applications, offering unmatched durability and power output.
- Superior Forged Construction: Machined from 2618-T6 high tensile forged aluminum, providing exceptional strength, fatigue resistance, and thermal stability.
- Optimized Combustion Efficiency: Features a domed piston head with smooth flowing radii, ensuring efficient combustion and eliminating the need for pre-installation deburring.
- High Compression Ratio: Achieve significant power gains with a 13.2:1 compression ratio, enhancing your engine's responsiveness and overall performance.
- Complete Kit for Easy Installation: Includes piston(s), wrist pin, circlip, and rings, offering a comprehensive package for a straightforward rebuild or upgrade.
- American Made Quality: Manufactured in the USA, guaranteeing precision engineering, stringent quality control, and reliable performance you can trust.
Technical Specifications
- Product Name: Piston Kit
- Brand: Je Pistons
- Model: JE Series
- Type: Forged Side Relief Design
- Piston Material: Forged 2618 Aluminum
- Piston Head Shape: Domed
- Bore Size: 68.00 mm
- Bore - Oversize: Standard
- Displacement: 636 cc
- Compression Ratio: 13.2:1
- Units: Kit
- Vendor part number
- 247622
- Model
- JE Series
- Product name
- Piston Kit
- Bore size
- 68,00 mm
- Compression ratio
- 13.2:1
- Displacement
- 636 cc
- Piston material
- Forged 2618 Aluminum
- Width
- 145 mm
- Height
- 140 mm
- Length
- 265 mm
- Piston head shape
- Domed
- Type
- Forged Side Relief Design
- Units
- Kit
