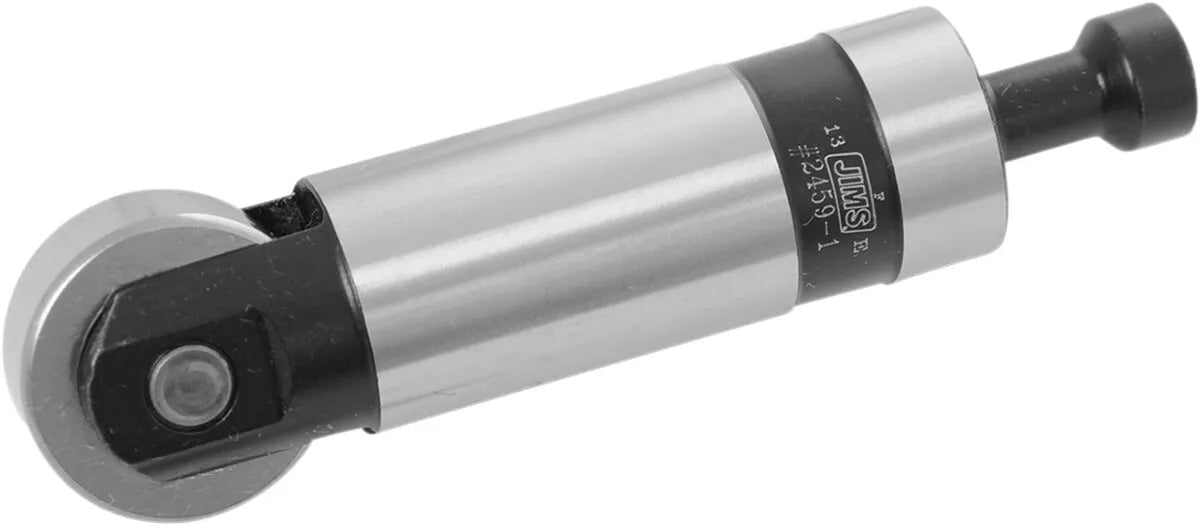

Jims Big Twin Powerglide Hydraulic Tappet - +.005" - 2461-1

Upgrade your engine's performance with Jims Powerglide™ Tappets. These high-quality tappets are designed to provide exceptional durability and precise cam timing, ensuring smooth and reliable operation for your motorcycle.

Description

Jims Powerglide™ Tappets are engineered for superior performance in both cast iron and aluminum tappet blocks. Manufactured from billet bearing steel, these tappets offer a true center-line for extended roller life and exact cam timing. The state-of-the-art pushrod seat features a segmented parabolic cup, mirroring the design of Jims roller rockers, optimizing pushrod stability and reducing wear. Each hydraulic unit is meticulously hand-fit to a running clearance of 0.0002" using an ultra-precision air gauging system, guaranteeing consistent and reliable hydraulic action. These tappets are built to withstand the demands of high-performance engines, offering improved responsiveness and overall engine efficiency. Proper installation with a tappet block clearance of 0.0007" to 0.0012" is recommended for optimal performance.

Features & highlights

• Compatible with both cast iron and aluminum tappet blocks, offering versatility for various engine builds.
• Manufactured from premium billet bearing steel for exceptional strength and longevity.
• Ensures a true center-line for maximum roller life and precise cam timing, enhancing engine performance.
• Features a state-of-the-art pushrod seat with a segmented parabolic cup for optimized pushrod stability.
• Hydraulic unit is hand-fit to a precise 0.0002" running clearance for consistent and reliable hydraulic action.
• Precision air gauging system ensures ultra-precise tolerances and optimal performance.

Technical specifications

• Brand: Jims
• Part Number: 2461-1
• Material: Steel
• Diameter: 0.736"

Important to know

It is recommended to fit the tappets to the blocks with a clearance of 0.0007" to 0.0012" for optimal performance.
