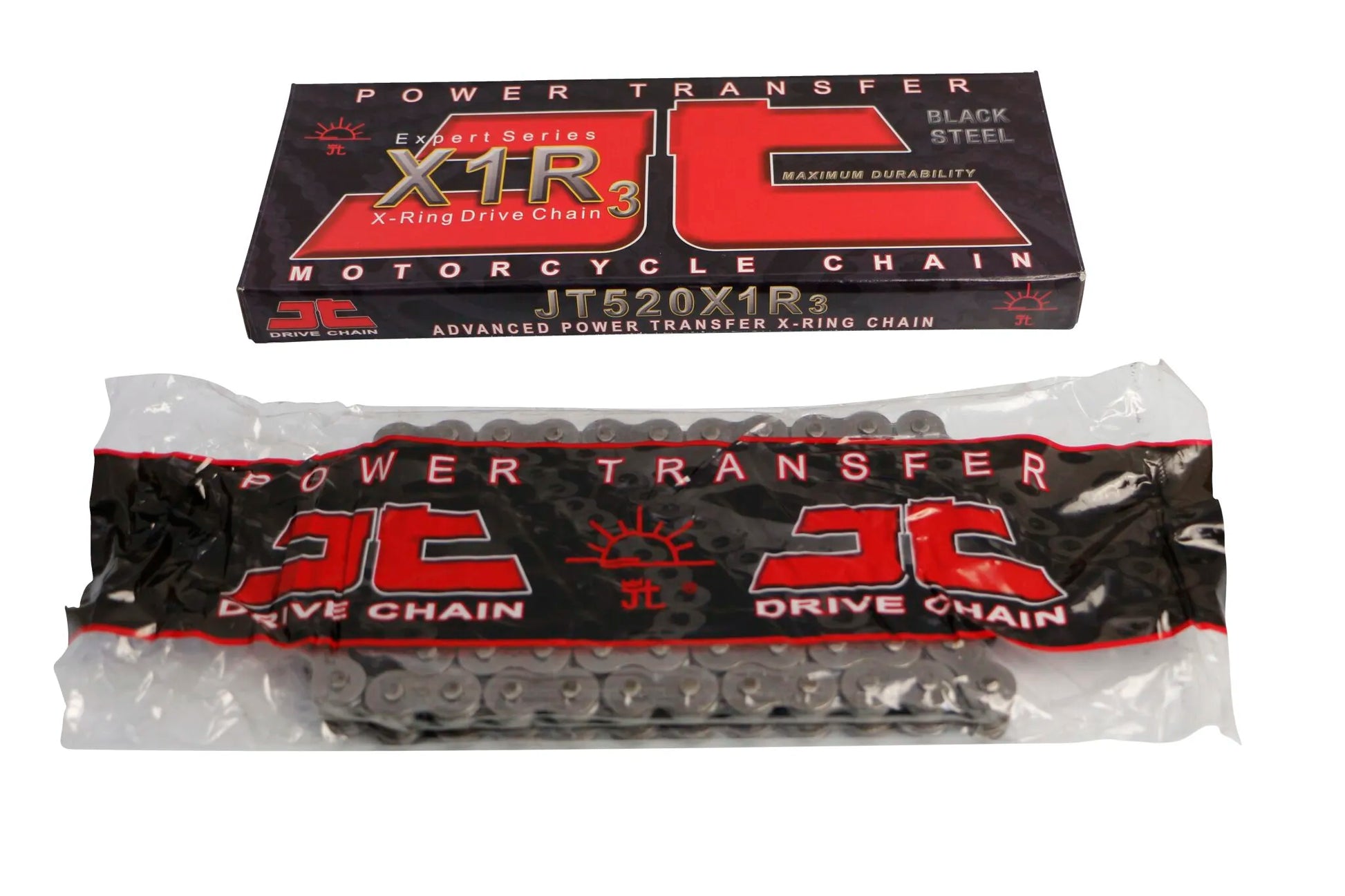

JT Chains 520 X1R3 Chain - 116 Links - Raw/Natural - JTC520X1R3-116DL
Product info
- Item number
- 12231538
- Manufacturer number
- JTC520X1R3-116DL
- Position
- Chain size
- 520
- Links
- 116
- Seal type
- X-Ring
- Tensile strength
- 39.7 kN
- Max. engine (street)
- 800 cc
The JT Chains 520 X1R3 drive chain is engineered for maximum durability and strength, providing exceptional performance whether you're on the road or tackling off-road trails. This heavy-duty X-Ring chain delivers reliable power transfer and longevity, making it an excellent choice for demanding riders.
Description
Built for motorcycles with engines up to 800cc, the JT 520 X1R3 chain offers superior resistance to wear and tear thanks to its advanced X-Ring seal design. These seals keep lubrication in and dirt out, extending the chain's lifespan and reducing maintenance. The high tensile strength of 39.7 kN (8927 lb) ensures that the chain can handle the stress of high-performance riding. Whether you are commuting daily or pushing your bike to its limits, the JT 520 X1R3 drive chain provides the reliability and performance you need.
Features & highlights
- Heavy-duty X-Ring design for enhanced durability and reduced friction.
- Suitable for both street and off-road applications.
- High tensile strength of 39.7 kN (8927 lb) for reliable power transfer.
- X-Ring seals retain lubrication and prevent dirt ingress, extending chain life.
- Compatible with motorcycles up to 800cc.
- Manufactured from high-quality steel for exceptional strength and wear resistance.
Technical specifications
- Brand: JT Chains
- Chain Size: 520
- Chain Type: 520 X1R3
- Seal Type: X-Ring
- Number of Links: 116
- Tensile Strength: 39.7 kN (8927 lb)
- Maximum Engine Displacement (Street): 800 cc
- Material: Steel
- Color/Finish: Raw, Natural
- Weight: 1.73 kg/100 Links
Important to know
Master link (clip or rivet type) is NOT included and must be purchased separately.
- Brand
- JT CHAINS
- Vendor part number
- JTC520X1R3-116DL
- Color finish
- Raw, Natural
- Product name
- Drive Chain
- Weight
- 1,73 kg/100 Links
- Tensile strength
- 39,7 kN (8927 lb)
- Seal type
- X-Ring
- Number of links
- 116
- Maximum engine displacement street
- 800 cc
- Material
- Steel
- Master link connector type
- Clip, Rivet
- Chain type
- 520 X1R3
- Chain size
- 520
- Type
- Chain
- Units
- Each
