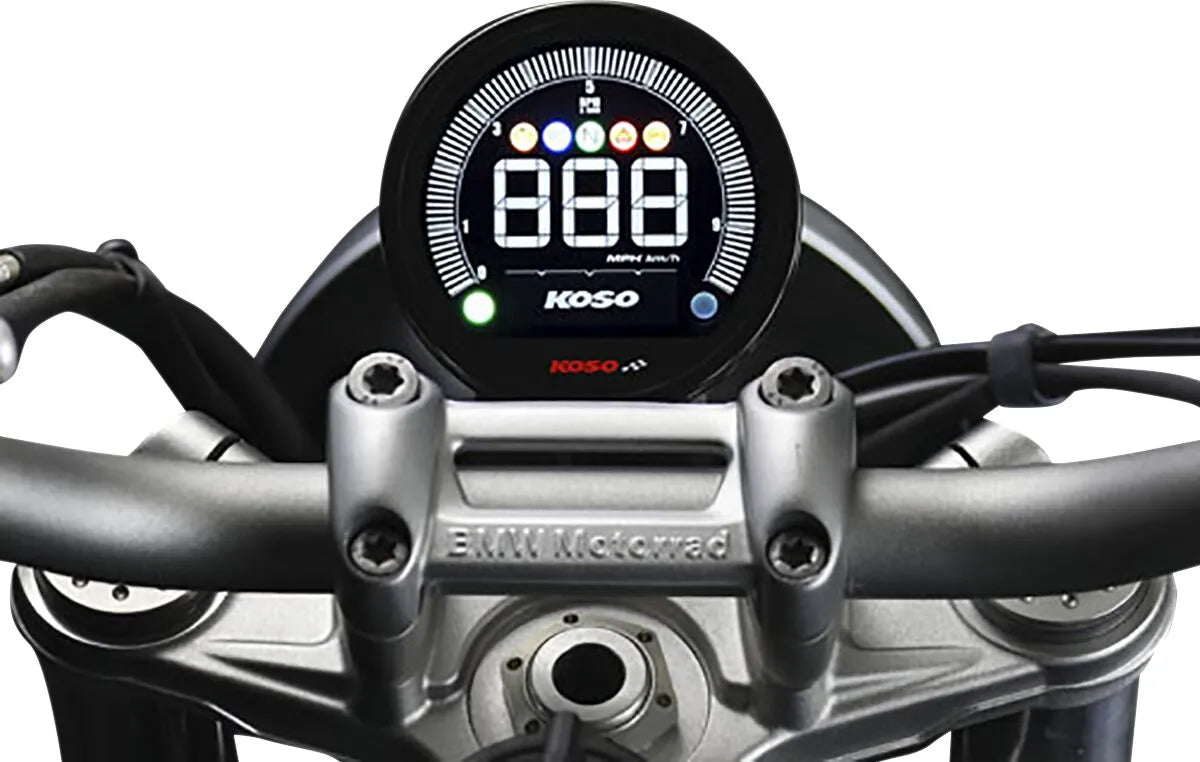

Koso Dl-04 Multifunction Meter

The Koso North America DL-04 Multifunction Meter is a compact and versatile instrument designed to provide crucial information at a glance. Perfect for a wide range of motorcycle applications, this meter combines essential functions into a single, easy-to-read display.

Description

Upgrade your motorcycle's instrumentation with the Koso DL-04 Multifunction Meter. This all-in-one gauge provides real-time data including speed (0-225 mph), tachometer readings (0-10,000 RPM or 0-15,000 RPM), odometer (up to 999,999 miles), and a voltmeter (DC 10V-16V). Stay on top of maintenance with the built-in oil maintenance indicator (300-10,000 miles). The meter also features a tripmeter, hour meter, clock, and stopwatch, ensuring you have all the necessary information at your fingertips. The bright, white readout against the black face ensures excellent visibility, day or night. With its plug-and-play design, installation is straightforward, getting you back on the road quickly.

Features & highlights

• All-in-one multifunction meter displays speed, RPM, mileage, voltage, and more.
• Easy-to-read display with white readout on a black face for excellent visibility.
• Integrated clock, stopwatch, and hour meter for comprehensive data tracking.
• Built-in oil maintenance indicator helps you keep your motorcycle in top condition.
• Compact design with a face depth of only 11/16" for streamlined integration.
• Plug-and-play installation for a quick and easy upgrade.
• Durable construction designed to withstand temperatures from 14°F to 140°F.

Technical specifications

• Brand: Koso North America
• Product Type: Multi-Function Speedometer
• Face Color: Black
• Housing Color: Black
• Outside Diameter: 3-13/16" (96.8 mm)
• Depth: 11/16" (18 mm)
• Speedometer Range: 0 - 225 mph
• Tachometer Range: 0-10,000 RPM / 0-15,000 RPM
• Odometer Range: 0 - 999,999 miles
• Oil Maintenance Range: 300 - 10,000 miles
• Voltmeter Range: DC 10V - 16V
• Operating Voltage: 12VDC
• Effective Temperature Range: 14°F to 140°F

Important to know

This meter requires a 12VDC power supply for operation.
