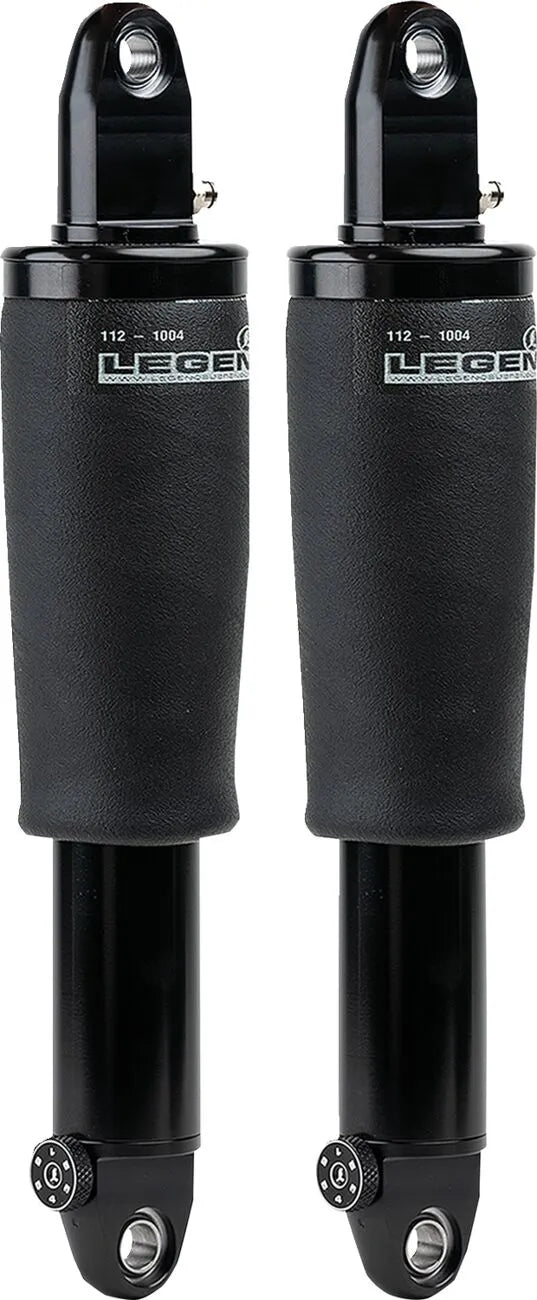

Legend Suspension Air-a For M-eight Trike

Experience the pinnacle of ride quality with the Legend Suspension AIR-A system, specifically engineered for M-Eight Trikes. This system redefines comfort and performance, ensuring a superior riding experience whether you're navigating city streets or cruising on the open road. Assembled by hand in Sturgis, SD USA, this system promises unmatched craftsmanship and reliability.

Description

The Legend Suspension AIR-A system maximizes rear ride height on '17 and newer trikes that utilize OEM shock mount plates. Its 13.6" length eliminates the need for a lift kit and levels out trike models that sit low in the rear from the factory. This reduces dragging and scuffing of mufflers when rolling through drain basins, backing up to curbs, or loading onto a trailer. Enjoy easier steering due to less trail in the front end. Featuring exclusive Aramid Fiber air spring technology, this system provides superior spring rate adjustability, maximizing wheel travel and allowing adjustment to any desired ride height. The Type III hard-coat black anodized machined aluminum bodies, combined with a low-friction sealing system and sliding bearings, enhance performance and feel. High-flow pistons react quickly for improved fluid flow management, while deflective disc valving self-adjusts to frequency, ensuring controlled performance. With six external knob adjustments, fine-tune the rebound for optimum performance and comfort, tailored to your rider weight and personal riding style. The system includes a prewired air compressor with model-specific mounting and a complete wire harness that installs with three easy Deutsch connections. An OEM-looking black handlebar-mounted control allows for easy "on-the-go" adjustability, placing control at your fingertips.

Features & highlights

• Maximizes rear ride height and levels out low-sitting trike models.
• Reduces muffler dragging and improves steering for enhanced maneuverability.
• Features Aramid Fiber air spring technology for superior adjustability and ride quality.
• Rebound adjustable with six external knobs for customized comfort.

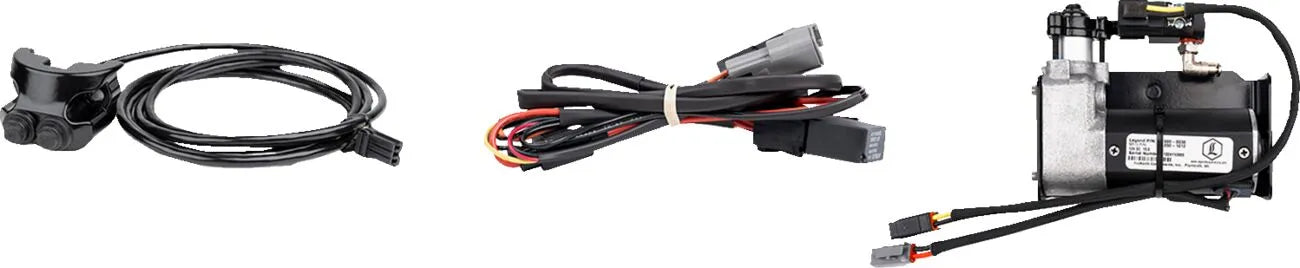

• Includes prewired air compressor and complete wire harness for easy installation.
• Equipped with handlebar-mounted control for convenient on-the-go adjustments.
• Constructed with Type III hard-coat black anodized machined aluminum for durability.

Technical specifications

• Brand: Legend Suspension
• Part Number: 1311-0190
• Adjustment Type: Adjustable Rebound Damping
• Color/Finish: Black, Anodized
• Extended Length: 13.60"
• Material: Billet Aluminum, Aramid Fiber
• Mounting Position: Rear
• Product Type: Air Twin-Tube Shock Absorber
• Reservoir Location: Internal
• Units: Pair

Important to know

• Fits: '17 and newer M-Eight Trikes utilizing OEM shock mount plates.
• Optional chrome handlebar-mounted control sold separately (Part # 0616-0207).
• Optional fairing-mounted matching gauges sold separately (Part #'s 2212-0484, 2212-0485, 2212-0492, 2212-0493, 2212-0494).
