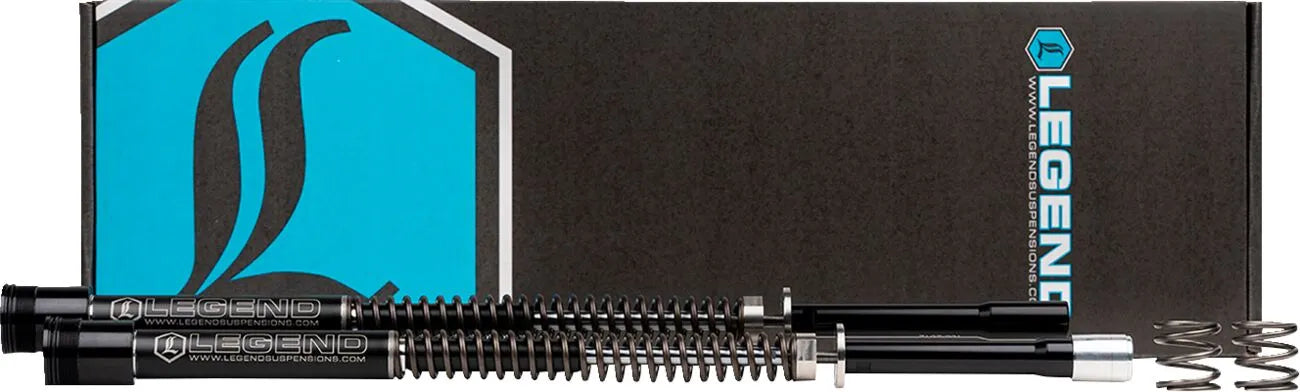

Legend Suspension AXEO Fork Cartridge Kit - 49mm - 0414-0749
Product info
- Item number
- 04140749
- Manufacturer number
- 0414-0749
- Position
- Adjustment
- Preload
- Fork tube
- Ø 49 mm
Experience superior handling and enhanced comfort with the Legend Suspension Axeo cartridge kit. This kit is specifically engineered for FL Touring models, providing a lowered stance and improved performance. Upgrade your ride today and feel the difference.
Description
The Legend Suspension Axeo cartridge kit delivers a significant upgrade in ride quality and handling for FL Touring motorcycles. Designed to reduce the factory ride height by one inch, this kit provides a lower center of gravity, enhancing stability and confidence, especially for shorter riders. The touring spring rate ensures improved rider comfort and chassis balance, allowing for better connection to the road. Enjoy enhanced straight-line stability, high-speed cornering, and maneuverability. The threaded pre-load adjuster allows for fine-tuning according to rider weight and preferences, offering increased pre-load range. The mono-tube, dual-chambered damper cartridges effectively reduce front-end dive during braking and enhance front tire traction. These cartridges also increase resistance to bottoming out on harsh bumps and potholes. Designed for optimum performance when paired with Legend's air ride or 12" coil rear suspensions, this kit is a comprehensive solution for upgrading your motorcycle's front suspension.
Features & highlights
- Lowers the ride height by 1" for a confident, planted feel.
- Enhances rider comfort and improves chassis balance for superior handling.
- Reduces front-end dive during braking, improving front tire traction.
- Increases resistance to bottoming out, ensuring a smoother ride over bumps.
- Features a threaded pre-load adjuster for customized tuning based on rider weight.
- Designed for optimal performance with Legend's air ride or 12" coil rear suspensions.
- Improves stability, cornering, and overall maneuverability.
Technical specifications
- Brand: Legend Suspension
- Vendor Part Number: 0414-0749
- Color/Finish: Black, Anodized
- Fork Tube Diameter: 49.00 mm (1.93")
- Length: One 1" Shorter Than Stock
- Material: Billet Aluminum
- Product Name: Cartridge
- Type: Preload Adjustable Monotube
- Units: Pair
Important to know
- Designed for stock fork tubes.
- Designed to be used with stock diameter front wheels
- Brand
- LEGEND SUSPENSION
- Vendor part number
- 0414-0749
- Color finish
- Black, Anodized
- Product name
- Cartridge
- Fork tube diameter
- 49,00 mm (1,93")
- Length
- One " Shorter Than Stock
- Material
- Billet Aluminum
- Type
- Preload Adjustable Monotube
- Units
- Pair
