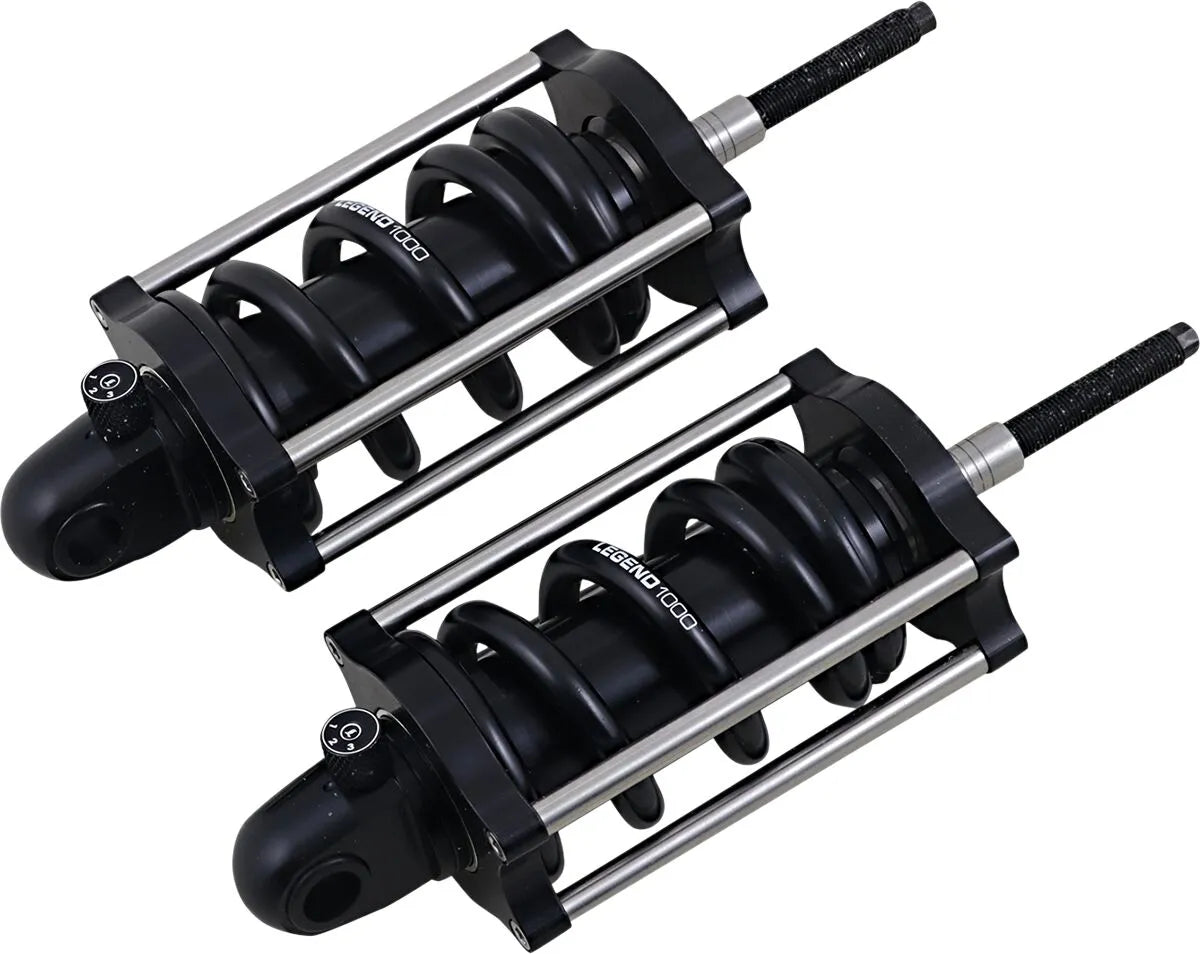

Legend Suspension REVO-A Heavy Duty Shocks - 12.25" - 1310-1974
Product info
- Item number
- 13101974
- Manufacturer number
- 1310-1974
- Position
- Length
- 12.25" (311 mm)
- Adjustment
- Rebound
Upgrade your Softail's ride quality with Legend Suspension REVO-A adjustable coil suspension. These shocks deliver superior comfort, improved handling, and increased bottoming resistance for all-day riding enjoyment. Experience the difference a premium suspension system makes.
Description

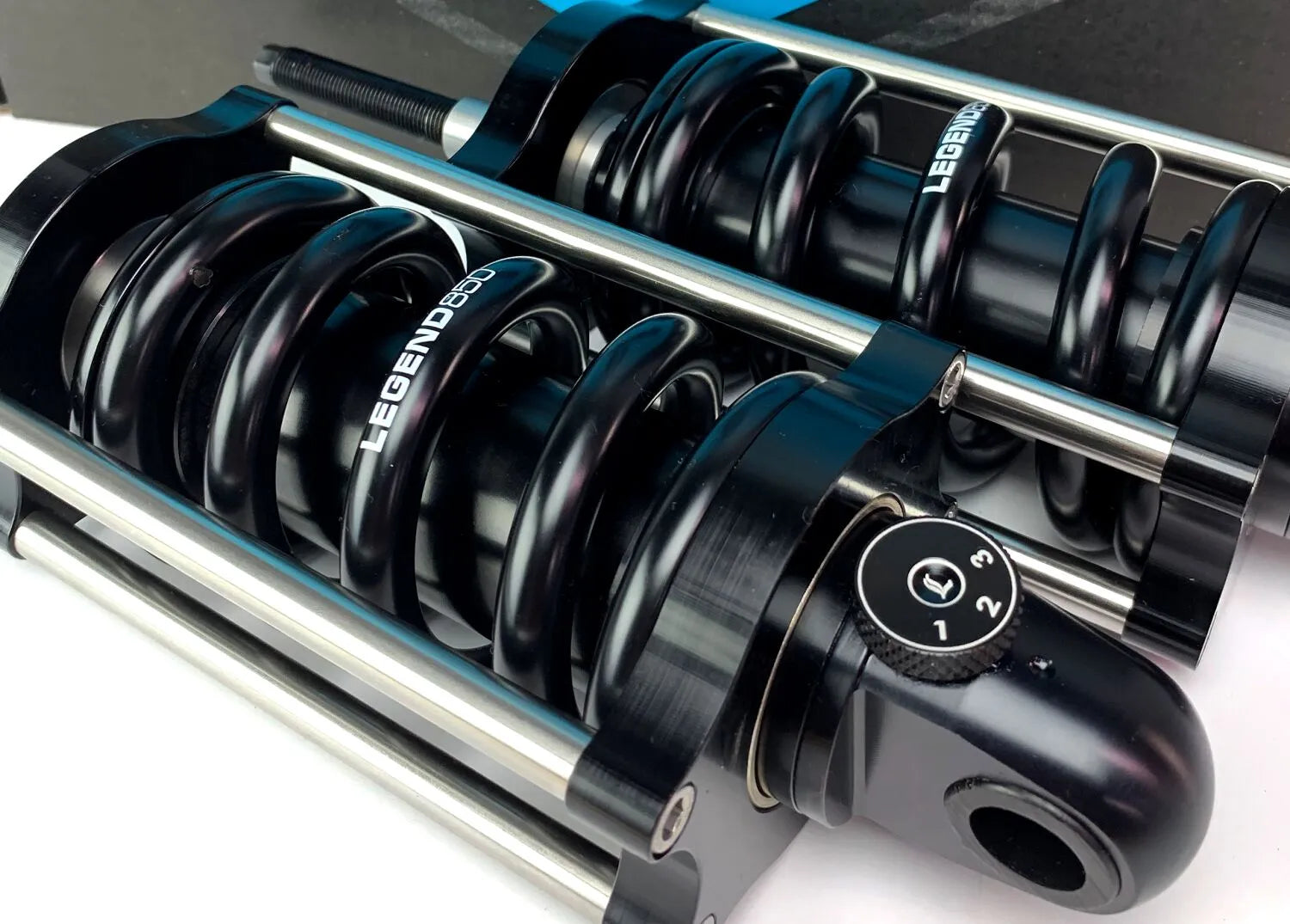

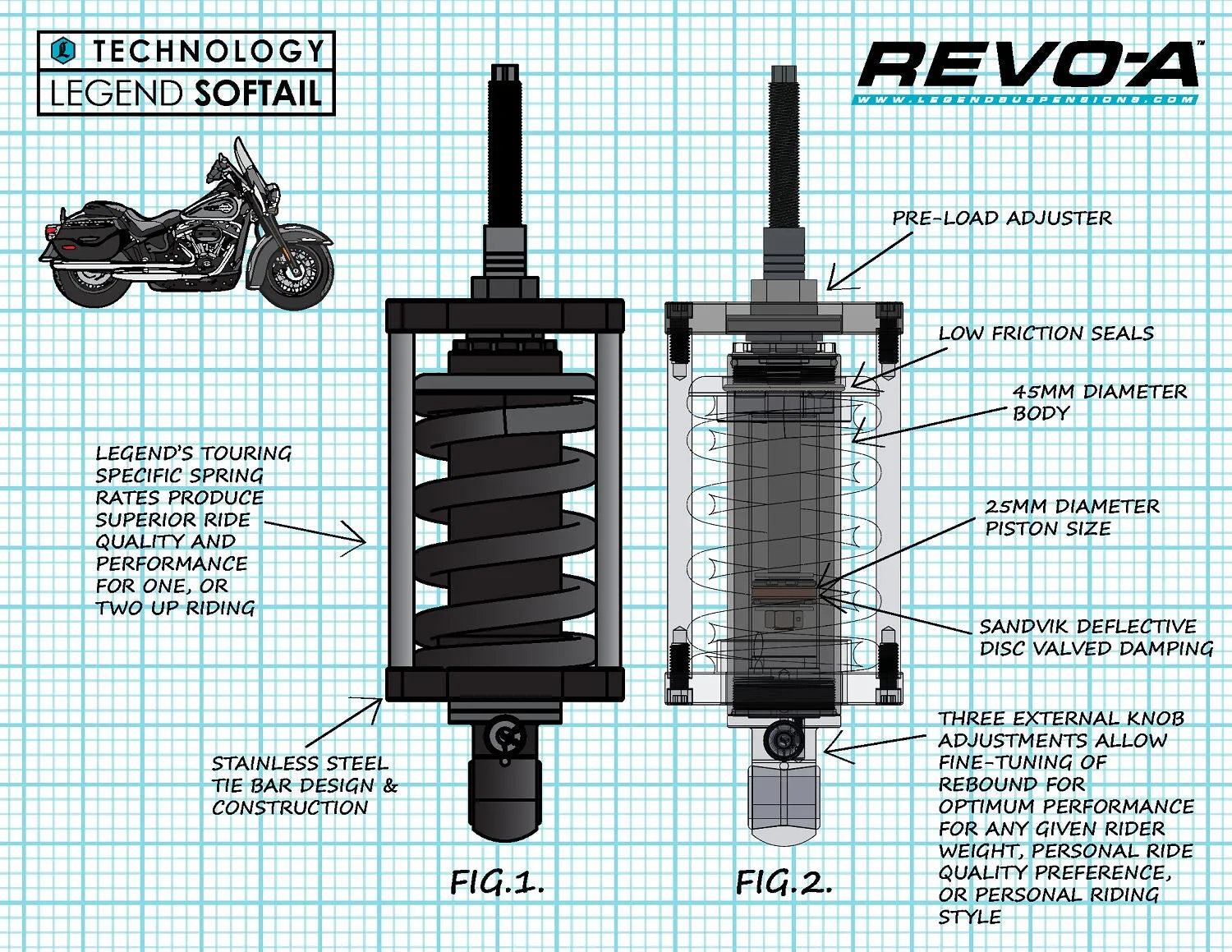

The Legend Suspension REVO-A Softail coil suspension is engineered for riders who demand the best in comfort and performance. Featuring a 45 mm billet aluminum twin-tube design with a 25 mm piston, these shocks react quickly to changing road conditions. The deflective disc valving self-adjusts to frequency, ensuring consistent and controlled performance. With a low-friction sealing system and sliding bearings, you'll experience improved feel and responsiveness. Fine-tune your ride with three external rebound adjustment knobs. The stainless steel tie bar ensures durability and strength. These shocks are designed for easy installation and adjustment. Experience the legendary ride quality, hand-made in Sturgis, SD, USA.
Features & highlights
- Experience superior ride comfort and handling with touring-specific coil spring rates.
- Benefit from quick response and improved fluid flow with the 45 mm billet aluminum twin-tube design and 25 mm piston.
- Enjoy consistent performance thanks to the deflective disc valving that self-adjusts to frequency.
- Fine-tune your ride with three external rebound adjustment knobs.
- Ensure long-lasting durability with the stainless steel tie bar construction.
- These shocks are black Type III hard coat anodized for exceptional looks and resistance to wear.
- Easy installation and adjustment make this a straightforward upgrade.
Technical specifications
- Brand: Legend Suspension
- Vendor Part Number: 1310-1974
- Adjustment Type: Adjustable Rebound Damping
- Color/Finish: Black, Anodized
- Duty: Heavy Duty
- Extended Length: 12.25" (311.15 mm)
- Material: Billet Aluminum
- Mounting Position: Rear
- Product Name: Shock Absorber
- Reservoir Location: Internal
- Type: Coilover Twin-Tube
- Units: Pair
Important to know
- Available only in standard length for optimum ride quality and performance.
- Brand
- LEGEND SUSPENSION
- Vendor part number
- 1310-1974
- Color finish
- Black, Anodized
- Product name
- Shock Absorber
- Duty
- Heavy Duty
- Mounting position
- Rear
- Material
- Billet Aluminum
- Type
- Coilover Twin-Tube
- Units
- Pair
