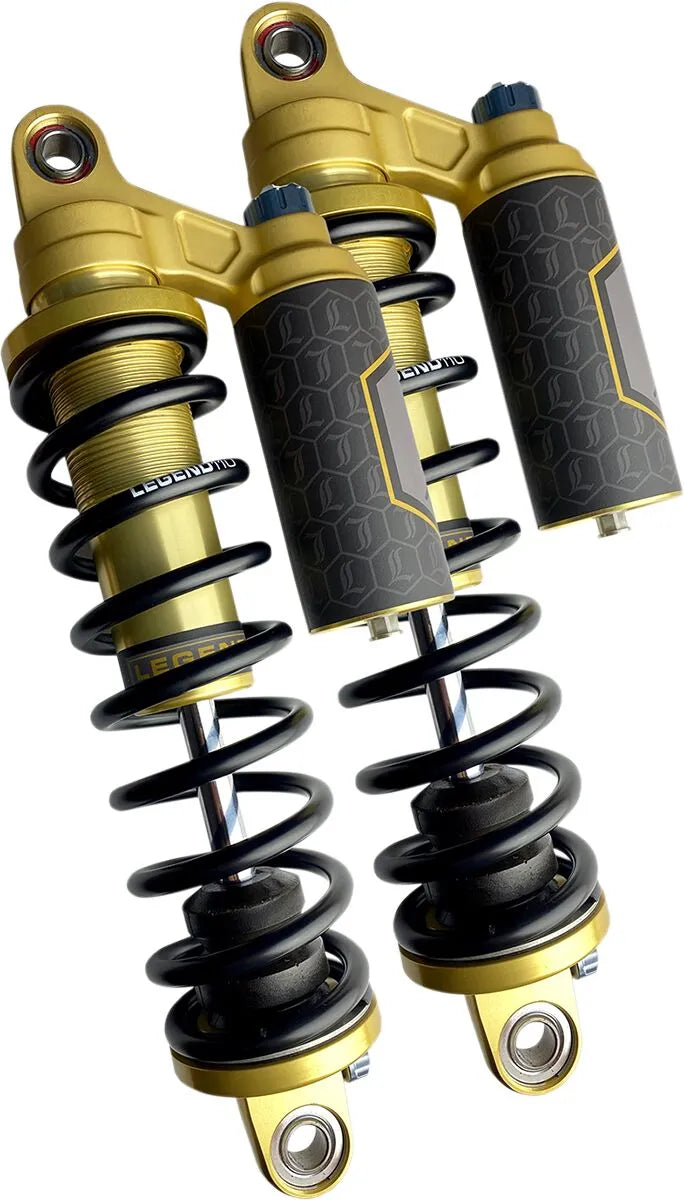

Legend Suspension REVO ARC Heavy Duty Shocks - 14" - Gold - 1310-1921
Product info
- Item number
- 13101921
- Manufacturer number
- 1310-1921
- Position
- Length
- 14" (356 mm)
- Adjustment
- Rebound · Compression
Experience superior ride comfort and enhanced performance with the Legend Suspension Revo Arc Piggyback Coil Suspension. Specifically designed for XL models, this suspension system delivers increased resistance to bottoming, ensuring all-day comfort for touring and aggressive riding alike. Adjustments are made by hand, eliminating the need for tools, so you can fine-tune your ride on the go.
Description
The Legend Revo Arc Piggyback Coil Suspension features a 35 mm monotube construction with deflective disc valve stacks, providing balanced and matched piston and base-valve design optimized for motorcycle applications. The low-friction sealing system and sliding bearings enhance performance and feel, while the independent compression and rebound damping adjusters allow for fast, precise, and repeatable changes to ride comfort and performance with a simple turn of a knob. This system provides optimum rebound and compression performance, adapting to any rider weight, personal ride preference, or riding style. The nitrogen gas bladder design ensures ultra-fast response and stiction-free movement, allowing both light and heavy riders to dial in their preferred ride quality. Proudly made by hand in Sturgis, SD USA, this system offers unparalleled control and comfort.
Features & highlights
- Enjoy superior ride comfort and performance with Legend's touring-specific coil spring rates.
- Fine-tune your ride by hand; no tools are needed for adjustments.
- Achieve easy installation and alignment with spherical bearings on both top and bottom mounting points.
- Experience optimum rebound and compression performance tailored to your weight and riding style.
- Benefit from ultra-fast response and stiction-free movement thanks to the nitrogen gas bladder design.
- Customize your ride quality, from aggressive to casual, based on your personal preferences.
- Proudly made by hand in Sturgis, SD USA, ensuring top-notch quality and craftsmanship.
Technical specifications
- Brand: Legend Suspension
- Color/Finish: Gold
- Duty: Heavy Duty
- Extended Length: 14.00" (356.00 mm)
- Mounting Position: Rear
- Product Name: Shock Absorber
- Reservoir Location: Piggyback
- Units: Pair
Important to know
Available in Black, Gold, and Clear Type III hard coat anodize.
- Brand
- LEGEND SUSPENSION
- Vendor part number
- 1310-1921
- Color finish
- Gold
- Product name
- Shock Absorber
- Duty
- Heavy Duty
- Mounting position
- Rear
- Units
- Pair
