Magnum Shielding Caliber Ape Hanger Kit - 1-1/4" - Chrome - 38825-112

Upgrade your motorcycle with the Magnum Shielding 1-1/4" Caliber Handlebar Installation Kit. This kit provides everything needed to install Magnum Caliber handlebars, ensuring a seamless and high-quality upgrade for your ride. Experience enhanced control, superior aesthetics, and long-lasting durability with this complete handlebar solution.

Description

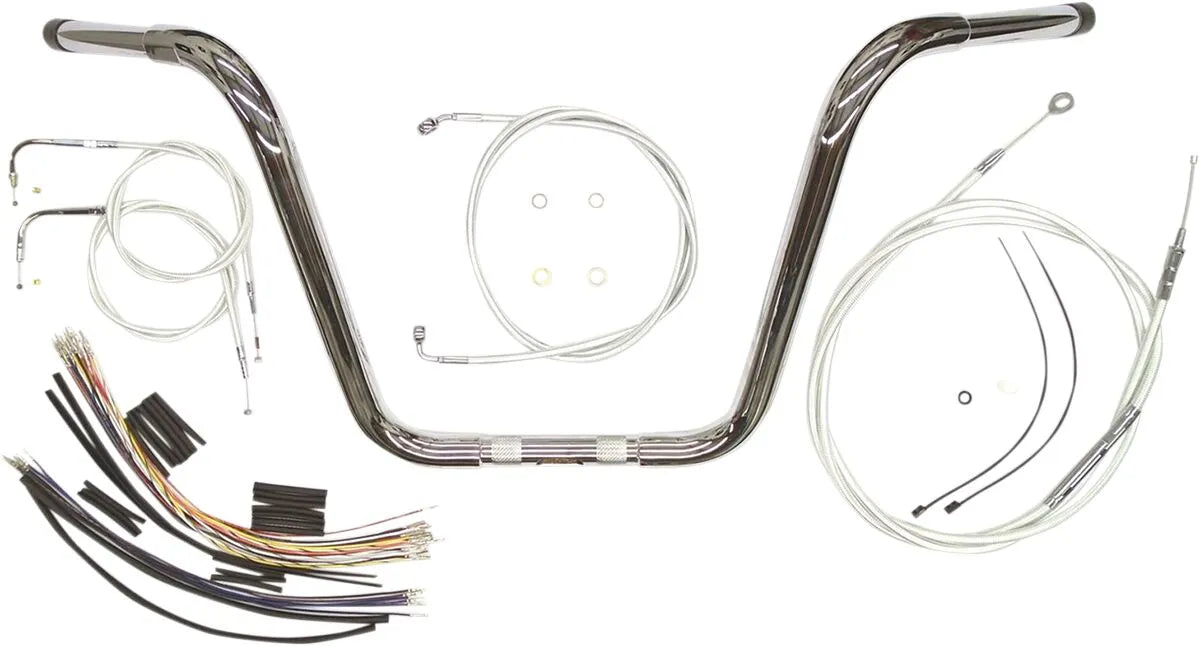

The Magnum Shielding 1-1/4" Caliber Handlebar Installation Kit is engineered for riders seeking a complete and reliable handlebar upgrade. This comprehensive kit includes Magnum 1-1/4" Caliber handlebars, renowned for their top-tier construction and striking appearance. The handlebars feature machined control mounts for enhanced precision and a high-luster finish, ensuring an eye-catching look. Designed to work with standard controls, including hydraulic clutches and electric throttle, these handlebars are preloaded with E-Z pull-thru sleeving, simplifying the wiring process. The kit includes throttle and idle cables or throttle-by-wire extensions, a clutch cable or hydraulic clutch line, brake lines, copper crush washers, hardware, and necessary switch wiring or turn signal extensions. All cables are engineered for low effort and high efficiency, meeting or exceeding OE specifications. For dual disc models, an all-brazed manifold eliminates leaks and alignment issues, ensuring reliable performance. Assembled in the USA, this kit delivers quality and performance you can trust. Note that Caliber Handlebars have a 1" diameter center section and fit 1" risers. Models originally equipped with handlebars that have a center section diameter larger than 1" will require changing the risers to a 1" ID version.

Features & highlights

• Complete Handlebar Kit: Includes everything needed for a seamless installation.
• Premium Caliber Handlebars: Manufactured with high-quality construction and a high-luster finish.
• Machined Control Mounts: Ensures precise fit and reliable performance.
• E-Z Pull-Thru Sleeving: Simplifies internal wiring for a hassle-free installation.
• Low Effort Cables: High-efficiency design that meets or exceeds OE specifications.
• All Brazed Manifold: Eliminates leaks and alignment issues on dual disc models.
• Assembled in the USA: Ensuring top-quality and reliable performance.

Technical specifications

• Brand: MAGNUM SHIELDING
• Product Name: Handlebar Installation Kit
• Handlebar Diameter: 1-1/4" (32 mm)
• Clamping Diameter: 1" (25.4 mm)
• Controls Diameter: 1" (25.4 mm)
• Center Width: 7-3/4" (19.5 cm)
• End Rise: 11" (28 cm)
• Rise: 12" (30.5 cm)
• Width: 34" (86.5 cm)
• Pullback/Sweep: 8" (20.5 cm)
• Material: Steel
• Finish: Chrome
• Features: Pre-Drilled, Notched for Throttle-By-Wire, For Non-ABS Models, Knurled Center
• Type/Bend: Ape Hanger

Important to know

Handlebars have a 1" diameter center section and fit 1" risers. Models originally equipped with handlebars that have a center section diameter larger than 1" will require changing the risers to a 1" ID version. Examples would be, but not limited to FLSTF, FLSTFB and CVO models. Please check before ordering.
