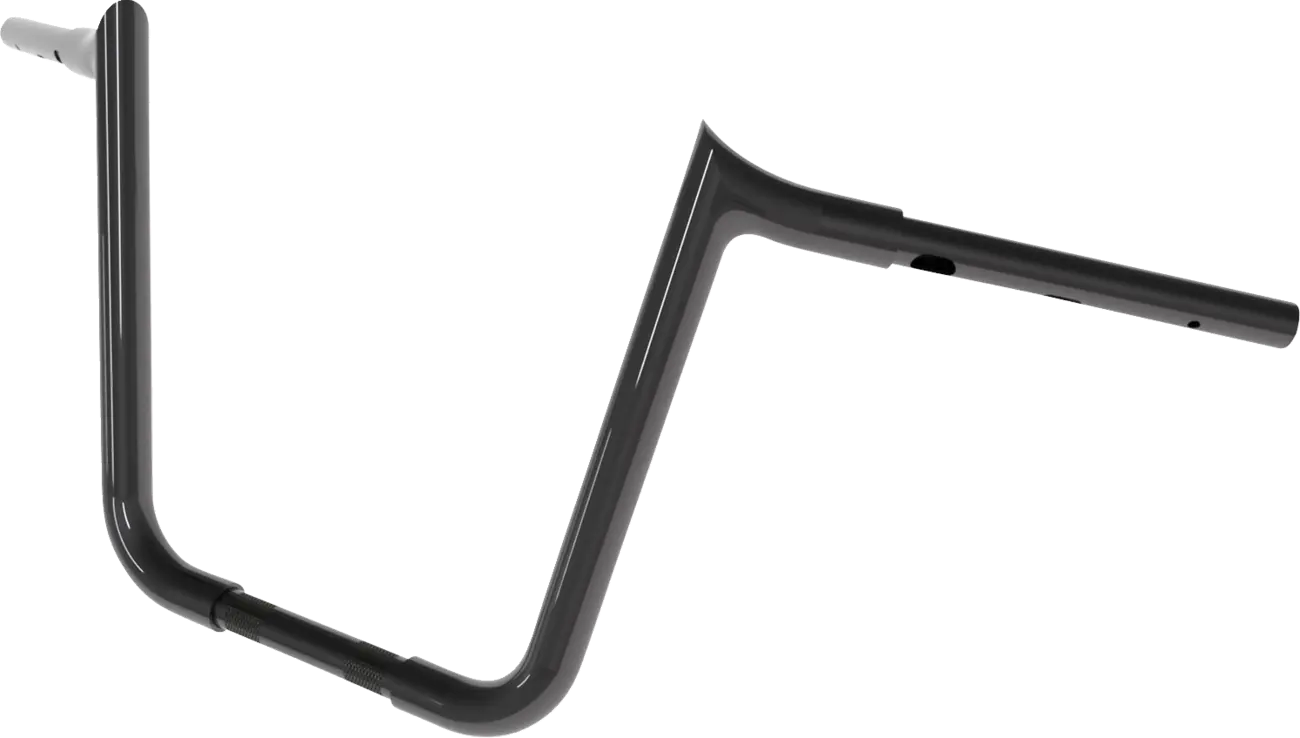

Magnum Shielding Viking Ape Hanger - 1-1/4" - 16" Rise - 4HB-2316

Upgrade your ride with the Magnum Shielding 1-1/4" Viking Handlebar. This handlebar combines innovative design with high-quality construction, providing both style and functionality for motorcycle enthusiasts and professionals.

Description

The patented Viking Handlebar features an internal design that simplifies the installation of complete wiring harnesses without compromising its sleek appearance. The unique design creates ample space for the entire wiring harness, including factory vinyl covering, terminal connections, and shrink sleeves, to pass through effortlessly, eliminating chafing. Magnum Shielding employs a specialized flaring process to create a burr-free internal radius, offering additional clearance within the handlebar's peak. For further convenience, Magnum preloads the bars with E-Z pull-thru plastic woven sleeving, streamlining the wiring process. The 1-1/4" Viking handlebar is manufactured with precision, featuring smooth, round CNC mandrel bends, machined control mounts, burr-free internal wiring holes, electronic throttle control slots, and high-luster finishes for a superior look.

Features & highlights

• Simplified Wiring: Patented internal design allows easy installation of complete wiring harnesses, preventing chafing.
• Enhanced Clearance: Burr-free internal radius provides extra space within the handlebar's peak.
• E-Z Pull-Thru Sleeving: Preloaded plastic woven sleeving simplifies the wiring process.
• Premium Construction: CNC mandrel bends and machined control mounts ensure quality and durability.
• High-Luster Finish: Provides an unsurpassed appearance, enhancing your motorcycle's aesthetics.
• Knurled Center: Features 3-1/2" on-center knurling for secure mounting.

Technical specifications

• Brand: Magnum Shielding
• Product Name: Handlebar
• Type/Bend: Viking, Ape Hanger
• Handlebar Diameter: 1-1/4" (32 mm)
• Clamping Diameter: 1" (25.4 mm)
• Base Color: Black
• Finish: Gloss
• Material: Steel
• Width: 37-1/2" (95.5 cm)
• Height: 16" (40.5 cm)
• Center Width: 8" (20.5 cm)
• Clamping Width: 3-1/2" (88.9 mm)
• Pullback/Sweep: 6" (15 cm)
• Controls Diameter: 1" (25.4 mm)
• Features: For Hydraulic Clutch, Throttle-By-Wire Sensor in Control Housing, Pre-Drilled, Knurled Center

Important to know

These Viking handlebars have a 1" diameter center section and fit 1" risers. Models originally equipped with handlebars larger than 1" will require changing the risers to a 1" ID version. Not for use with stock risers or handlebar clamp/gauge mount clamp on 883C and 1200C models.
