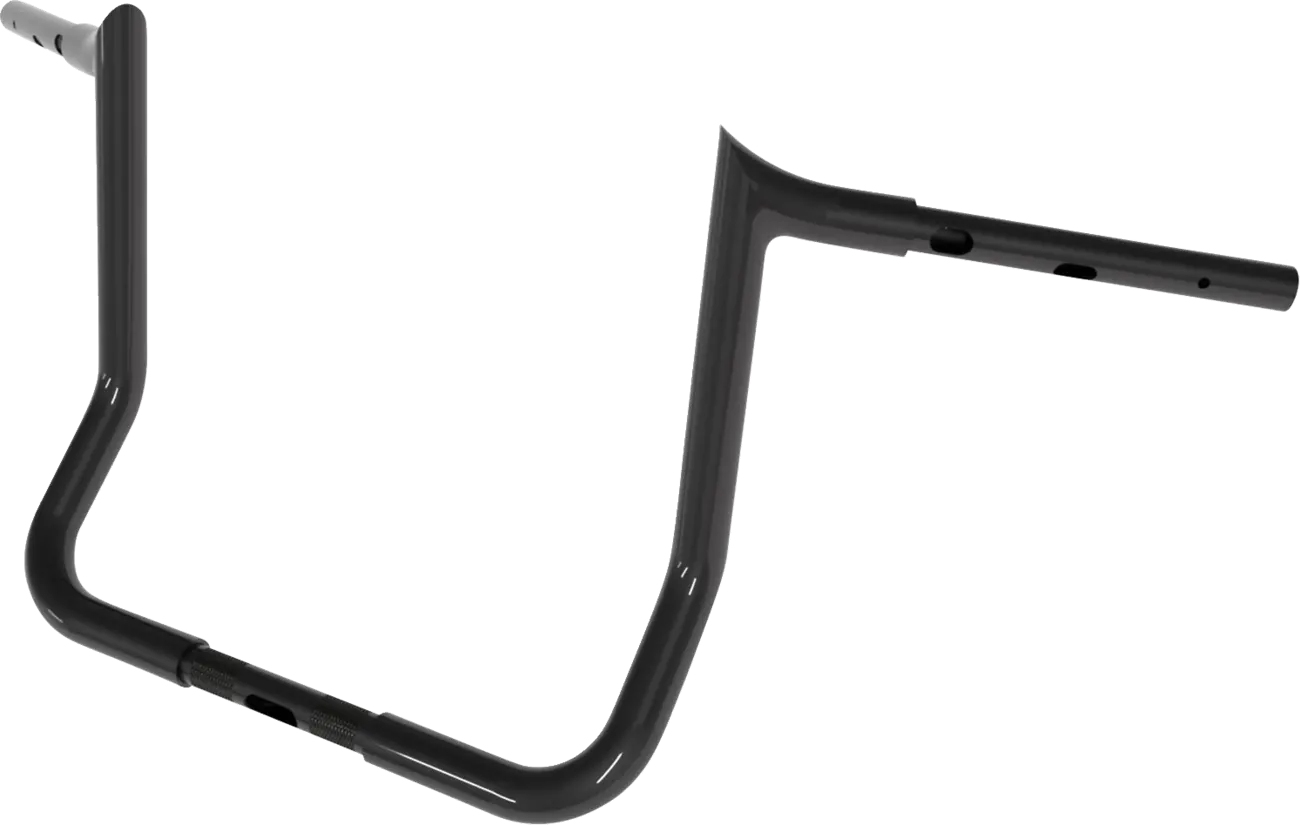

Magnum Shielding 1-1/4" Viking Handlebar

Upgrade your ride with the Magnum Shielding 1-1/4" Viking Handlebar. This handlebar combines superior craftsmanship with innovative design to provide both style and functionality. Experience enhanced control and a custom look with this premium handlebar.

Description

The Magnum Shielding Viking Handlebar features a patented internal design that simplifies the installation of complete wiring harnesses without compromising the handlebar's clean aesthetic. The innovative design provides ample space, allowing the entire wiring harness—including factory vinyl covering, terminal connections, and shrink sleeves—to pass through effortlessly, preventing chafing. Magnum's unique flaring process creates a burr-free internal radius, offering additional clearance within the handlebar's peak. Wiring installations are further simplified with pre-loaded E-Z pull-thru plastic woven sleeving. Simply insert the wiring harness into the sleeving and pull it through.

Manufactured with high-quality construction, the Viking Handlebar includes smooth, round CNC mandrel bends and machined control mounts (not swaged), burr-free internal wiring holes, electronic throttle control slots, and a high-luster black gloss finish for an exceptional appearance. The handlebar has a 1-1/4" diameter, 1” diameter center sections, and 3-1/2” on-center knurling, ensuring compatibility with standard controls, including hydraulic clutches. Transform your motorcycle's look and feel with the Magnum Shielding Viking Handlebar.

Features & highlights

• Simplified Wiring: Patented internal design for easy wiring harness installation.
• Chafe-Free Design: Generous clearance prevents wiring damage.
• Easy Installation: Pre-loaded E-Z pull-thru sleeving for quick wiring.
• Premium Construction: CNC mandrel bends and machined control mounts.
• High-Quality Finish: Black gloss finish for an unsurpassed appearance.
• Hydraulic Clutch Compatible: Works with standard controls, including hydraulic clutches.
• Enhanced Aesthetics: Improves motorcycle's look and feel.

Technical specifications

• Brand: Magnum Shielding
• Product Name: Handlebar
• Type/Bend: Viking, Ape Hanger
• Handlebar Diameter: 1-1/4" (32 mm)
• Clamping Diameter: 1" (25.4 mm)
• Base Color: Black
• Finish: Gloss
• Color/Finish: Black, Gloss
• Center Width: 12" (30.5 cm)
• Width: 36-1/4" (92 cm)
• End Rise: 12" (30.5 cm)
• Pullback/Sweep: 10" (25.5 cm)
• Clamping Width: 3-1/2" (88.9 mm)
• Material: Steel
• Features: For Hydraulic Clutch, Throttle-By-Wire Sensor in Control Housing, Pre-Drilled, Knurled Center

Important to know

Not for use with stock risers or handlebar clamp/gauge mount clamp on 883C and 1200C models. Viking handlebars have a 1" diameter center section and fit 1" risers. Models originally equipped with handlebars larger than 1" will require changing the risers to a 1" ID version.
