Magnum Shielding Bagger Handlebar Kit - 1-1/4" - 12" Rise - 48830-412

Upgrade your motorcycle with the Magnum Shielding 1-1/4" Viking Handlebar Installation Kit. This complete kit provides everything you need for a seamless handlebar upgrade, including the aggressive-looking Viking handlebars and matching braided cables and brake lines. Experience enhanced comfort and style with this premium handlebar kit.

Description

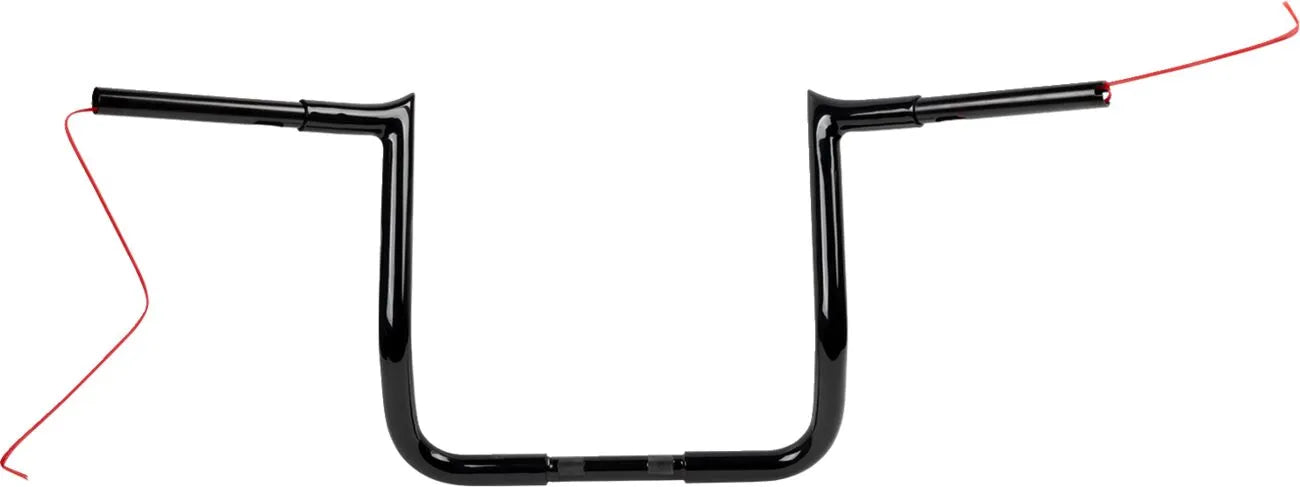

This Magnum Shielding handlebar kit features patented Viking 1-1/4" handlebars designed for easy internal wiring harness installation, maintaining a clean, custom aesthetic. The innovative design provides ample room for the complete wiring harness, including factory vinyl covering, terminal connections, and shrink sleeves, eliminating chafing. A unique flaring process creates a burr-free internal radius with extra clearance in the handlebar's peak. Pre-loaded E-Z pull-thru plastic woven sleeving simplifies wiring. These 1-1/4" diameter handlebars are CNC mandrel bent for precision, incorporating engineered wrist angles for superior riding comfort. The 1" diameter center sections feature 3-1/2" on-center knurling and machined control mounts for secure installation. Compatible with standard controls, including hydraulic clutches, these handlebars offer both style and functionality.

Features & highlights

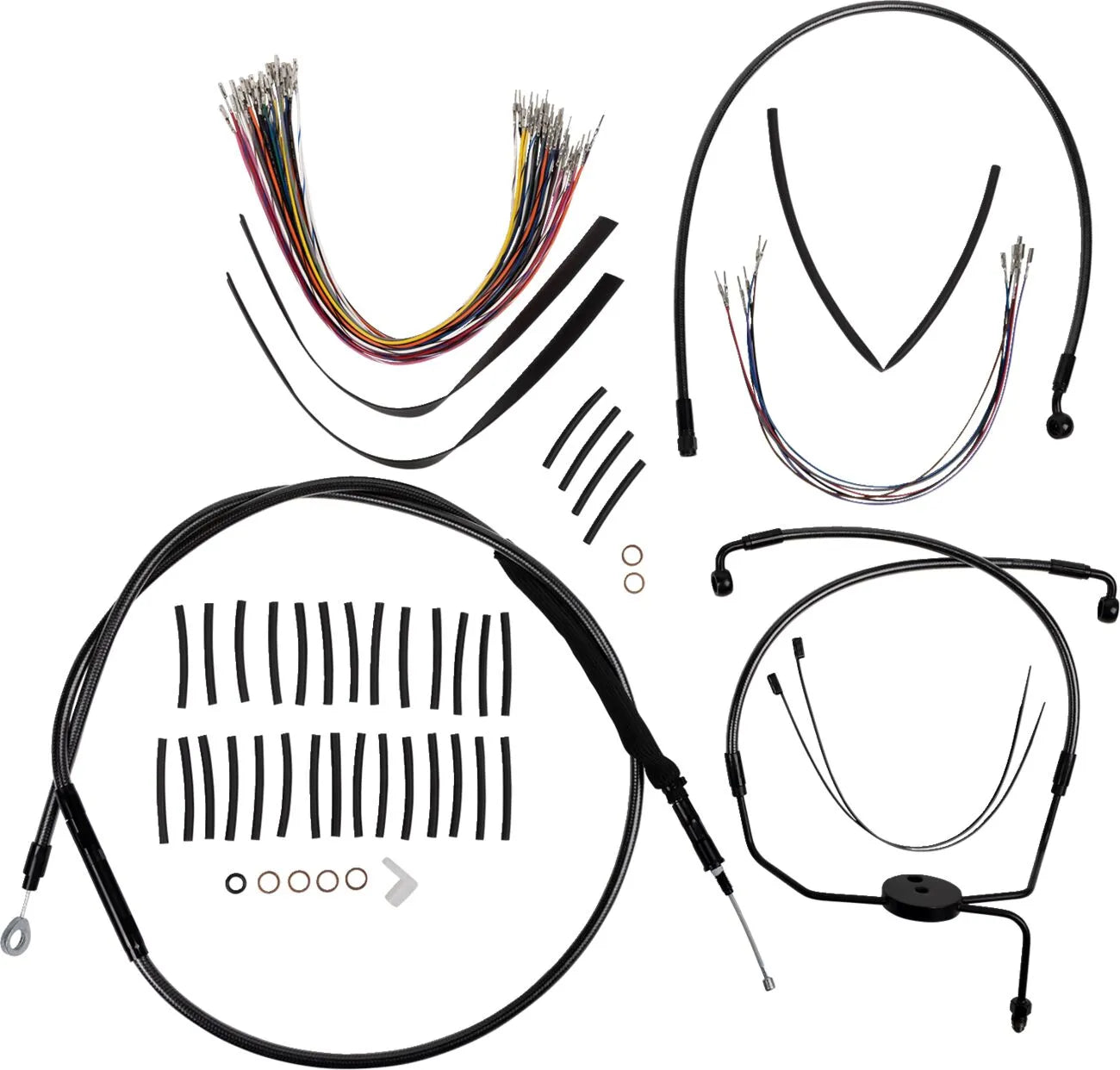

• Complete handlebar kit includes Viking handlebars, cables, and brake lines.
• Patented internal design simplifies wiring harness installation.
• CNC mandrel bent for precise fit and riding comfort.
• E-Z pull-thru sleeving pre-loaded for easy wiring.
• Aggressive Viking handlebar design enhances motorcycle aesthetics.
• Compatible with standard controls, including hydraulic clutch systems.
• Made in the USA with high-quality construction and materials.

Technical specifications

• Brand: MAGNUM SHIELDING
• Handlebar Type: Viking, Bagger
• Handlebar Diameter: 1-1/4" (32 mm)
• Clamping Diameter: 1" (25.4 mm)
• Center Width: 12" (30.5 cm)
• Width: 32-1/4" (82 cm)
• End Rise: 12" (30.5 cm)
• Pullback/Sweep: 10-1/2" (26.5 cm)
• Clamping Width: 3-1/2" (88.9 mm)
• Material: Steel
• Finish: Gloss Black
• Features: For Non-ABS Models, For Hydraulic Clutch, Pre-Drilled, Knurled Center

Important to know

• Cable and line lengths are based on 2" risers, except for touring models.
• Viking Bagger and Ape Hanger handlebars have a 1" diameter center section and fit 1" risers.
• Models originally equipped with handlebars larger than 1" will require changing the risers to a 1" ID version.
